Refrigerant Volume

REFRIGERANT VOLUME INSPECTION
1. Set Vehicle In These Conditions:
a. Run engine at approx. 1.500 rpm
b. Fully open the doors

2. Set A/C Control Assembly In These Conditions:
a. Blower switch "HI"
b. Air inlet control lever RECIRC
c. A/C switch ON

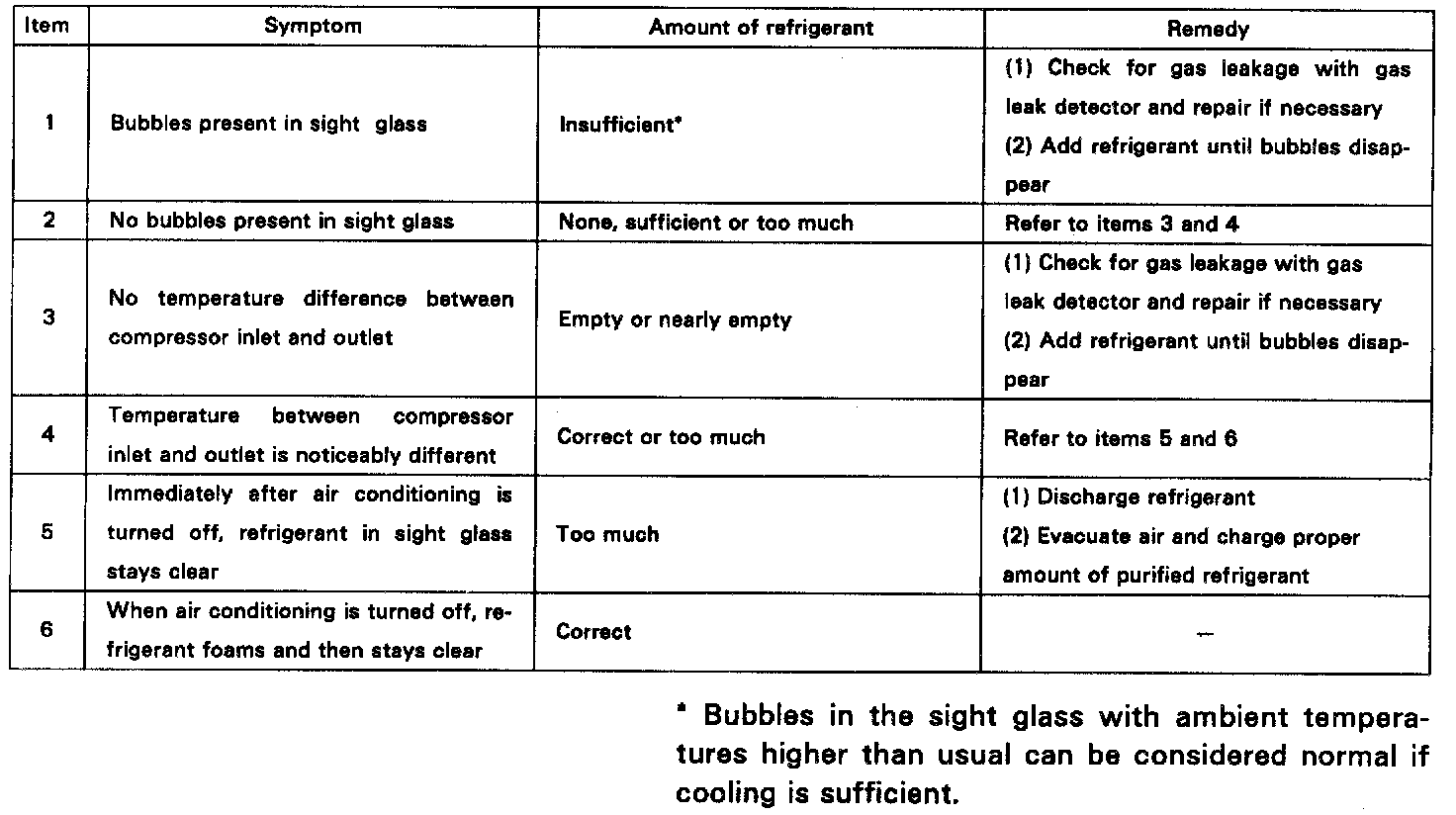

3. Inspect Amount Of Refrigerant

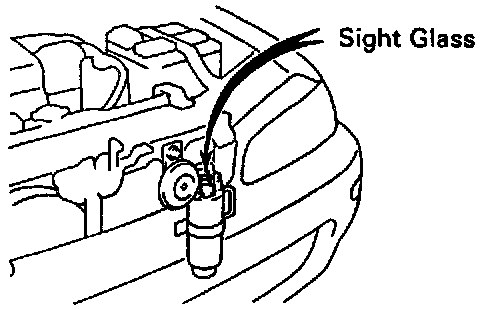

Observe the sight glass on the liquid tube.


REFRIGERANT CHARGE VOLUME
Specified amount: 700 ± 50 g (24.69 ± 1.76 oz.)
