Engine Main Relay
Engine Main Relay

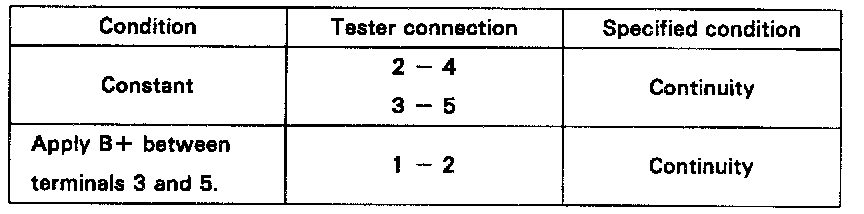

Inspect Engine Main Relay (Marking: Main) Continuity
Check the relay in the same way for
heater main relay
.
If continuity is not as specified, replace the relay.
