Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Rear
Rear

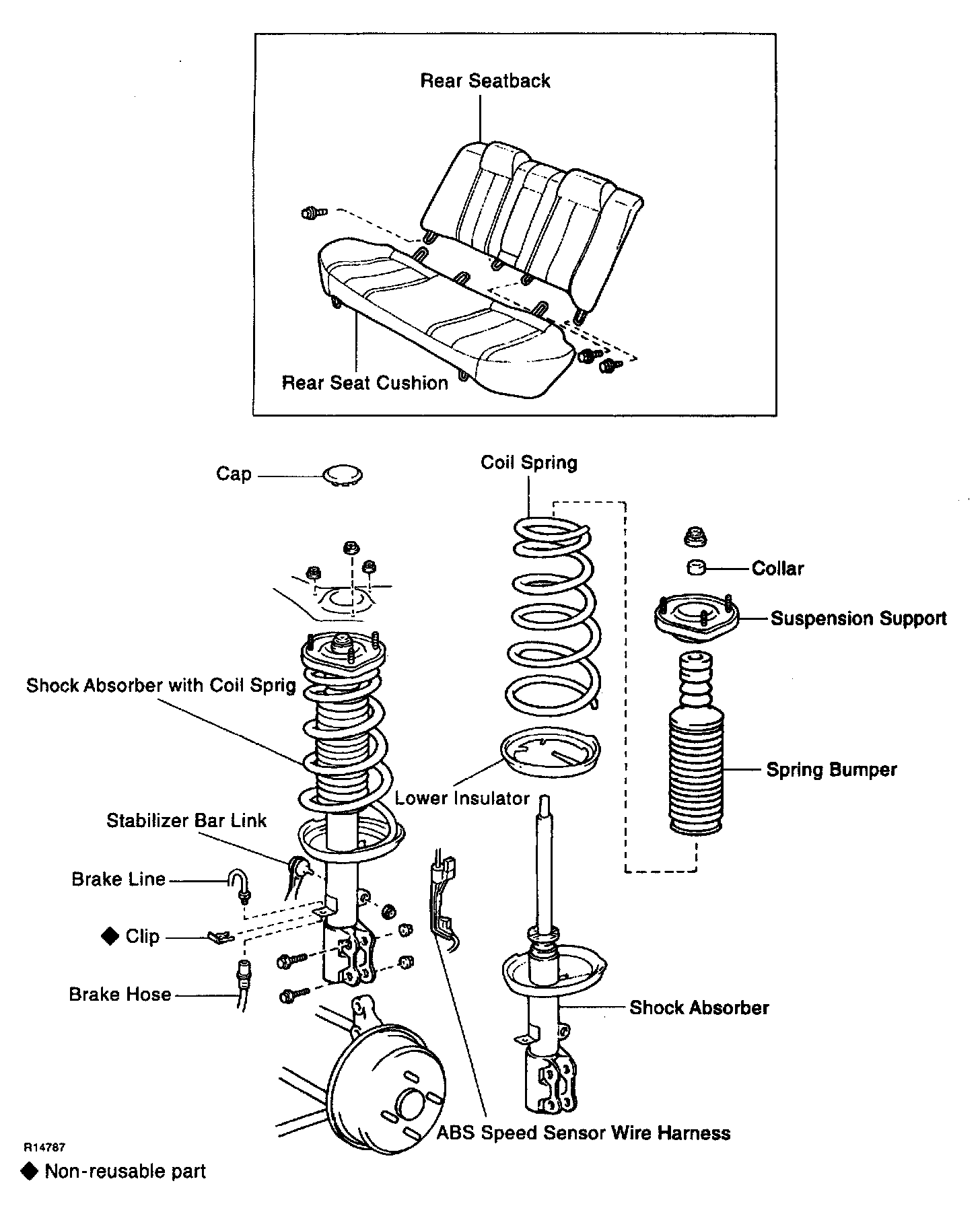

REAR SHOCK ABSORBER:

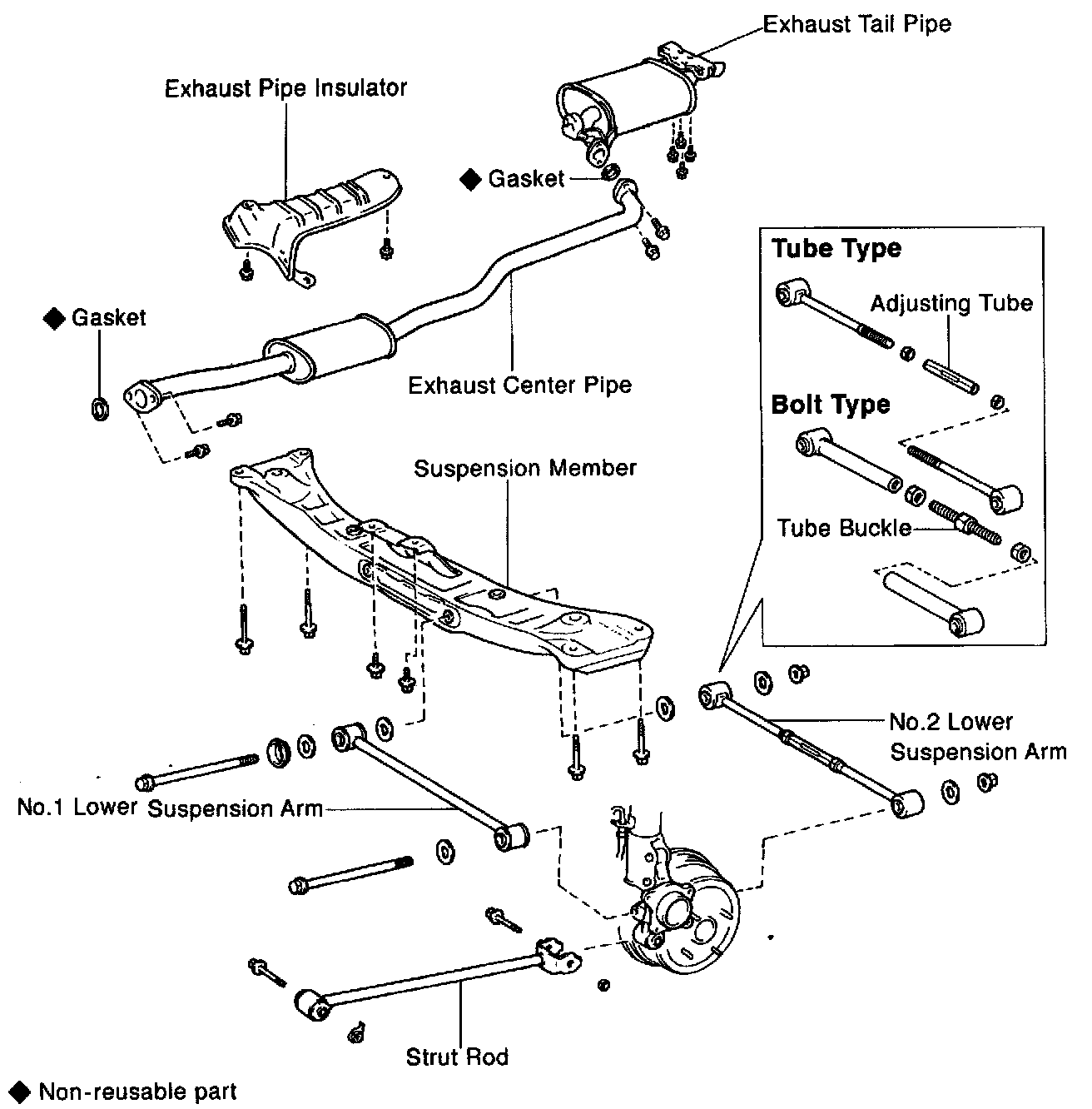

LOWER SUSPENSION ARM AND STRUT ROD:

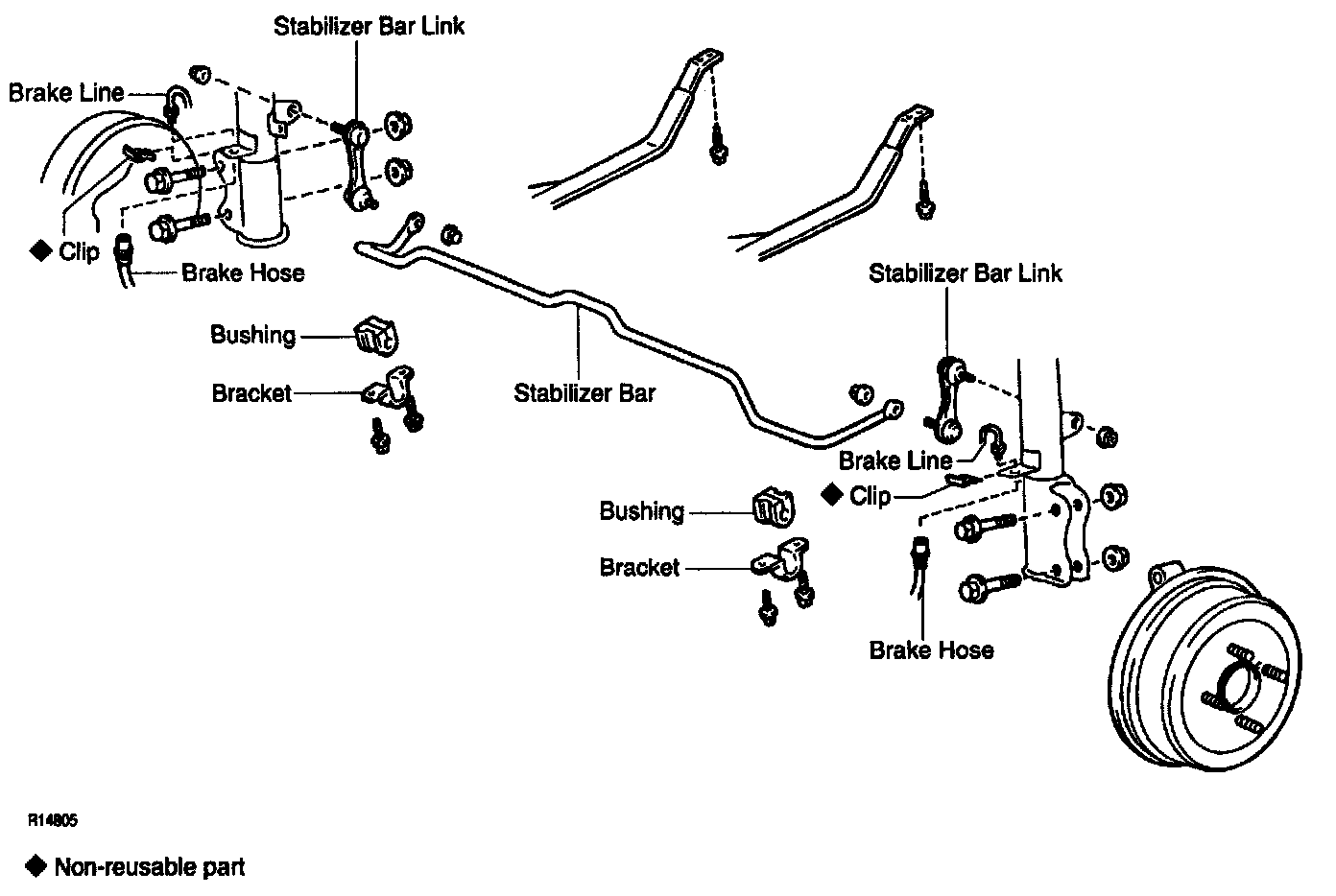

STABILIZER BAR:
