Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Front
Front

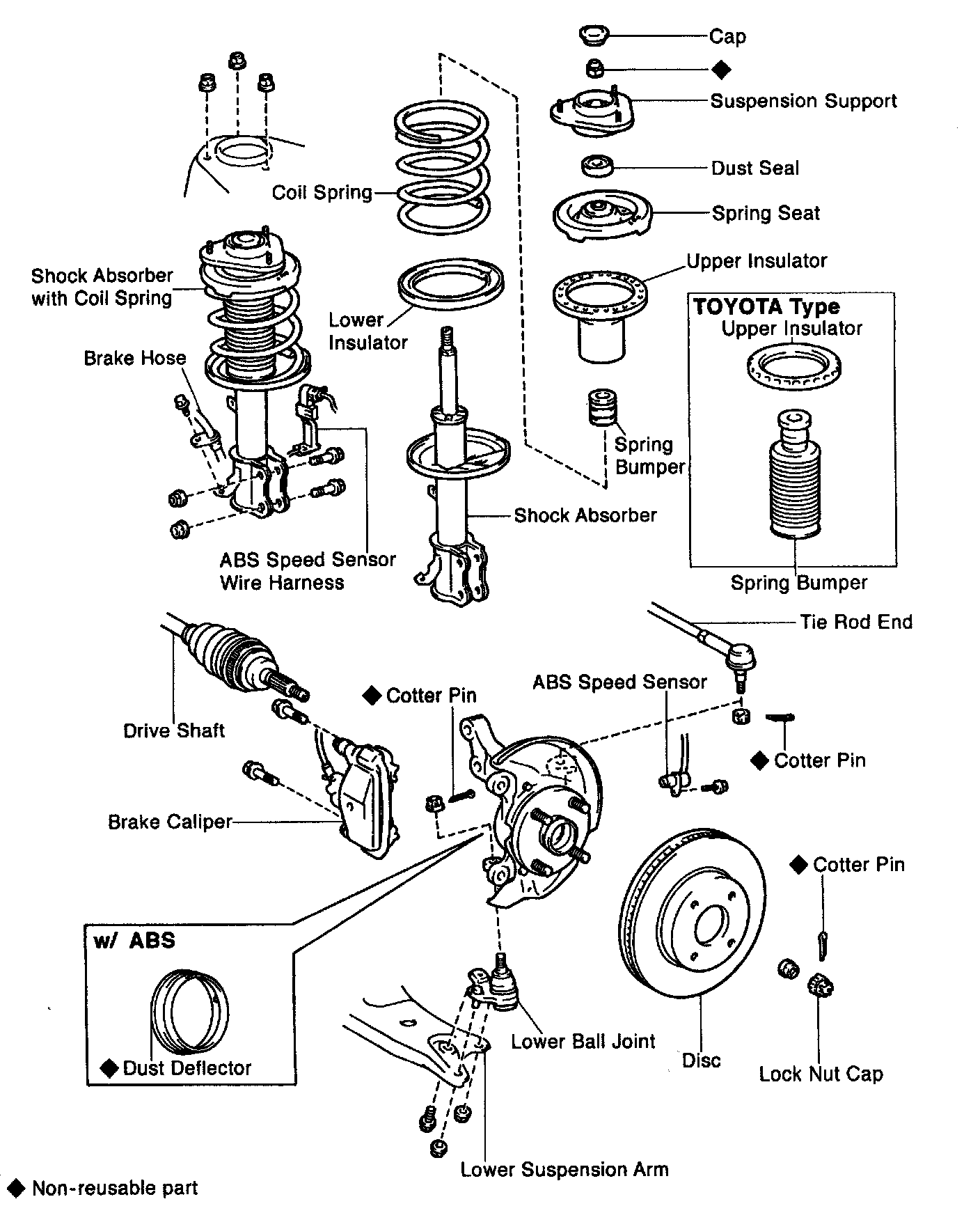

FRONT SHOCK ABSORBER:
LOWER SUSPENSION ARM:
