Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Control (A/T)
Engine Control (A/T)

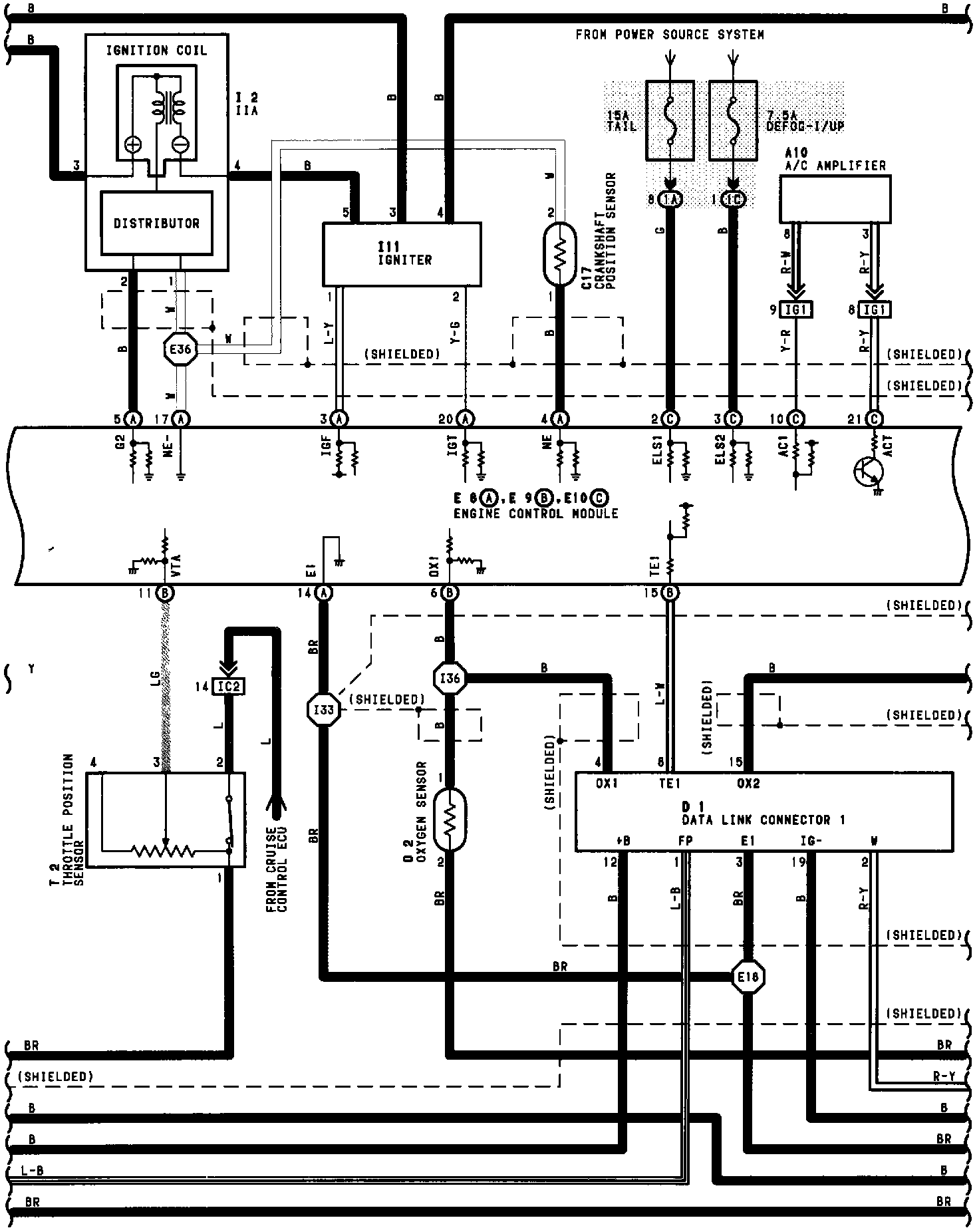

Engine Control A/T (Part 1 Of 4):

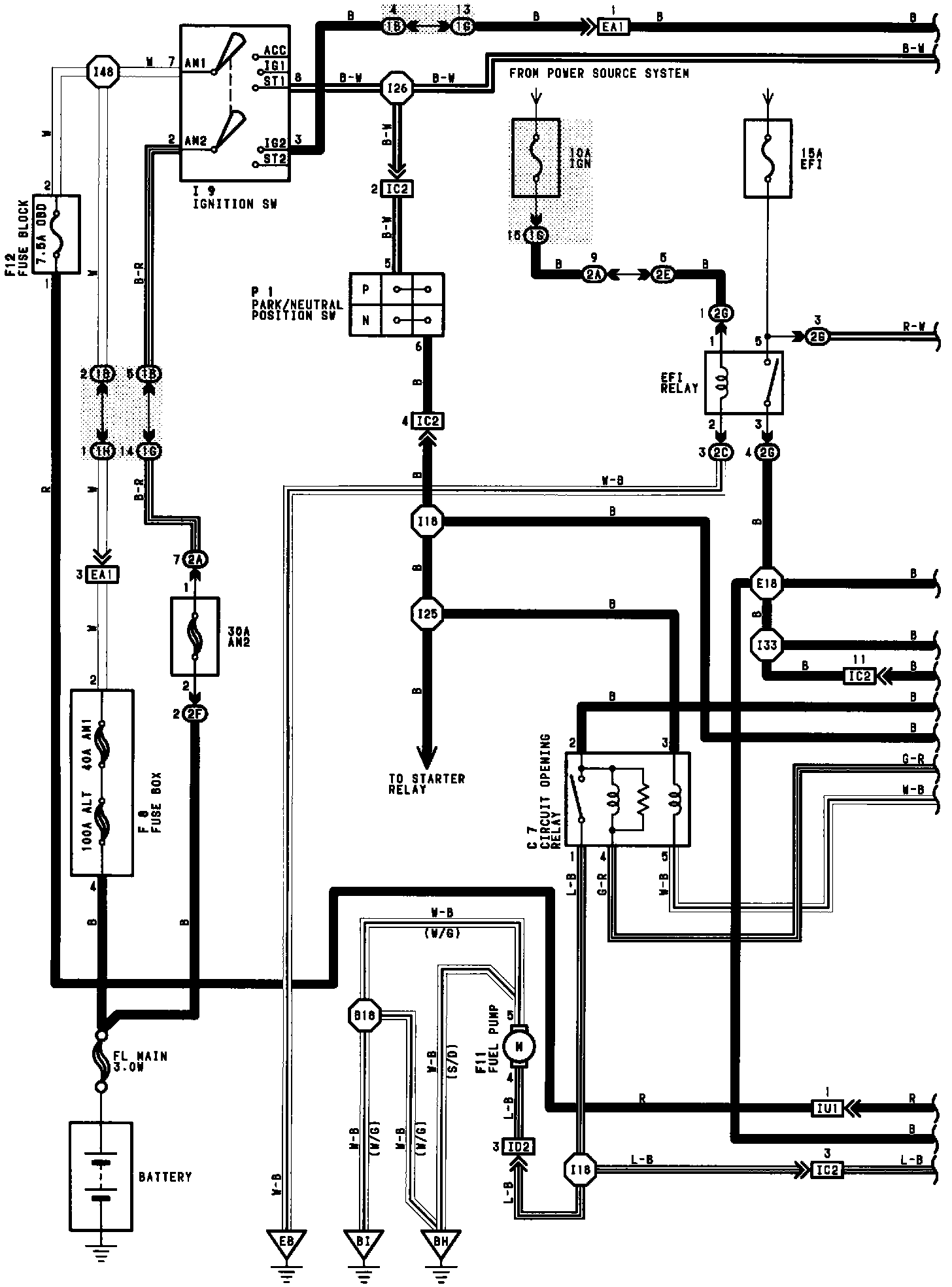

Engine Control A/T (Part 2 Of 4):

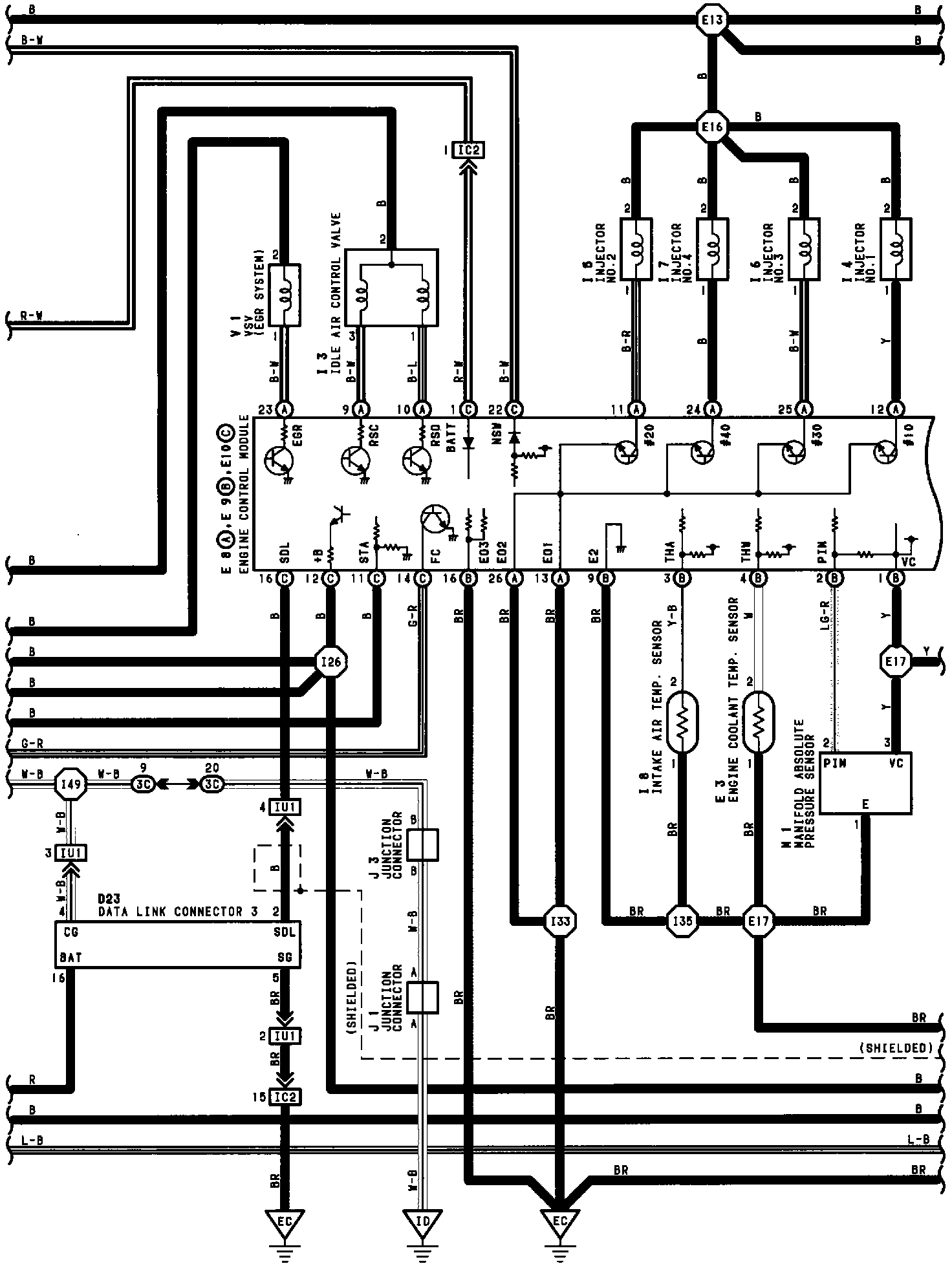

Engine Control A/T (Part 3 Of 4):

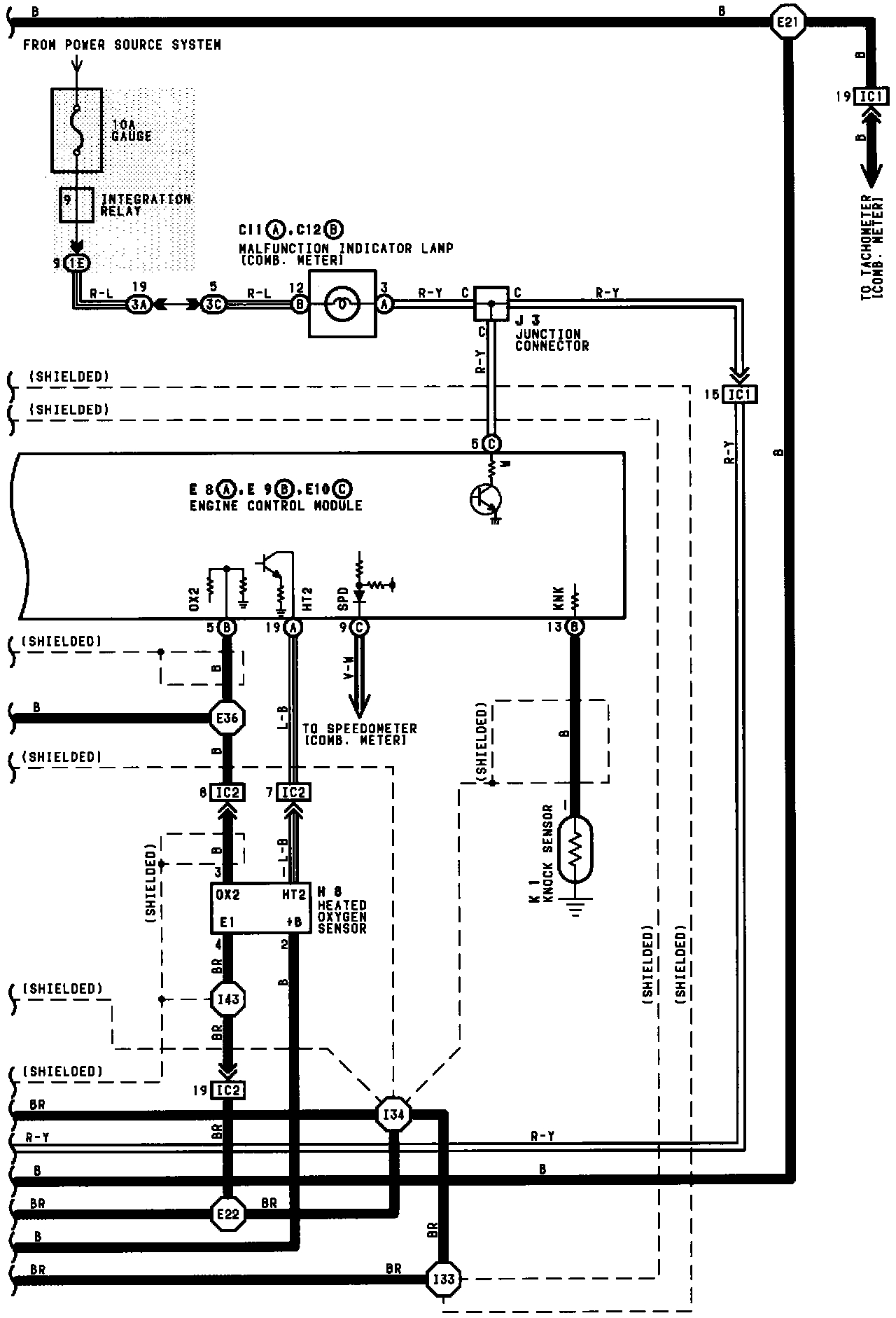

Engine Control A/T (Part 4 Of 4):
