Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
Air Bag Systems

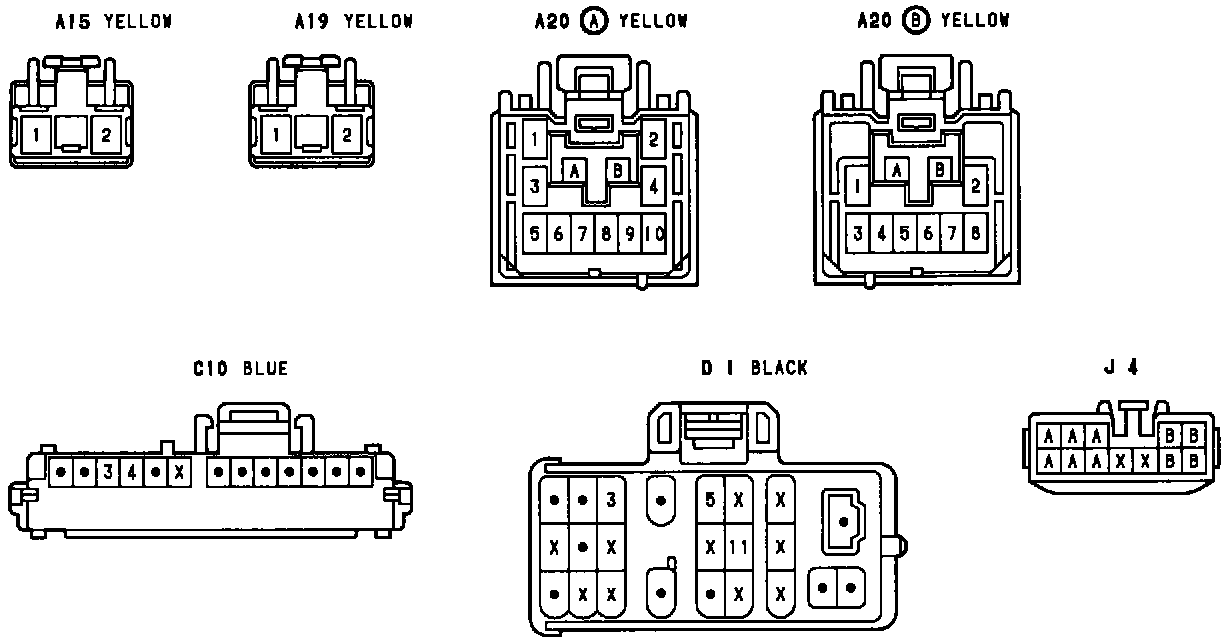

SRS (Supplemental Restraint System)-Connectors:
