Corolla Sedan L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment

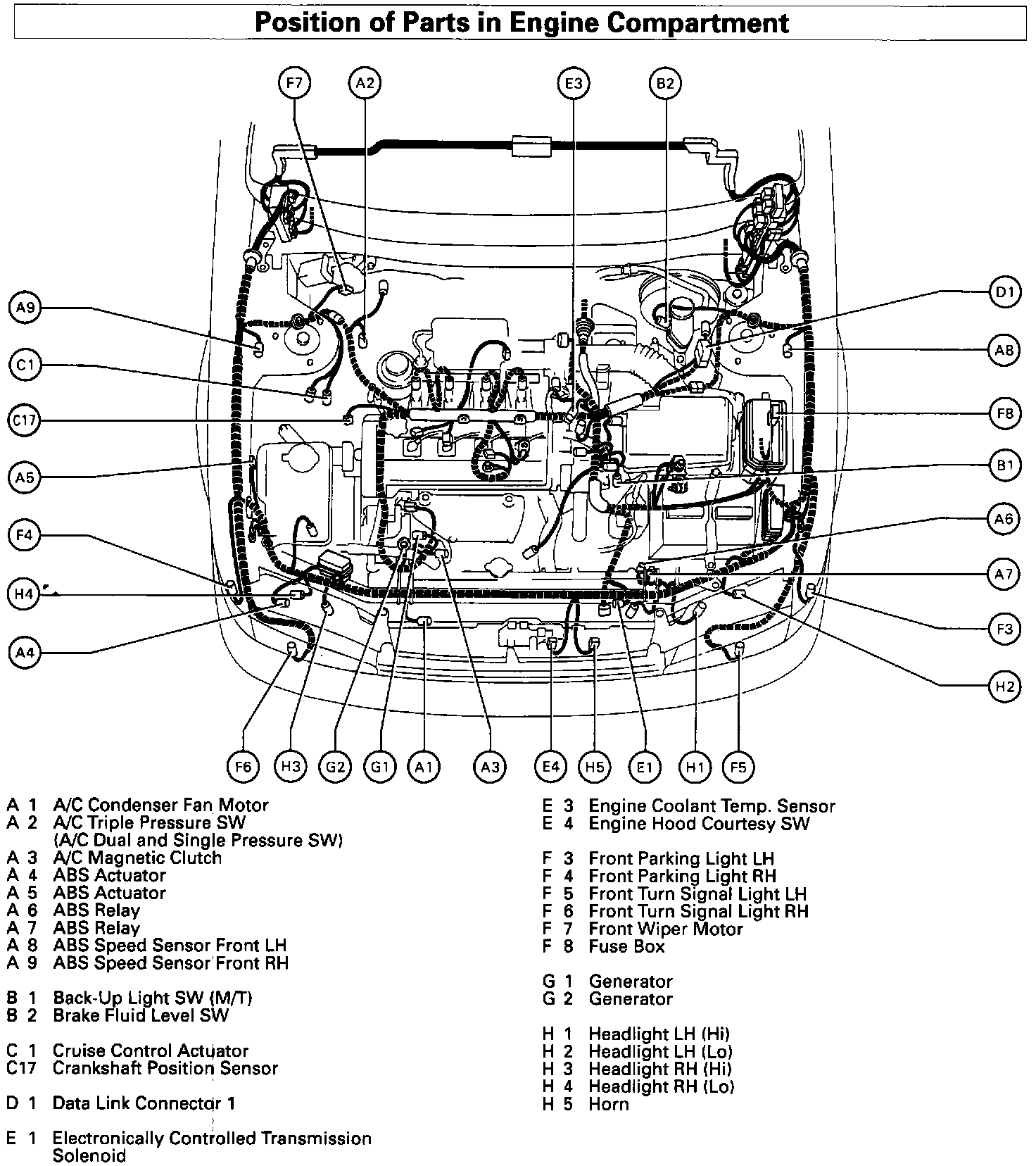

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 28):

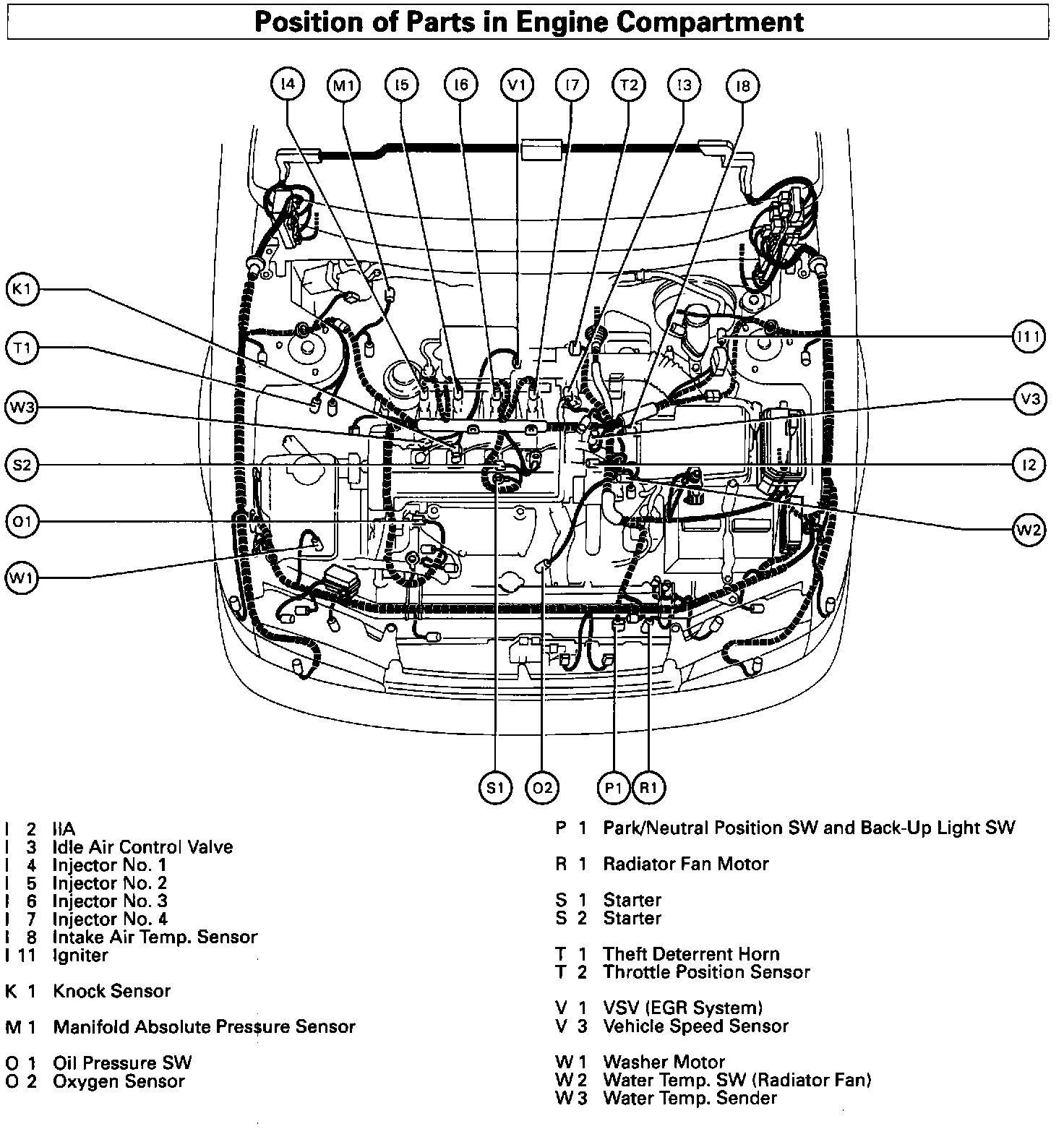

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 29):
