Description of On-Board Diagnostics
>>
Fail Safe Operation
Fail Safe Operation

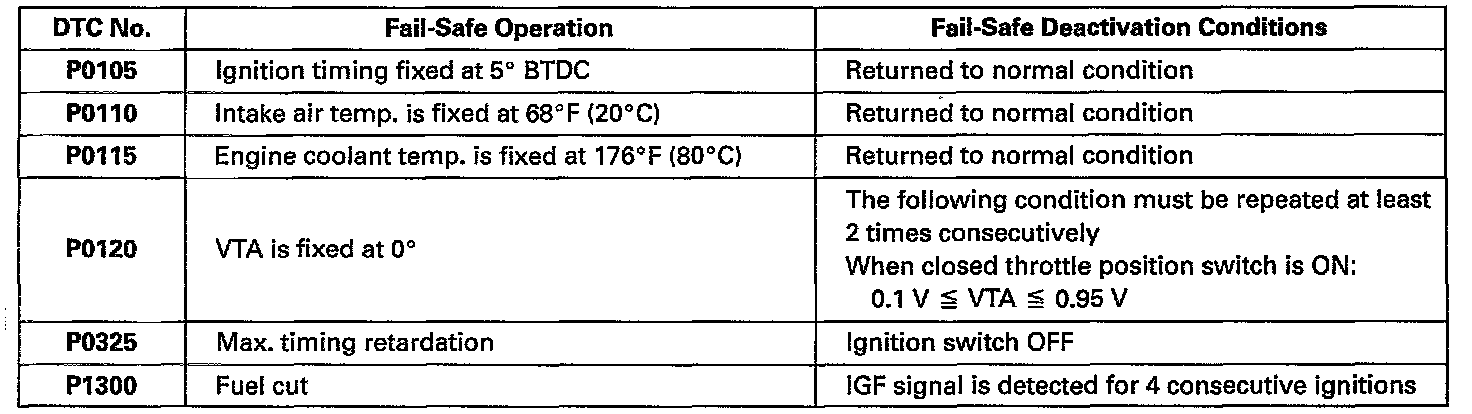

If any of the above codes are recorded, the ECM enters fail-safe mode.
