Convertible

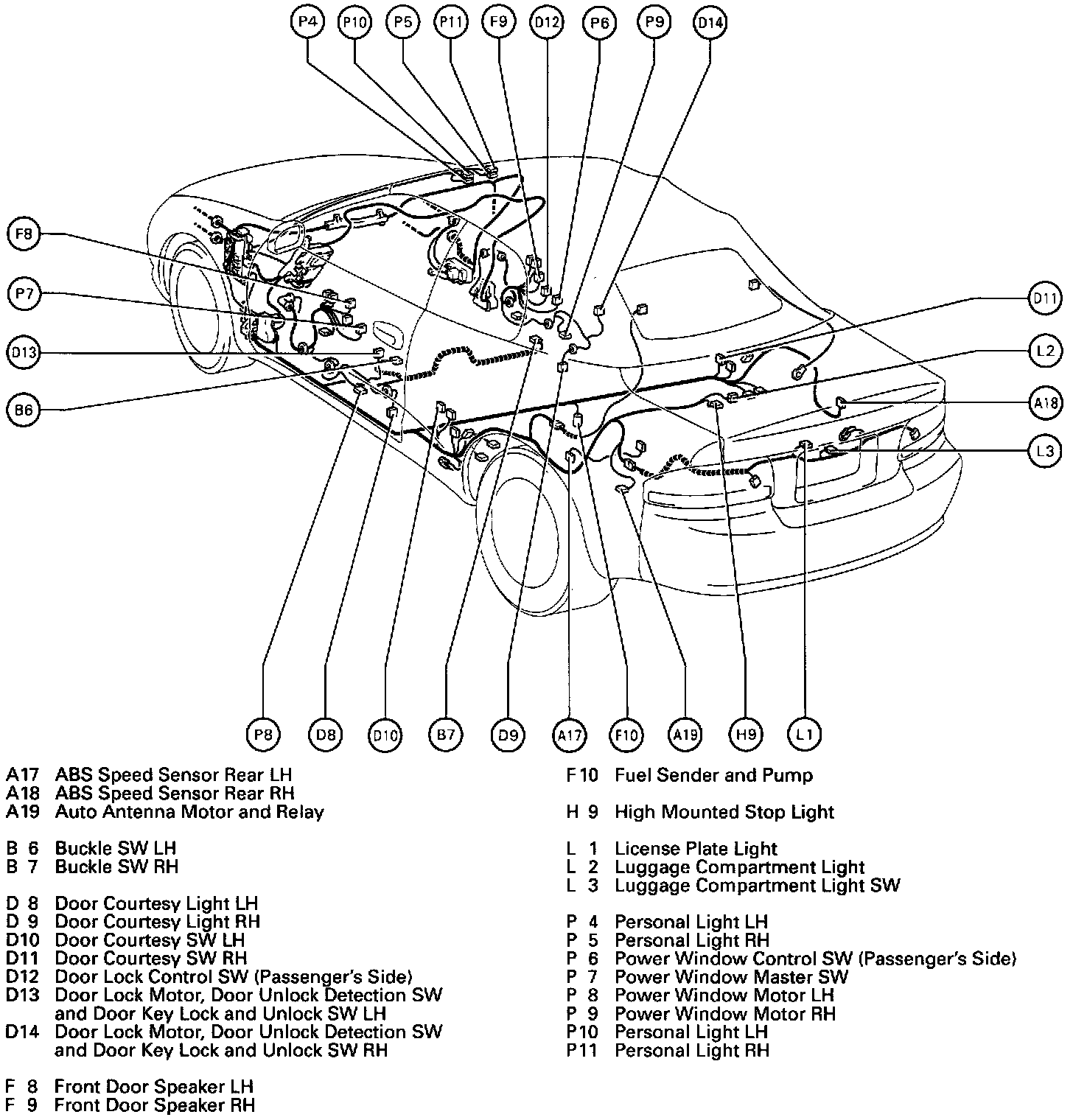

Position Of Parts In Body Convertible (Part 1 Of 2) (Fig 36):

A17 ABS Speed Sensor Rear LH
A18 ABS Speed Sensor Rear RH
A19 Auto Antenna Motor and Relay

B 6 Buckle SW LH
B 7 Buckle SW RH

D 8 Door Courtesy Light LH
D 9 Door Courtesy Light RH
D10 Door Courtesy SW LH
D11 Door Courtesy SW RH
D12 Door Lock Control SW (Passenger's Side)
D13 Door Lock Motor, Door Unlock Detection SW
and Door Key Lock and Unlock SW LH
D14 Door Lock Motor, Door Unlock Detection SW
and Door Key Lock and Unlock SW RH

F 8 Front Door Speaker LH
F 9 Front Door Speaker RH
F10 Fuel Sender and Pump

H 9 High Mounted Stop Light

L 1 Licence Plate Light
L 2 Luggage Compartment Light
L 3 Luggage Compartment Light SW

P 4 Personal Light LH
P 5 Personal Light RH
P 6 Power Window Control SW (Passenger's Side)
P 7 Power Window Master SW
P 8 Power Window Motor LH
P 9 Power Window Motor RH
P10 Personal Light LH
P11 Personal Light RH

Position Of Parts In Body Convertible (Part 2 Of 2) (Fig 37):

Q 3 Quarter Power Window Motor LH
Q 4 Quarter Power Window Motor RH

R 7 Rear Combination Light LH
R 8 Rear Combination Light RH
R 9 Rear Speaker LH
R10 Rear Speaker RH
R11 Rear Window Defogger (+)
R12 Rear Window Defogger (-)
R14 Remote Control Mirror LH
R15 Remote Control Mirror RH
R16 Remote Control Mirror SW (w/ Power Window)

T 4 Tension Reducer Solenoid LH
T 5 Tension Reducer Solenoid RH
T 6 Top Stack Bypass SW
T 7 Top Stack Motor LH
T 8 Top Stack Motor RH
T 9 Top Stack Relay
T10 Tweeter Speaker LH
T11 Tweeter Speaker RH

W 6 Woofer Speaker LH
W 7 Woofer Speaker RH
