Pinout Values and Diagnostic Parameters
STANDARD VALUE OF ECU TERMINAL

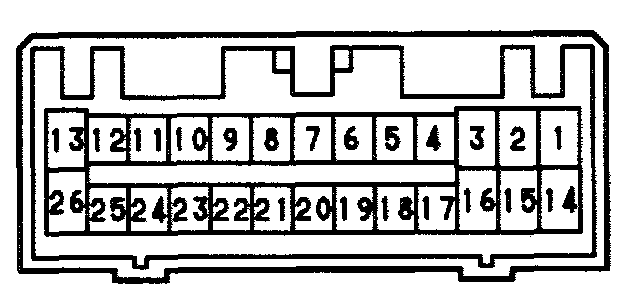

Cruise Control ECU- Terminal View:

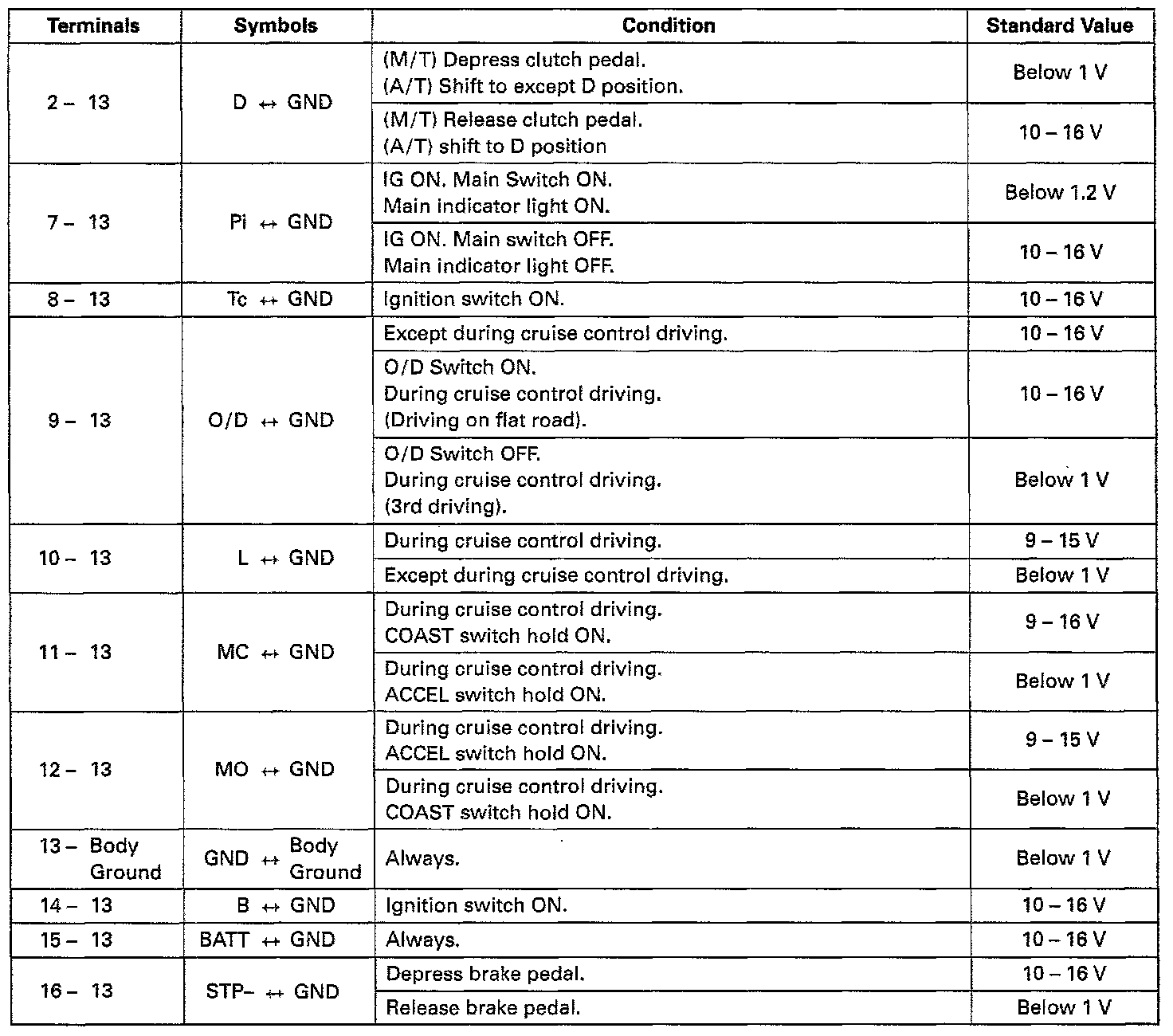

ECU Pinout Values 1 Of 2.:

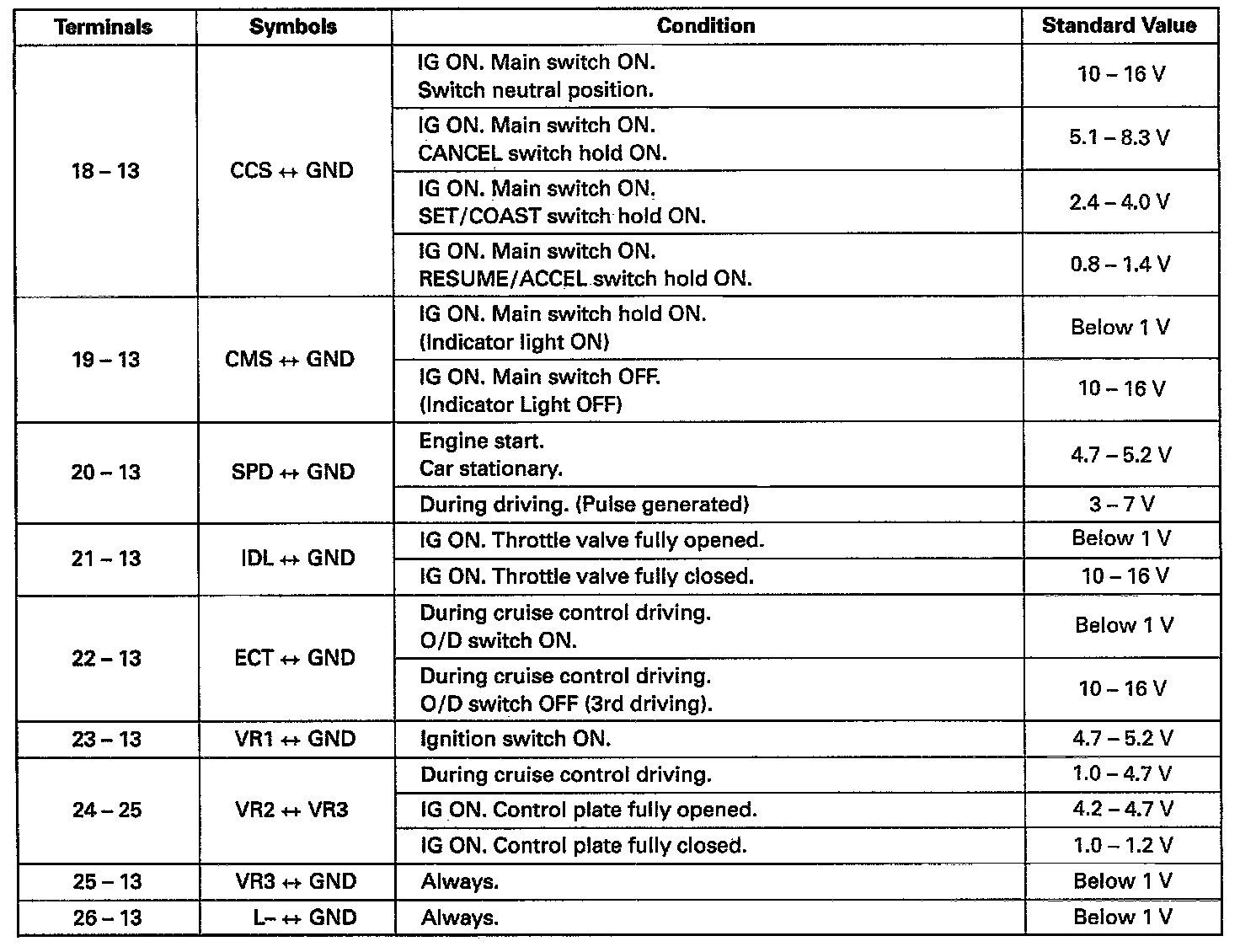

ECU Pinout Values 2 Of 2.:
