Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Main Switch
Main Switch
Main Switch Circuit (
Cruise Control Switch
)
CIRCUIT DESCRIPTION
When the cruise control main switch is turned off, the
cruise control
does not operate.

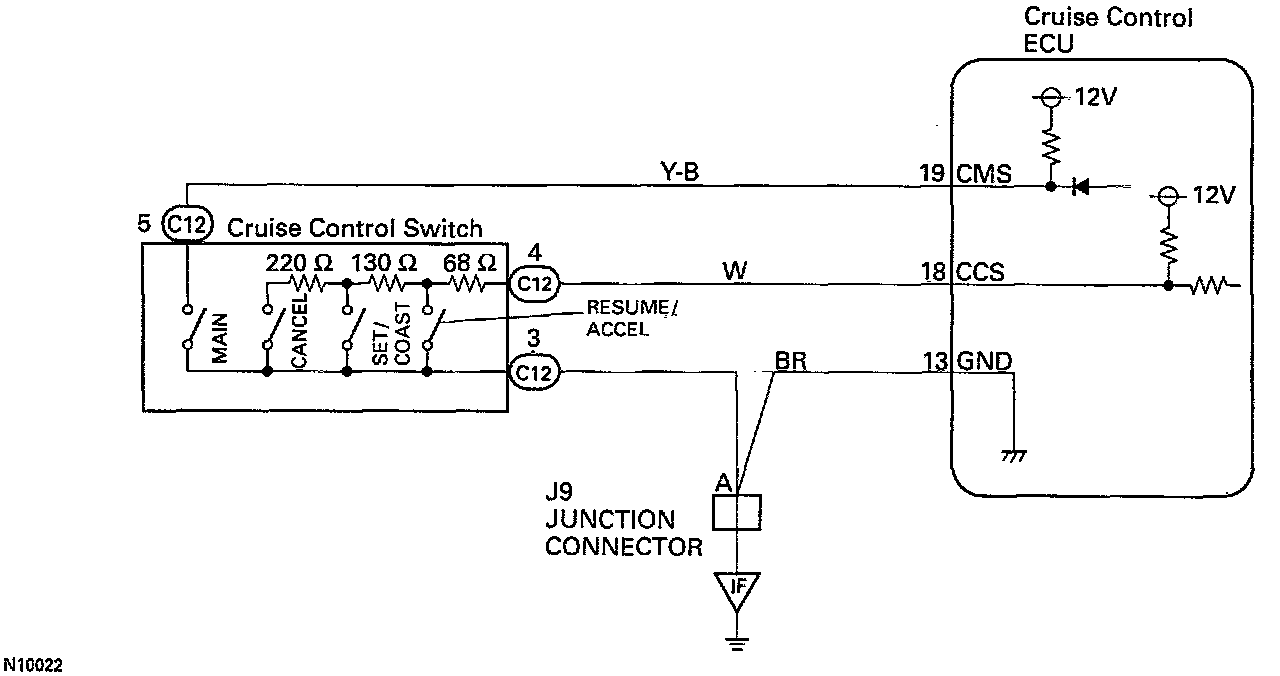

Wiring Diagram:
INSPECTION PROCEDURES

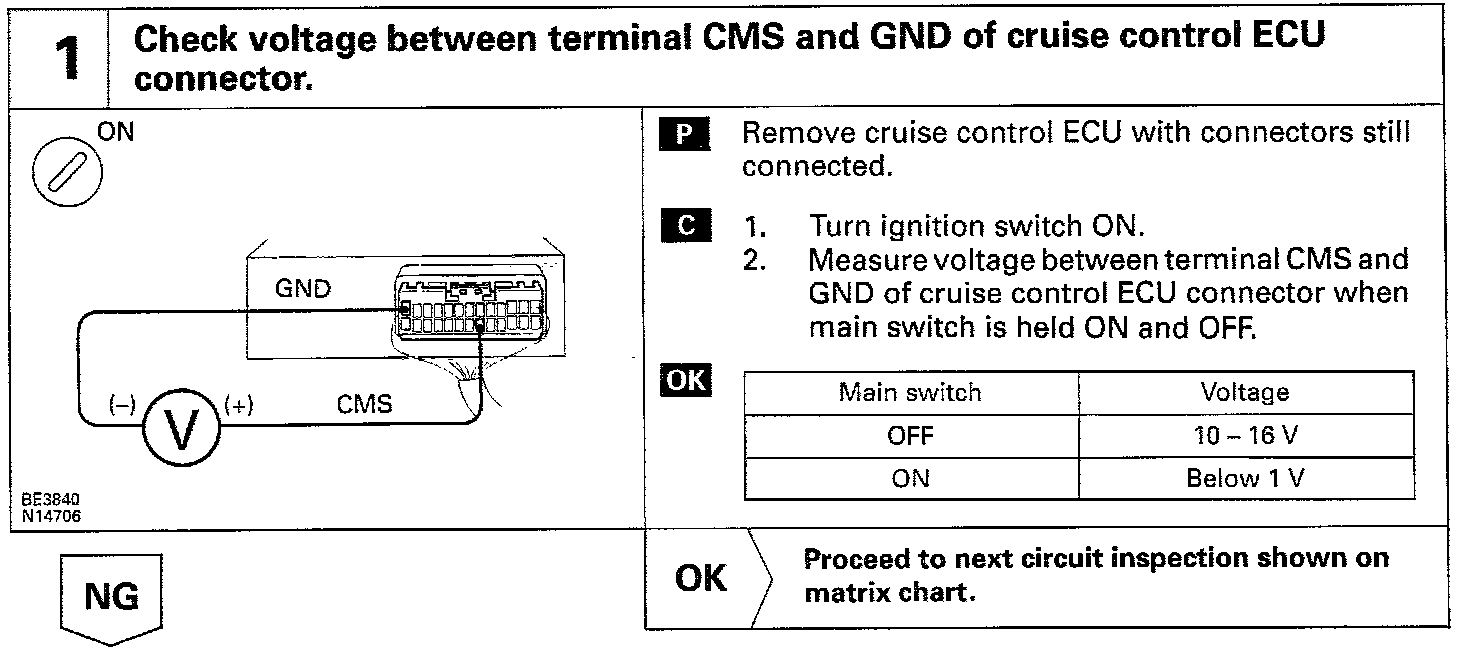

Step 1:
Step 2:

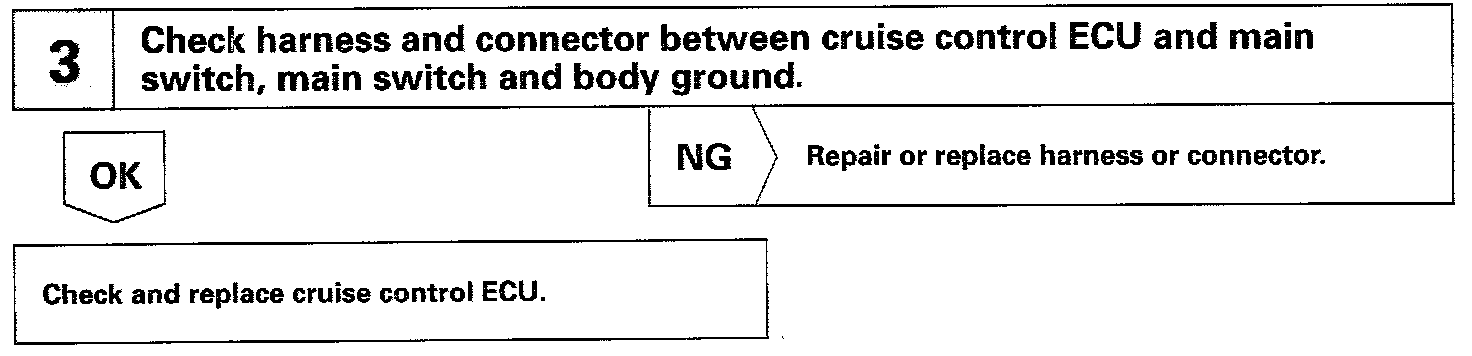

Step 3:
