Disassembly and Assembly

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

DISTRIBUTOR DISASSEMBLY
1. GREMOVE DISTRIBUTOR CAP
2. REMOVE ROTOR
3. REMOVE IGNITION COIL DUST COVER
- Remove the dust cover and gasket.
4. REMOVE IGNITION COIL

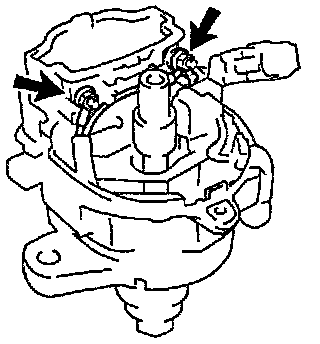

- Remove the 2 nuts, and disconnect the 3 wires from the ignition coil terminals.





- Remove the 4 screws and ignition coil.

5. REMOVE CORD CLAMP
- Disconnect the connector from the cord clamp.

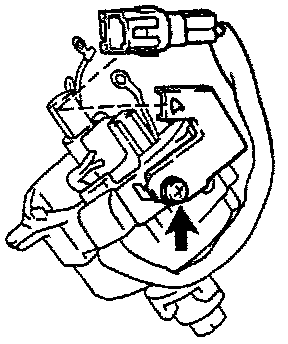

- Remove the screw and cord clamp.





6. REMOVE CONDENSER
- Remove the screw and condenser.

DISTRIBUTOR ASSEMBLY
1. INSTALL CONDENSER
2. INSTALL CORD CLAMP
- Install the cord clamp with the screw.
- Connect the connector to the cord clamp.
3. INSTALL IGNITION COIL





- Remove any old packing (FIPG) material.
- Apply seal packing to the ignition coil installing surface of the housing as shown in the illustration.

Seal packing:
Part No. 08826-00080 or equivalent

- Install the ignition coil with the 4 screws.

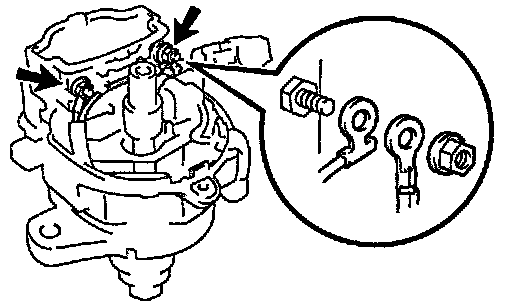

- Connect the 3 wires to the ignition coil terminals with the 2 nuts as shown in the illustration.





NOTICE:

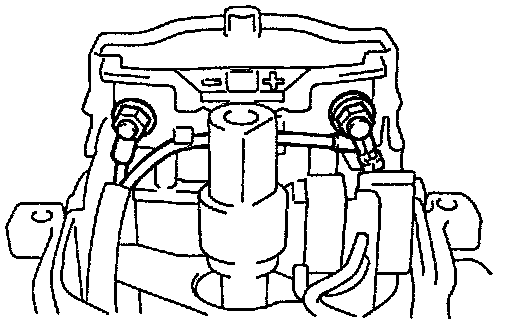

- When connecting the wires to the Ignition coil, Insert both properly into their grooves found on the side of the ignition coil.
- Be sure the wires do not contact with signal rotor or distributor housing.

4. INSTALL IGNITION COIL DUST COVER
- Install a new gasket to the distributor housing.
- Install the dust cover.
5. INSTALL ROTOR
6. INSTALL DISTRIBUTOR CAP
