Crankshaft Position Sensor: Testing and Inspection

CRANKSHAFT POSITION SENSOR INSPECTION

NOTICE: Cold" and "Hot" in the following sentences express the temperature of the sensor itself.
"Cold" is from -10°C (14°F) to 50°C (122°F) and
"Hot" is from 50°C (122°F) to 100°C (212°F).

1. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
2. INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE

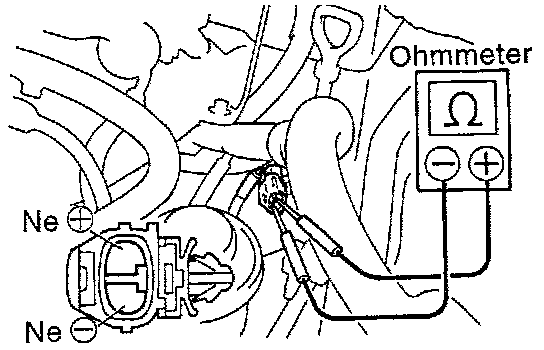

- Using an ohmmeter, measure the resistance between the terminals NE (+) and NE (-).

Resistance:
Cold: 1,630 - 2,740 Ohms
Hot: 2,065 - 3,225 Ohms

- If the resistance is not as specified, replace the crankshaft position sensor.
3. RECONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
