Manual Transmission/Transaxle
>>
System Diagram
>>
Transaxle Component Parts
Transaxle Component Parts

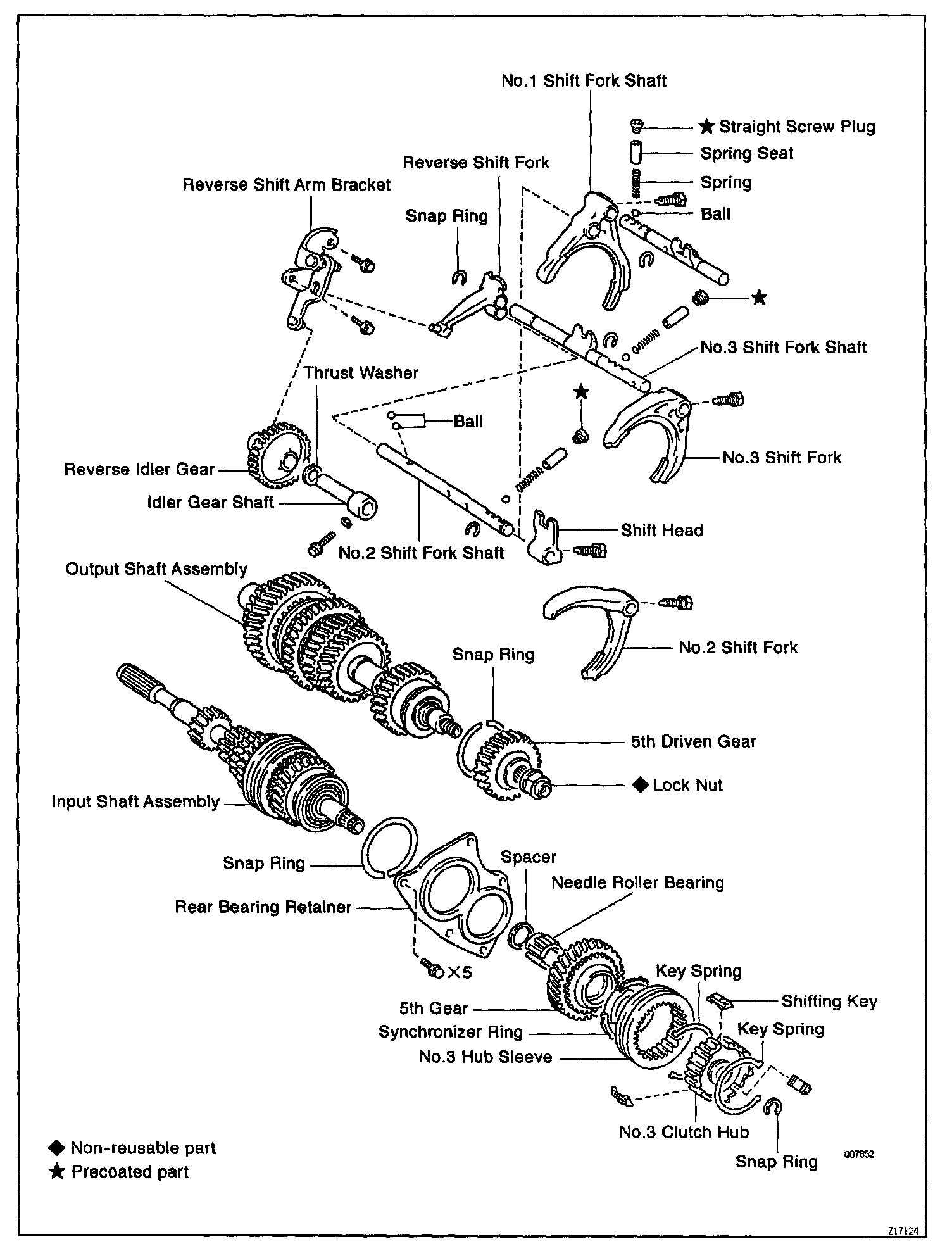

Part 1:

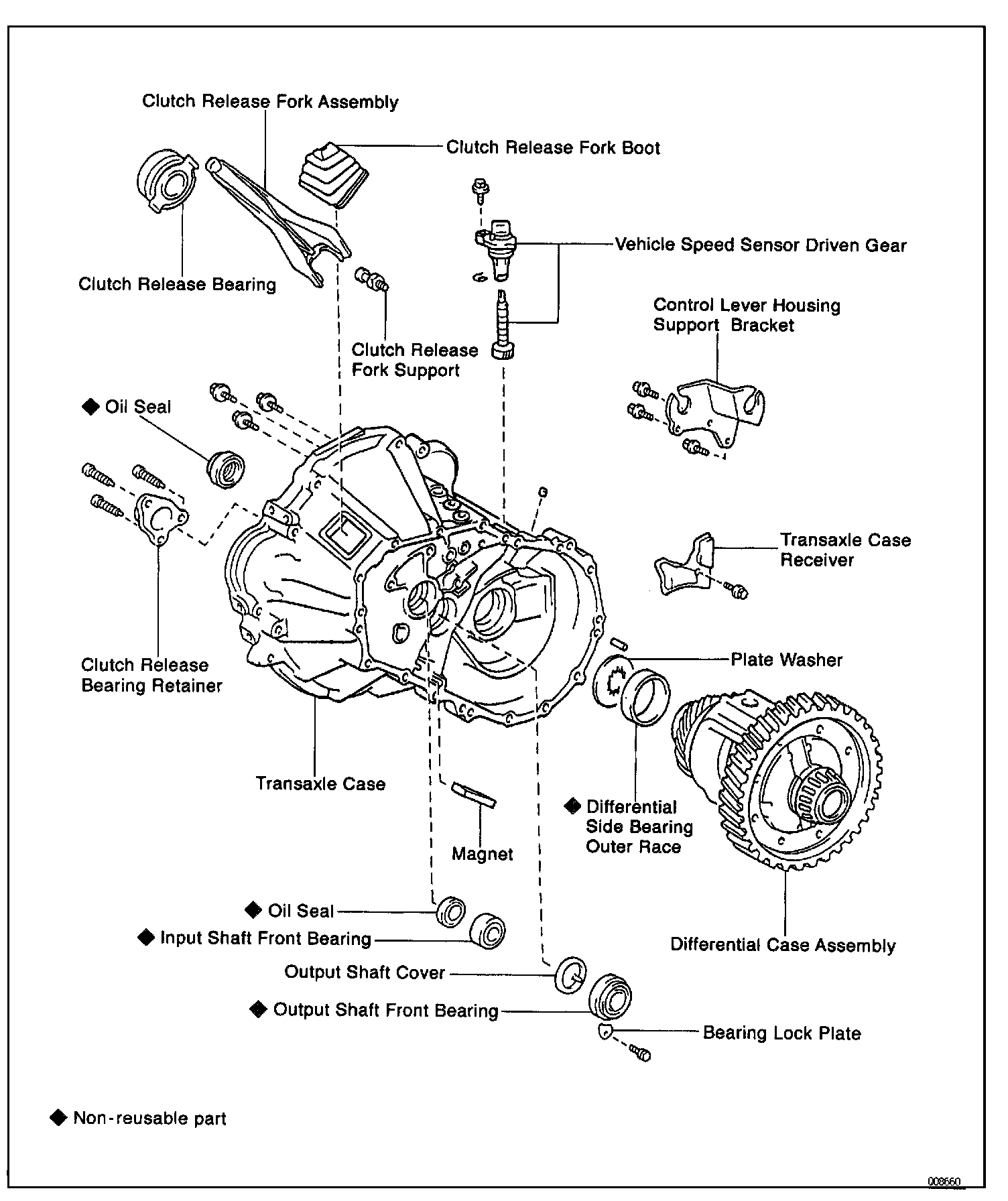

Part 2:

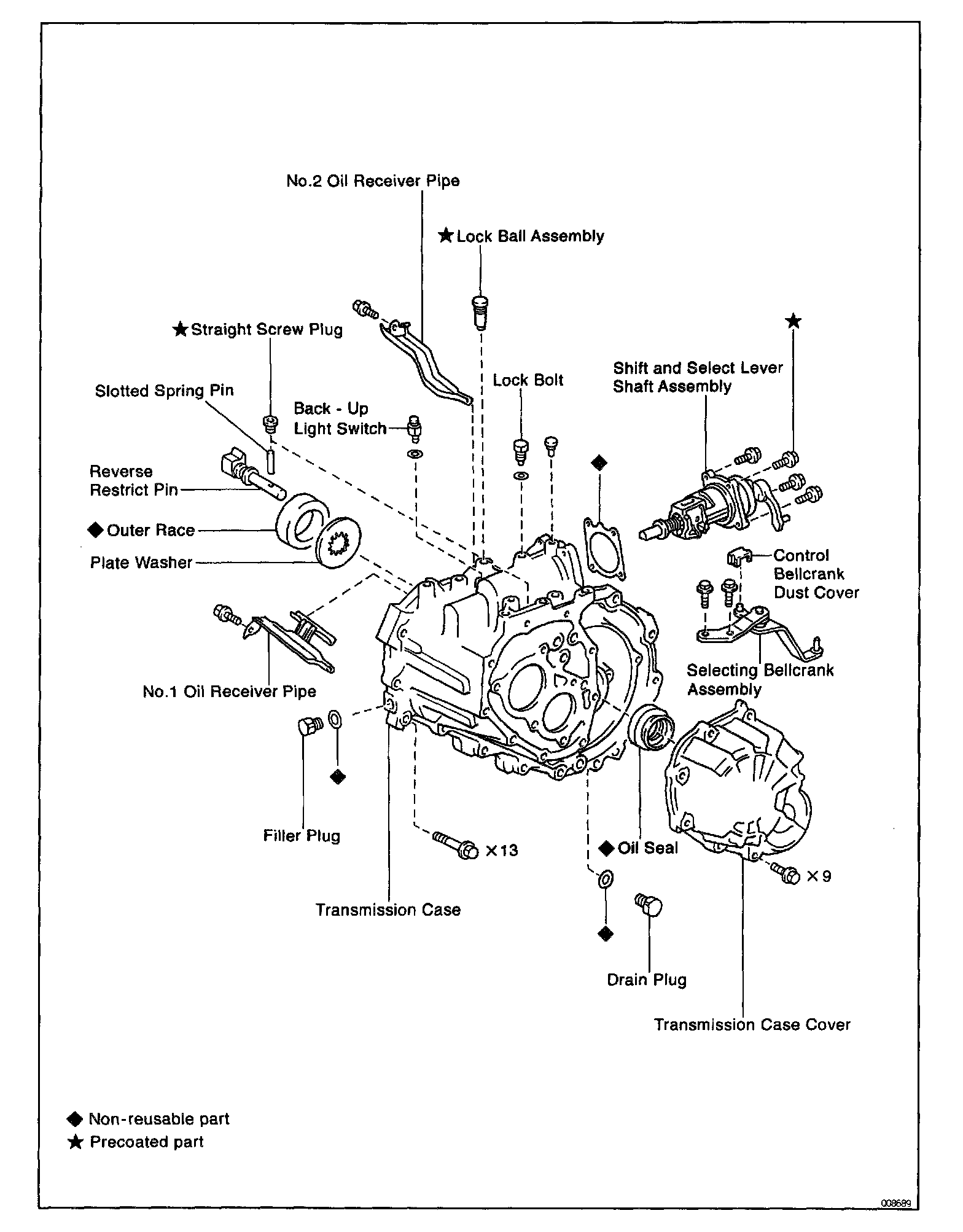

Part 3:
