Manufacturer Codes

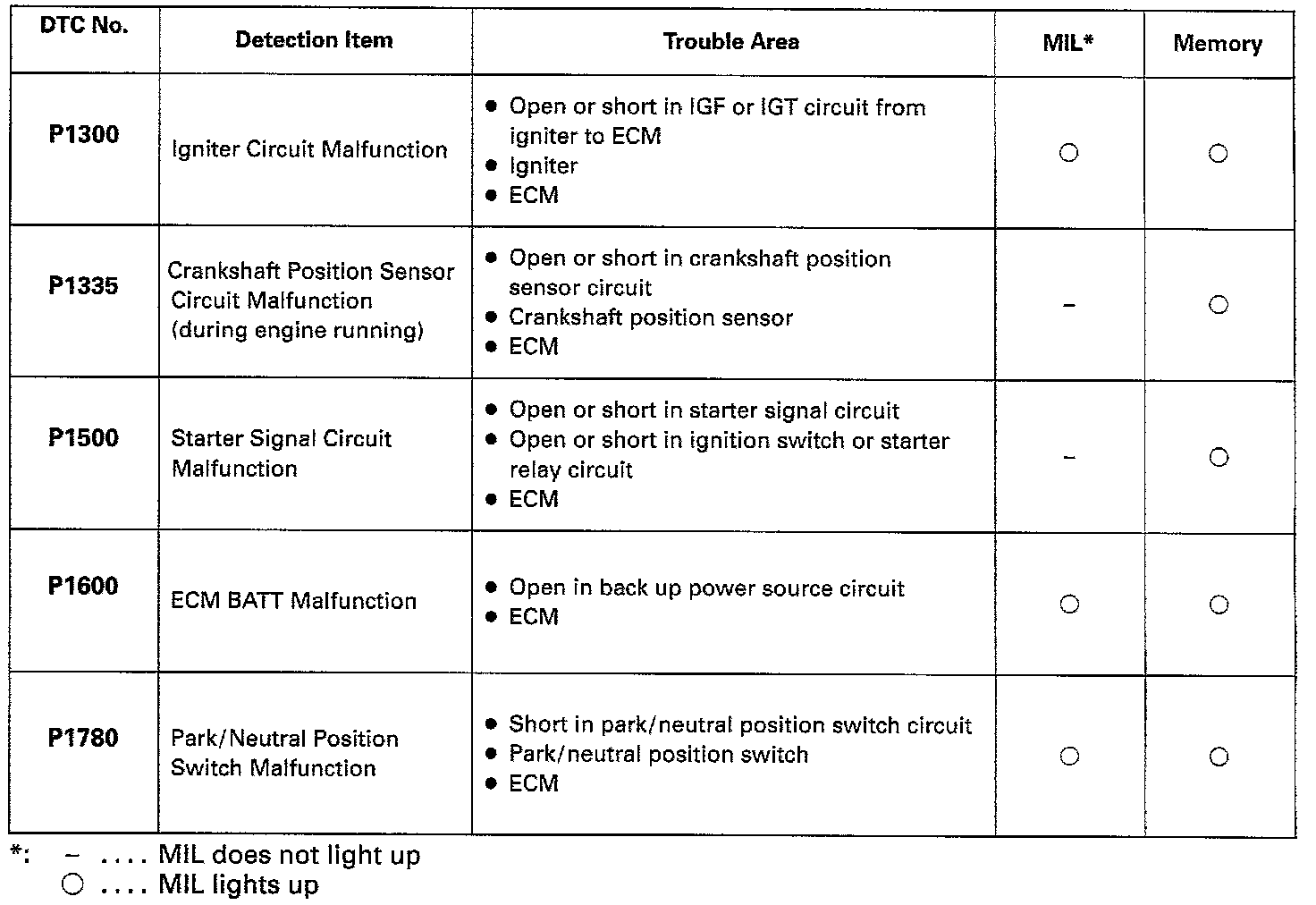

DTC CHART (Manufacturer Controlled)


HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table above.
