Home
>>
Toyota
>>
1996
>>
Camry Sedan 4-Door V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
>>

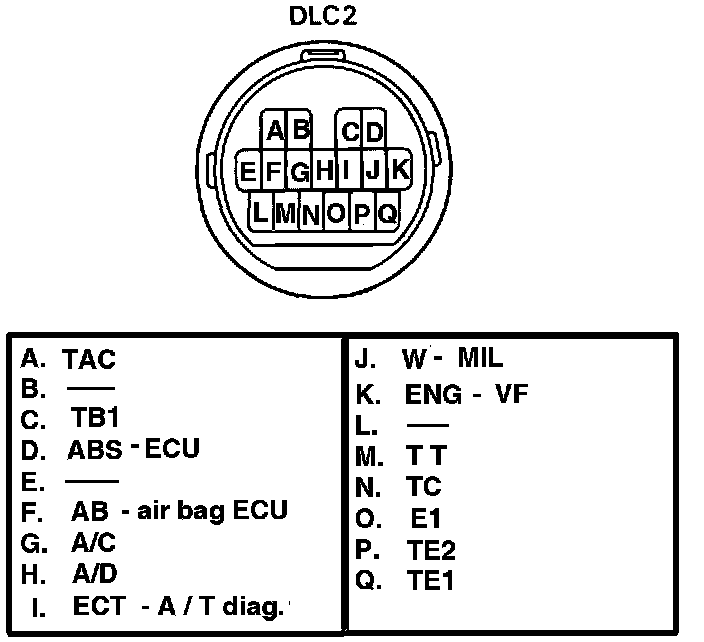

Data Link Connector 2
Data Link Connector 2
DLC2 Terminal ID:
