Body

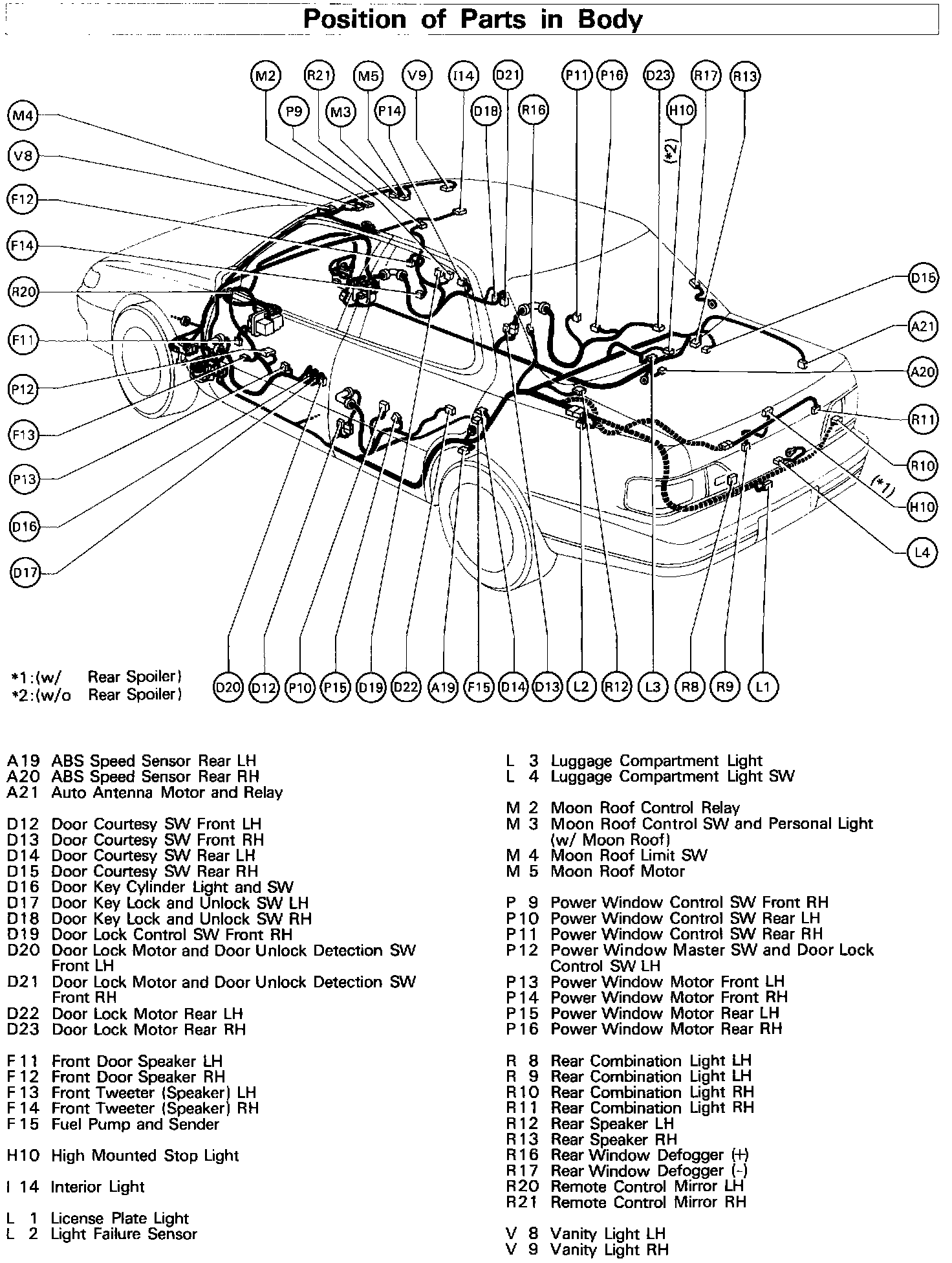

Position Of Parts In Body (Part 1 Of 3) (Fig 34):

A19 ABS Speed Sensor Rear LH
A20 ABS Speed Sensor Rear RH
A21 Auto Antenna Motor and Relay

D12 Door Courtesy SW Front LH
D13 Door Courtesy SW Front RH
D14 Door Courtesy SW Rear LH
D15 Door Courtesy SW Rear RH
D16 Door Key Cylinder Light and SW
D17 Door Key Lock and Unlock SW LH
D18 Door Key Lock and Unlock SW RH
D19 Door Lock Control SW Front RH
D20 Door Lock Motor and Door Unlock Detection SW Front LH
D21 Door Lock Motor and Door Unlock Detection SW Front RH
D22 Door Lock Motor Rear LH
D23 Door Lock Motor Rear RH

F11 Front Door Speaker LH
F12 Front Door Speaker RH
F13 Front Tweeter (Speaker) LH
F14 Front Tweeter (Speaker) RH
F15 Fuel Pump and Sender

H10 High Mounted Stop Light

I14 Interior Light

L 1 License Plate Light
L 2 Light Failure Sensor
L 3 Luggage Compartment Light
L 4 Luggage Compartment Light SW

M 2 Moon Roof Control Relay
M 3 Moon Roof Control SW and Personal Light (w/ Moon Roof)
M 4 Moon Roof Limit SW
M 5 Moon Roof Motor

P 9 Power Window Control SW Front RH
P10 Power Window Control SW Rear LH
P11 Power Window Control SW Rear RH
P12 Power Window Master SW and Door Lock Control SW LH
P13 Power Window Motor Front LH
P14 Power Window Motor Front RH
P15 Power Window Motor Rear LH
P16 Power Window Motor Rear RH

R 8 Rear Combination Light LH
R 9 Rear Combination Light LH
R10 Rear Combination Light RH
R11 Rear Combination Light RH
R12 Rear Speaker LH
R13 Rear Speaker RH
R16 Rear Window Defogger (+)
R17 Rear Window Defogger (-)
R20 Remote Control Mirror LH
R21 Remote Control Mirror RH

V 8 Vanity Light LH
V 9 Vanity Light RH
