Condenser Fan: Testing and Inspection

INSPECTION

1. Disconnect connector.
2. Inspect condenser fan motor.

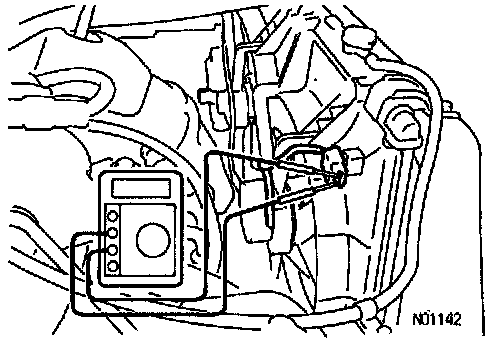

Connect positive (+) lead from battery and negative (-) lead to terminals, then check that the condenser fan motor operates smoothly.
Standard current: 6.0 - 7.4 Ampere

If current value is not as specified, replace the condenser fan motor.
