Diagnosis Circuit

TC Circuit

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.

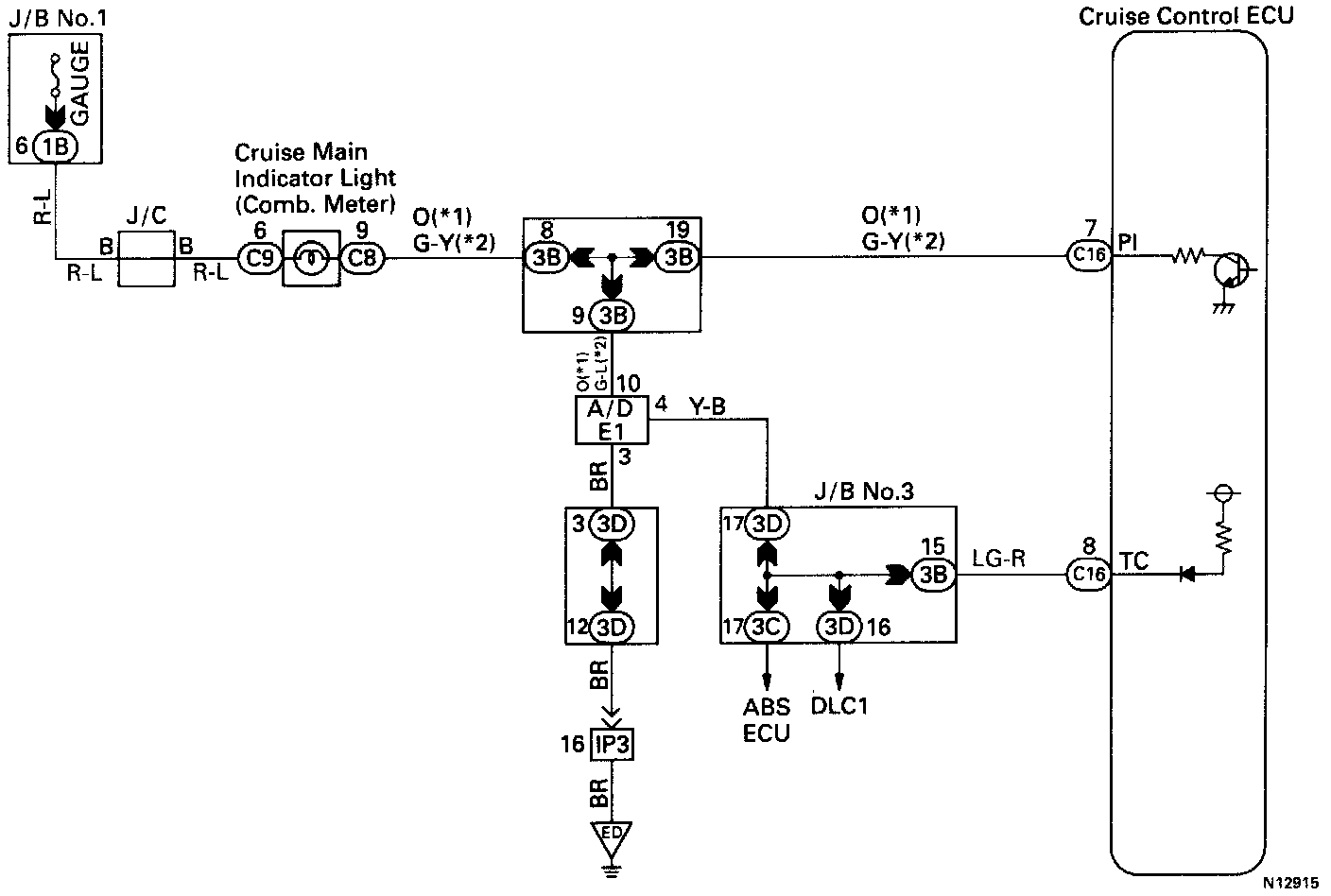

Wiring Diagram:

INSPECTION PROCEDURE

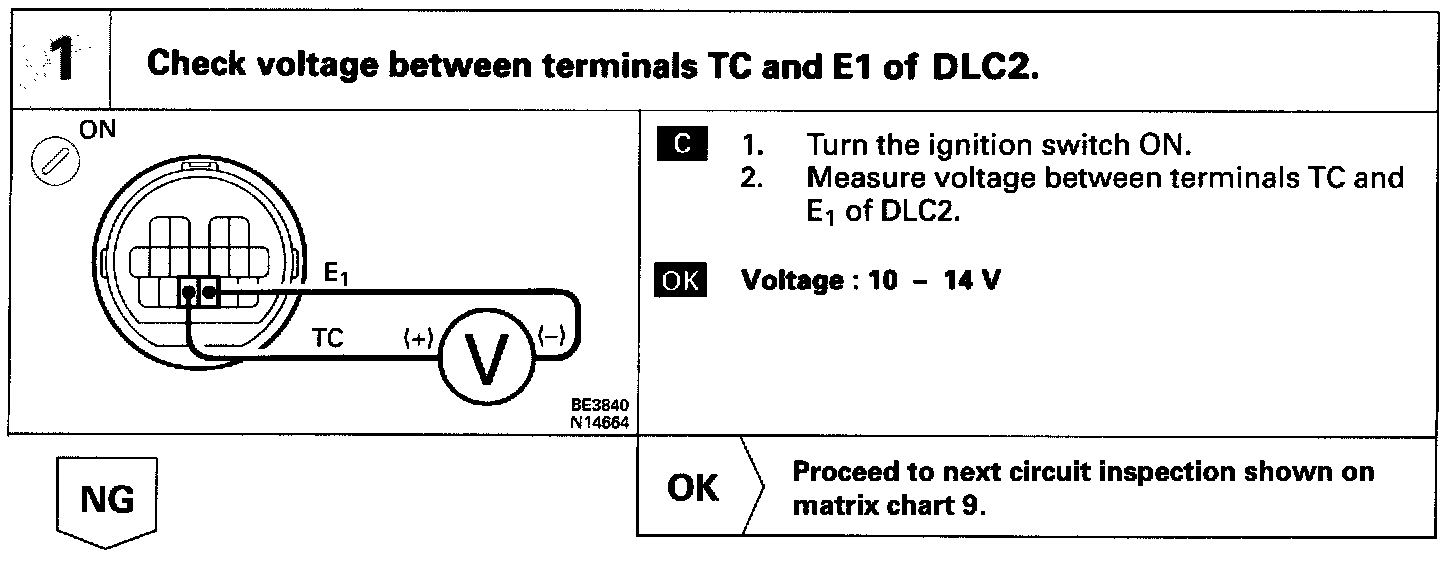

Step 1:

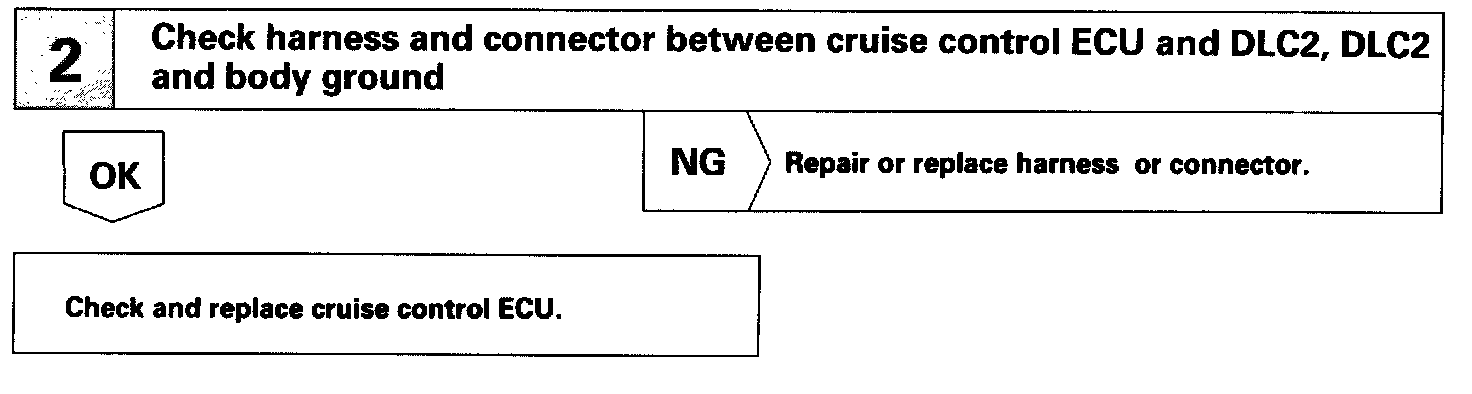

Step 2:
