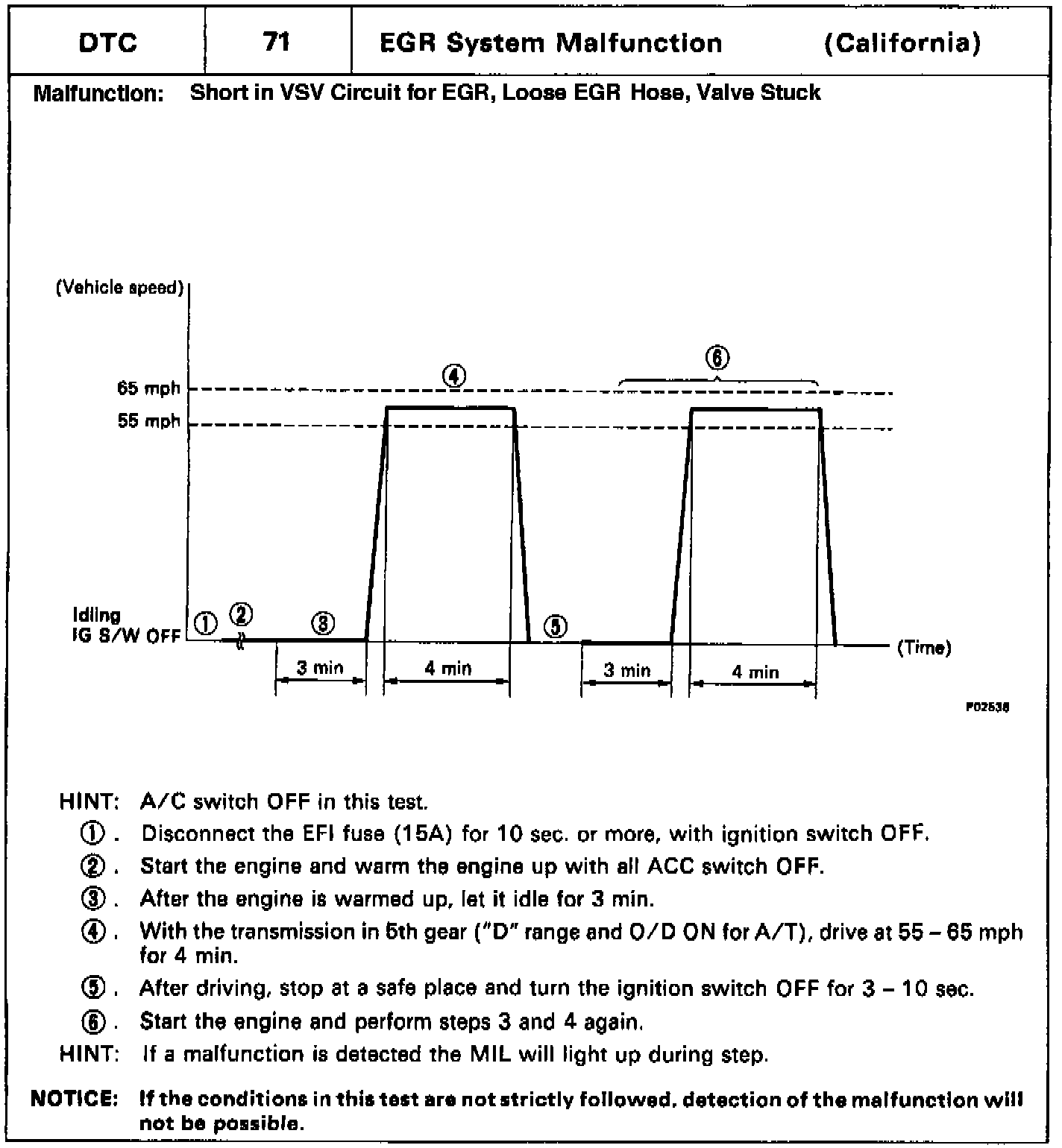

Code 71

Purpose of the driving pattern

a. To simulate diagnostic trouble code detecting condition after diagnostic trouble code is recorded.

b. To check that the malfunction is corrected when the repair is completed confirming that diagnostic trouble code is no longer detected.
