Toyota
>>
1994
>>
Tercel Sedan 4-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

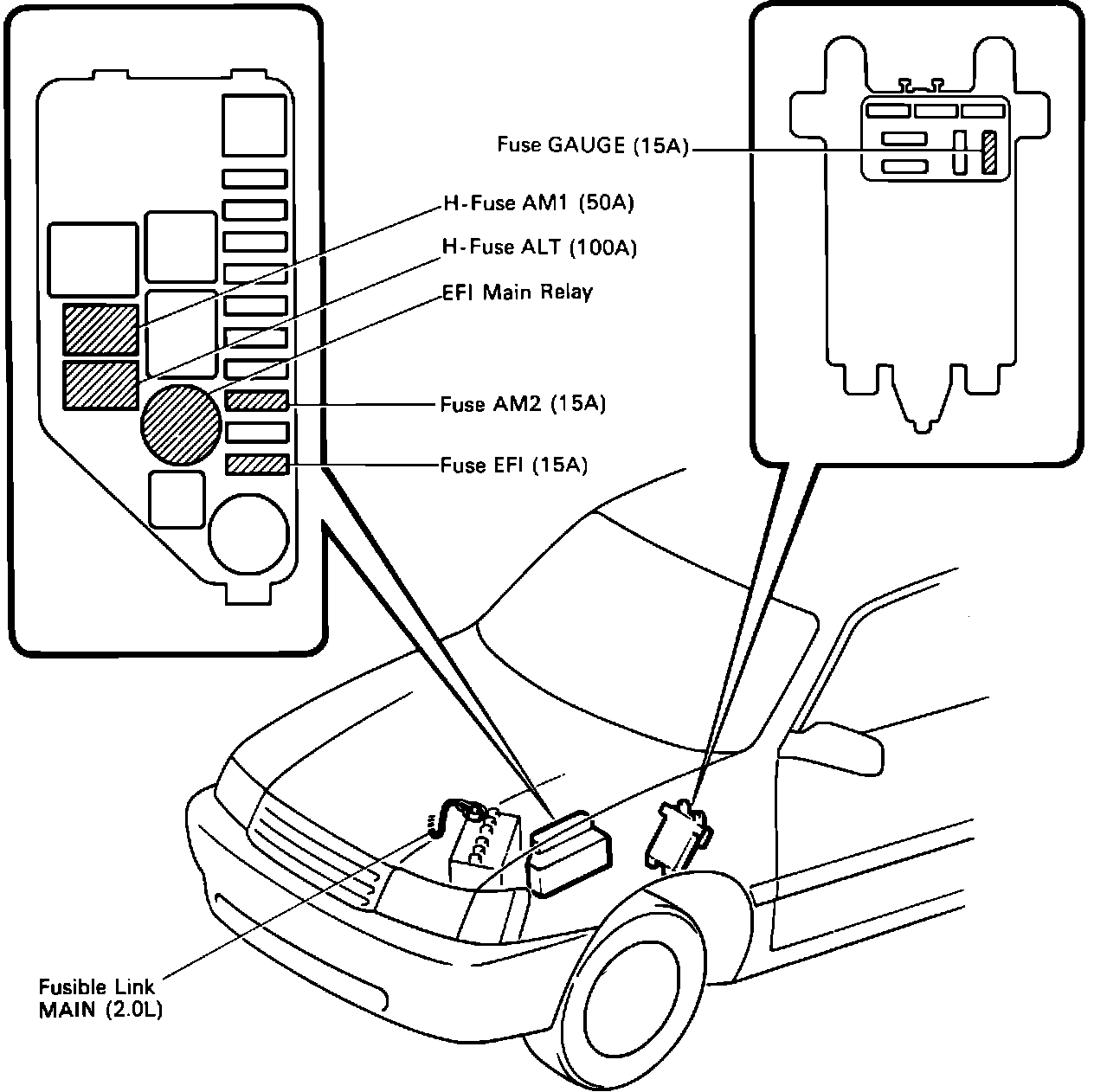

Location Of Fuses And Fusible Link:
Located on the LH side of engine compartment.
