Manual Transmission/Transaxle
>>
Shift Cable, M/T

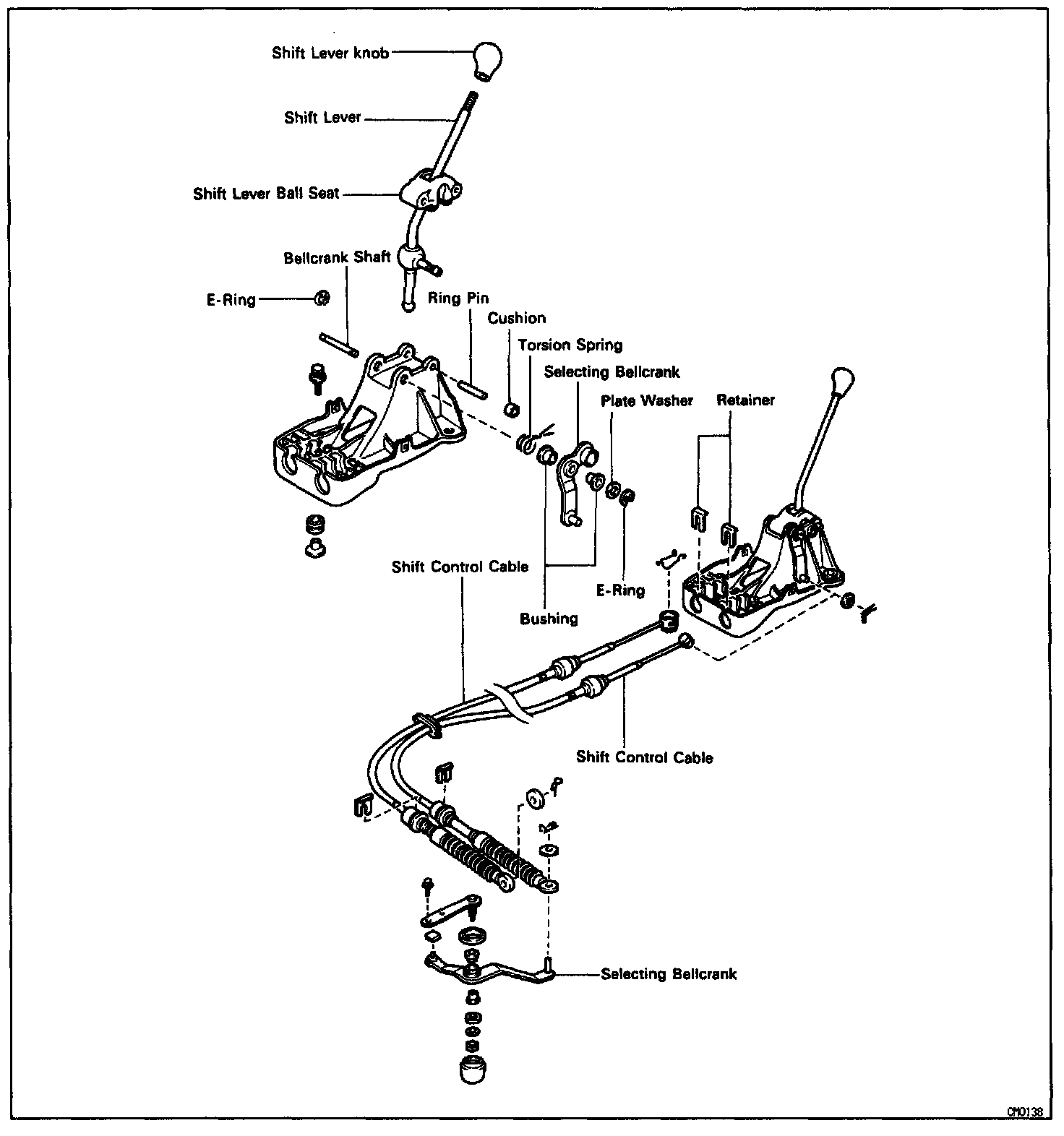

Shift Cable, M/T
HINT:
There are 2 types of shift lever assembly. Refer to the illustrations when performing repairs.
