Intermediate Shaft: Service and Repair

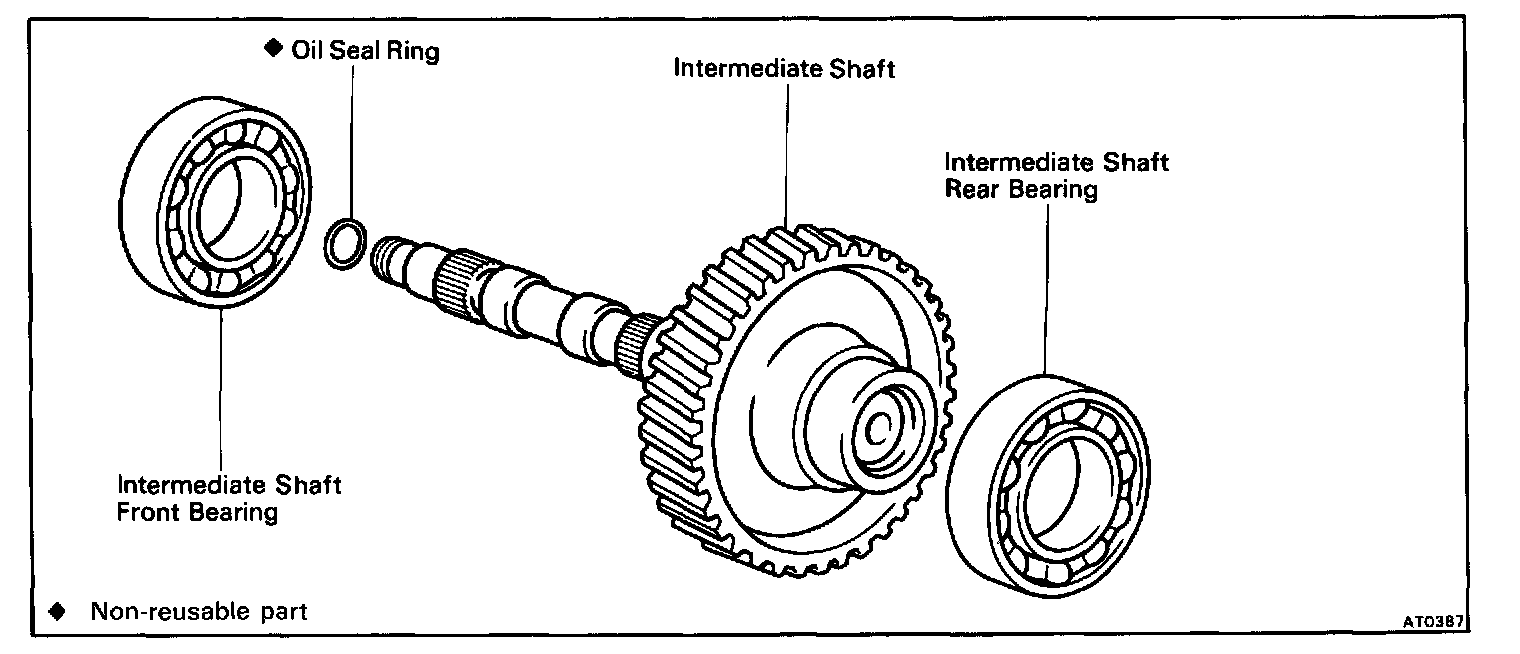

COMPONENTS

DISASSEMBLY OF INTERMEDIATE SHAFT

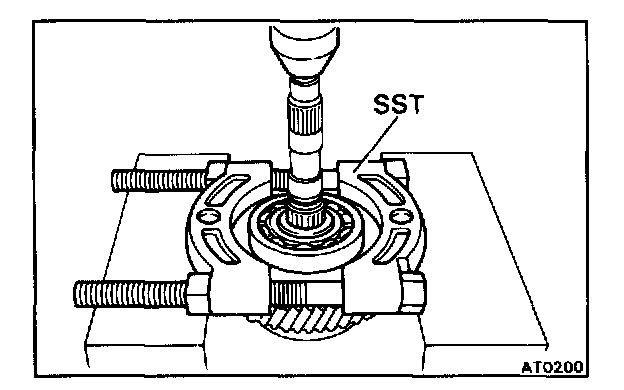

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING
Using SST, press out the bearing.
SST 09950 - 00020

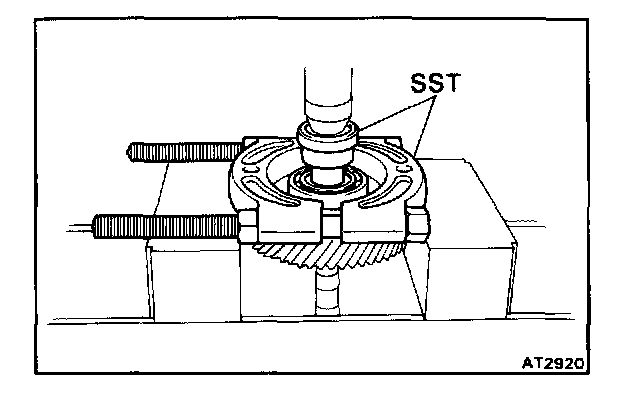

2. REMOVE INTERMEDIATE SHAFT REAR BEARING
Using SST, press out the bearing.
SST 09350 - 32014 (09351 - 32090), 09950 - 00020

ASSEMBLY OF INTERMEDIATE SHAFT

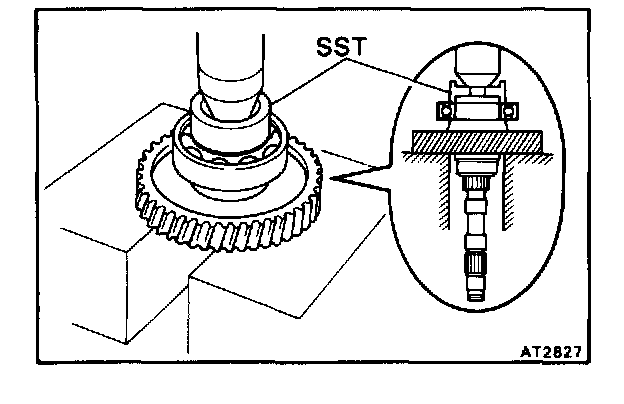

1. INSTALL INTERMEDIATE SHAFT REAR BEARING
Using SST, press in a new bearing.
SST 09350 - 32014 (09351 - 32150)

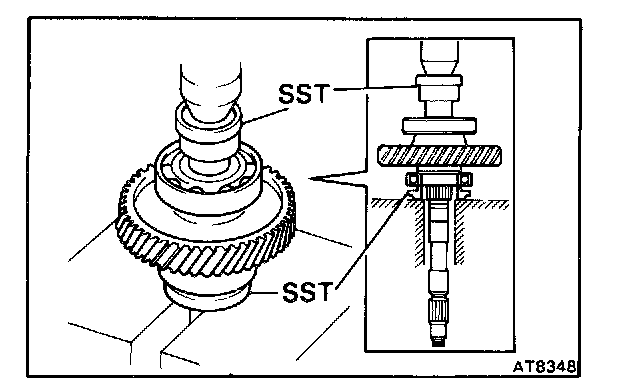

2. INSTALL INTERMEDIATE SHAFT FRONT BEARING




a. Using SST, press in a new bearing.
SST 09350 - 32014 (09351 - 32090, 09351 - n32120)

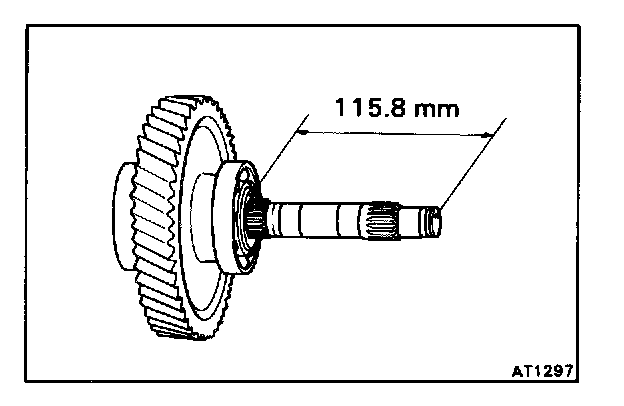

b. Check that the distance from the gear flange end to the intermediate shaft end is 115.8 mm (4.559 in.).
