A/C - Compressor Operates Intermittently

REF.: HEATING AND AIR CONDITIONING

NO.: AC94-002

DATE: JUNE 3, 1994

MODEL: EL4 #

1994 TERCEL AND PASEO A/C WIRE HARNESS IMPROVEMENT

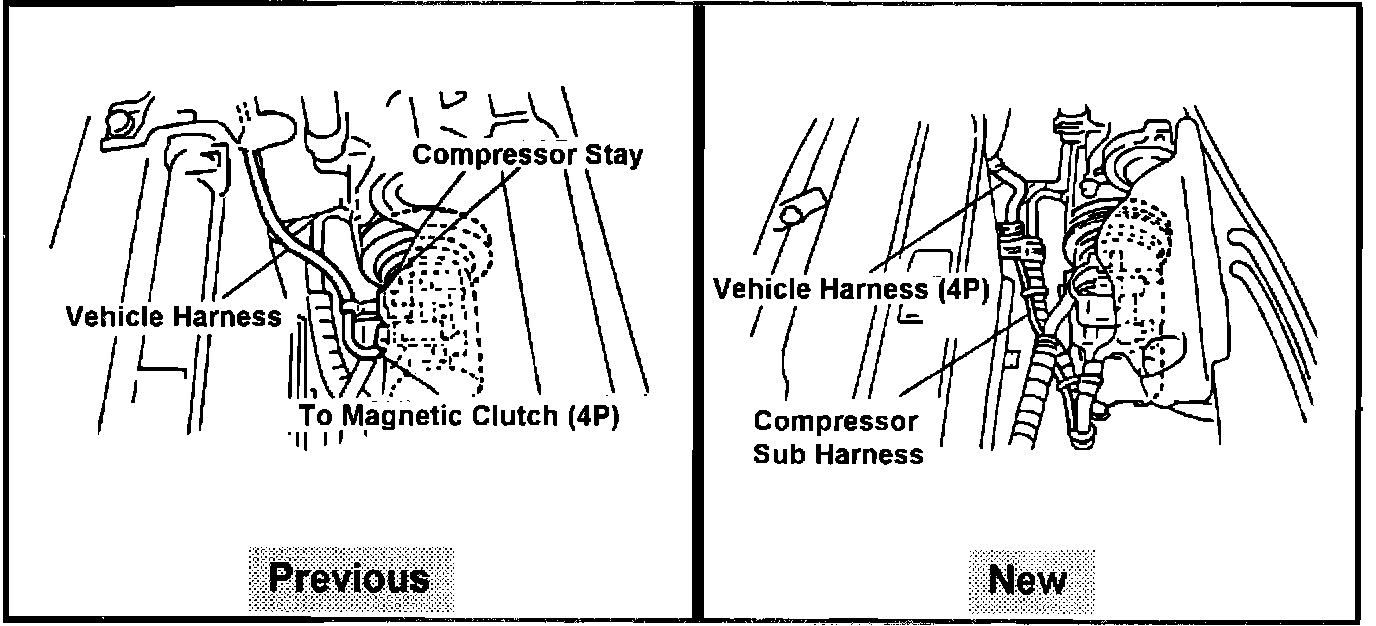

To improve durability, the routing of the wiring harness for the A/C compressor on Tercel and Paseo has been changed.

This improvement will eliminate potential complaints of:

^ A/C Light Flashing

^ A/C Not Cooling

^ A/C Compressor Operates Intermittently

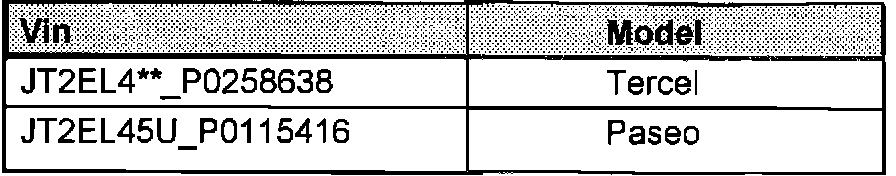

PRODUCTION CHANGE EFFECTIVE:

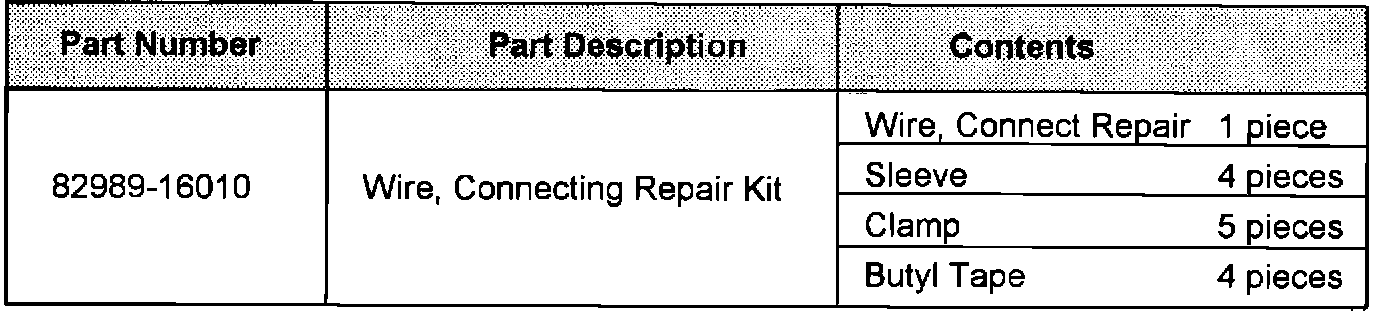

PART NUMBER INFORMATION:

REPAIR PROCEDURE:

If the above complaints occur, use the following procedures:

1. Remove air intake connector.

2. Remove radiator grille.

3. Remove upper radiator support.

4. Locate wiring harness for the A/C compressor (this harness runs down along the passenger side of the radiator support just next to the radiator).

5. Remove the three wiring harness clamps.

6. Remove the harness protective covering.

7. Disconnect the A/C compressor connector.

8. Open the harness between the plastic protector mounted on the radiator support and inspect the harness wiring down to the A/C compressor connector.

9. Locate damaged wiring, cut and splice in new harness connector.





Note:

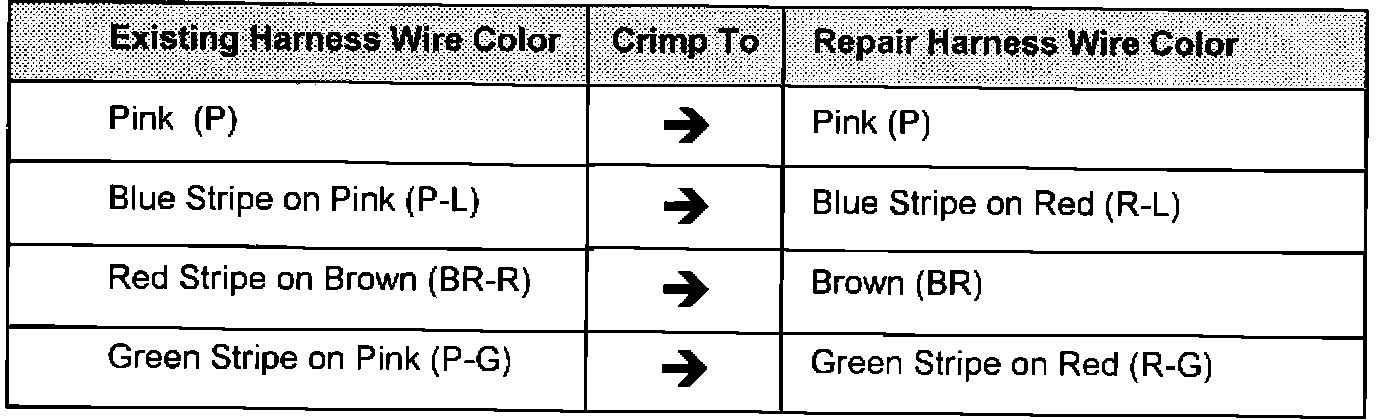

Before October 1991 production, the wiring color on the repair harness will not match the wiring color on the existing harness. The chart will show the correct connections.

10. Shrink the covering around the connectors with a heat gun and wrap with the butyl tape provided.

11. Wrap harness with vinyl electrical tape.

12. Route harness using plastic clamps to connect harness to the low pressure A/C compressor hose.

13. Reinstall radiator support, grille, and air inlet duct. Confirm A/C operation.
