Idle and/or 2,500 RPM HC/CO Check

IDLE AND/OR 2,500 RPM CO/HC CHECK

HINT: This check is used only to determine whether or not the idle CO/HC complies with regulations.

1. Initial Conditions

a. Engine at normal operating temperature

b. Air cleaner installed

c. All pipes and hoses of air induction system connected

d. All accessories switched OFF

e. All vacuum lines properly connected

HINT: All vacuum hoses for Exhaust Gas Recirculation (EGR) system, etc. should be properly connected.

f. MFI system wiring connectors fully plugged

g. Ignition timing set correctly

h. Transmission in neutral position

i. Tachometer and CO/HC meter calibrated by hand

2. Start Engine

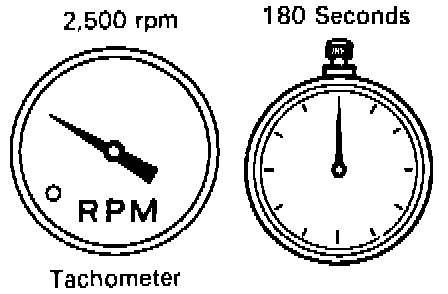

3. Race Engine At 2,500 RPM For Approx. 180 Seconds

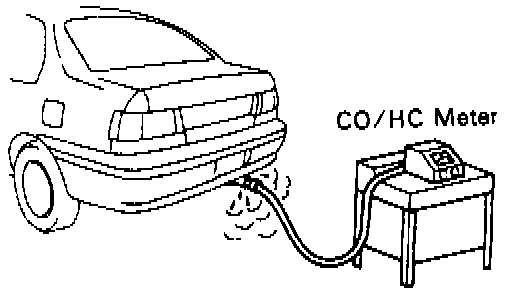

4. Insert CO/HC Meter Testing Probe At Least 40 Cm (1.3 Ft) Into Tailpipe During Idling

5. Immediately Check CO/HC Concentration At Idle And/or 2,500 RPM

HINT: When performing the 2 mode (2,500 rpm and idle) test, follow the measurement order prescribed by the applicable local regulations.
