Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Federal and Canada
Federal and Canada

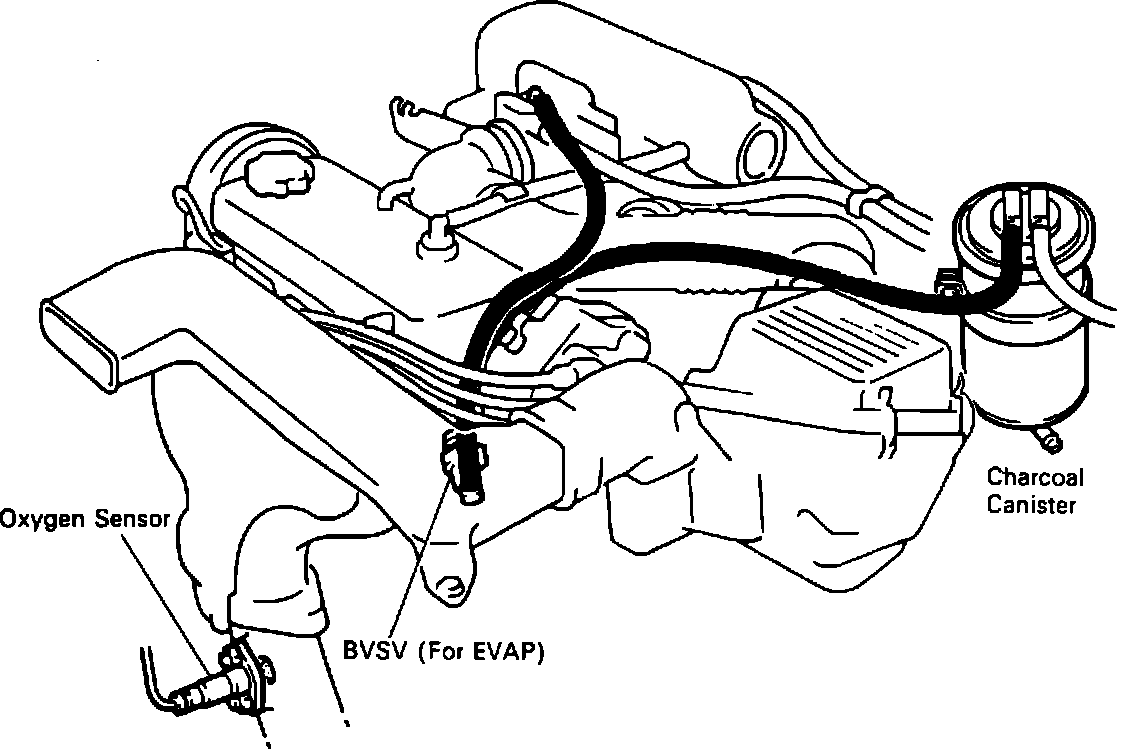

Emission System Vacuum Schematic Diagram:
