Evaporative Emissions System: Testing and Inspection

FUEL VAPOR LINES, FUEL TANK AND TANK CAP INSPECTION

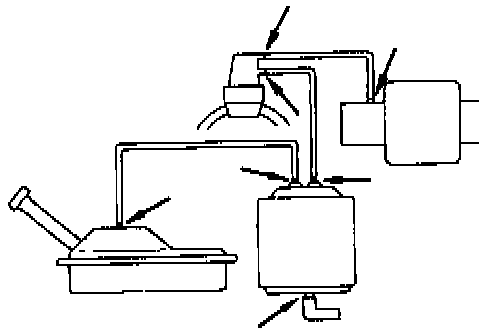

Checking Evaporative Emission (EVAP) System Connections:

1. Visually inspect lines and connections. Look for loosen connections, sharp bends or damage.

2. Visually inspect fuel tank. Look for deformation, cracks or fuel leakage.

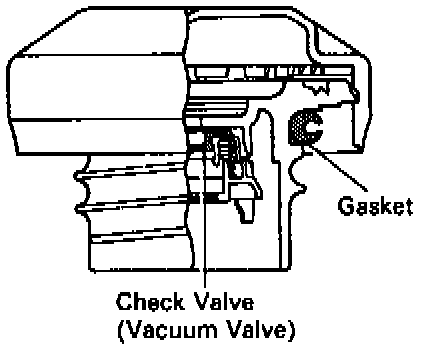

Fuel Tank Cap Construction:

3. Visually inspect fuel tank cap. Check if the cap and/or gasket are deformed or damaged.

If necessary, repair or replace the cap.
