Evaporative Emissions System: Description and Operation

Evaporative Emission (EVAP) System Schematic:

PURPOSE

The Evaporative Emission Control System reduces Hydro Carbon (HC) emissions.

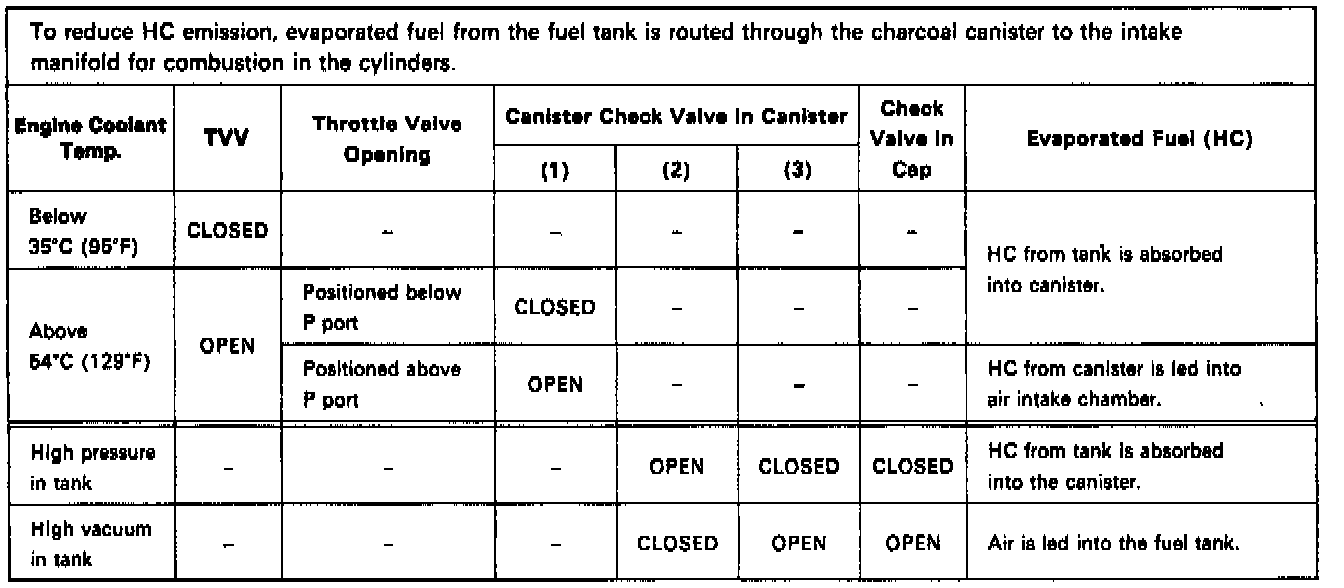

Evaporative Emission (EVAP) System Operating Conditions:

OPERATION

During certain operating conditions evaporated fuel from the fuel tank is routed through the charcoal canister to the intake manifold for combustion in the cylinders.
