Engine Control
Engine Control

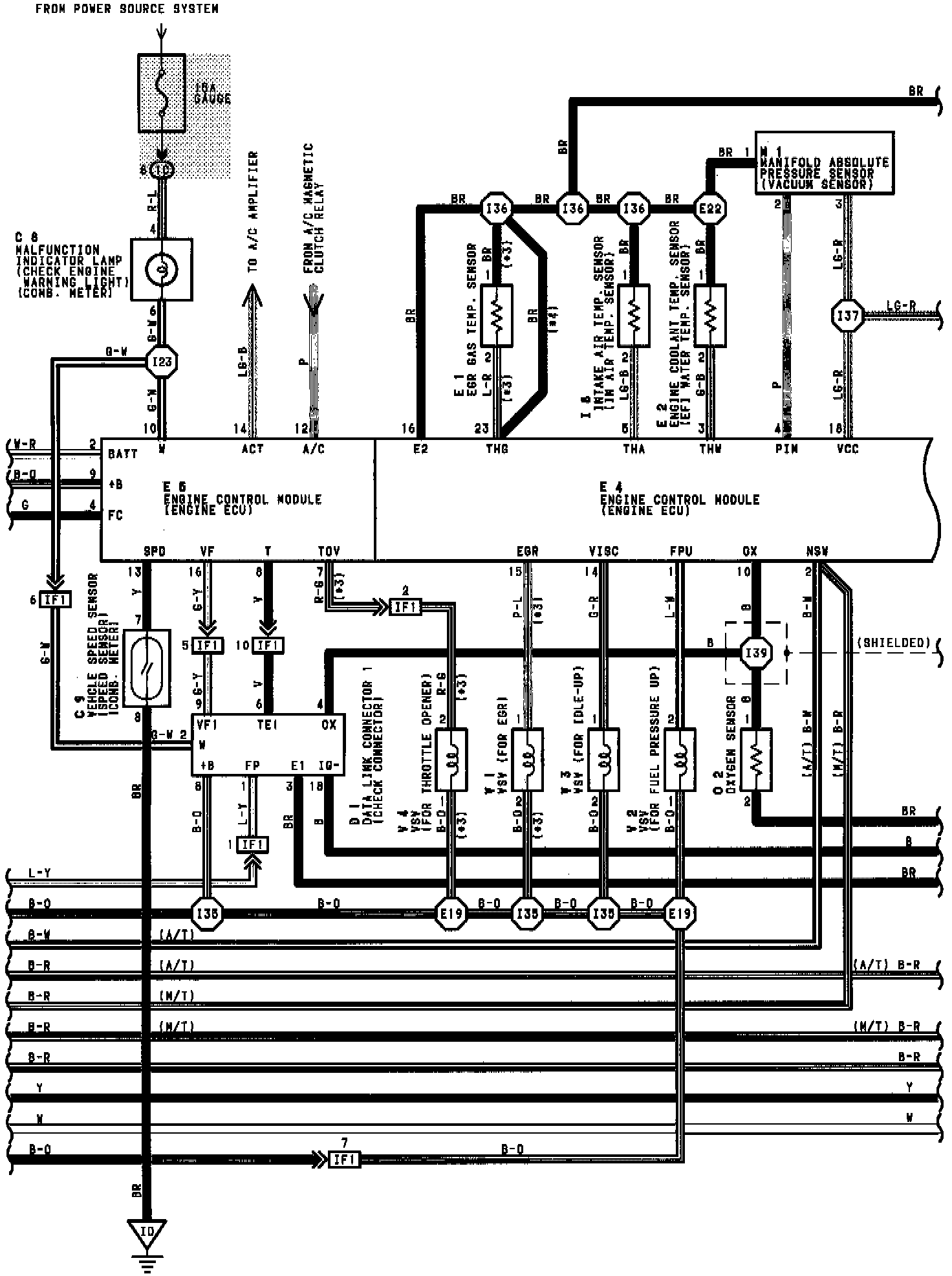

Engine Control Wiring Diagram:

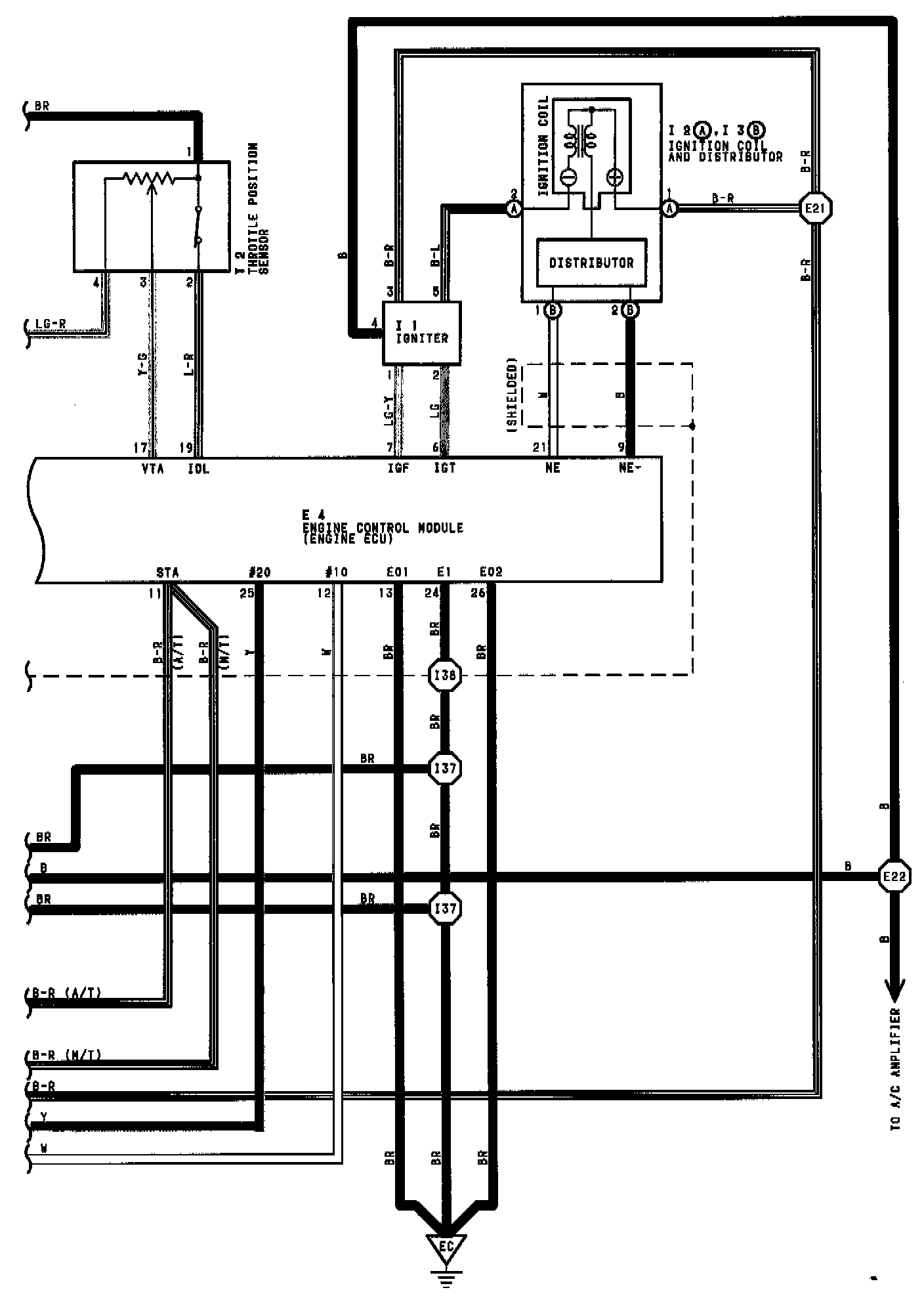

Engine Control Wiring Diagram:

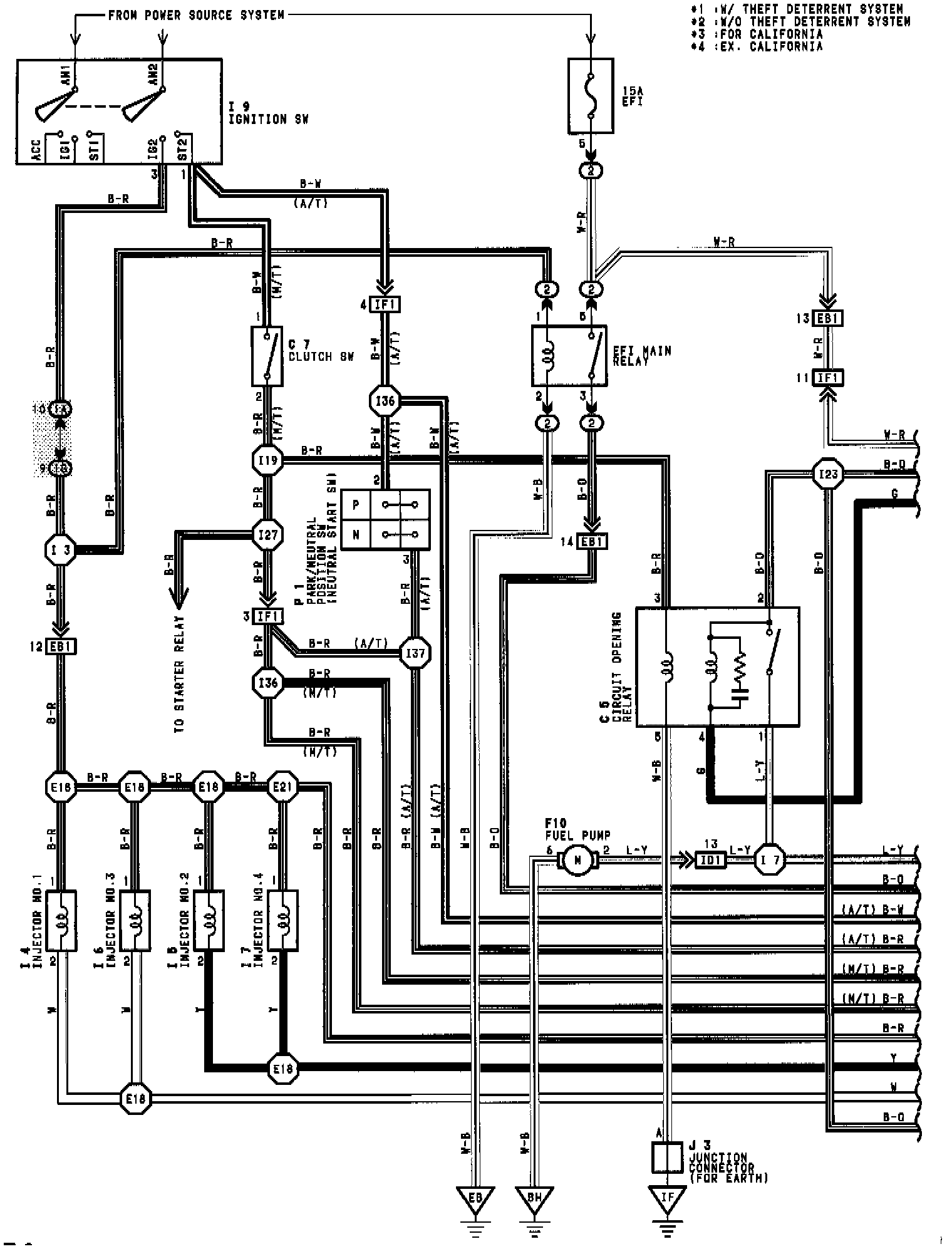

Engine Control Wiring Diagram:
