Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1994
>>
Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
Connector Views

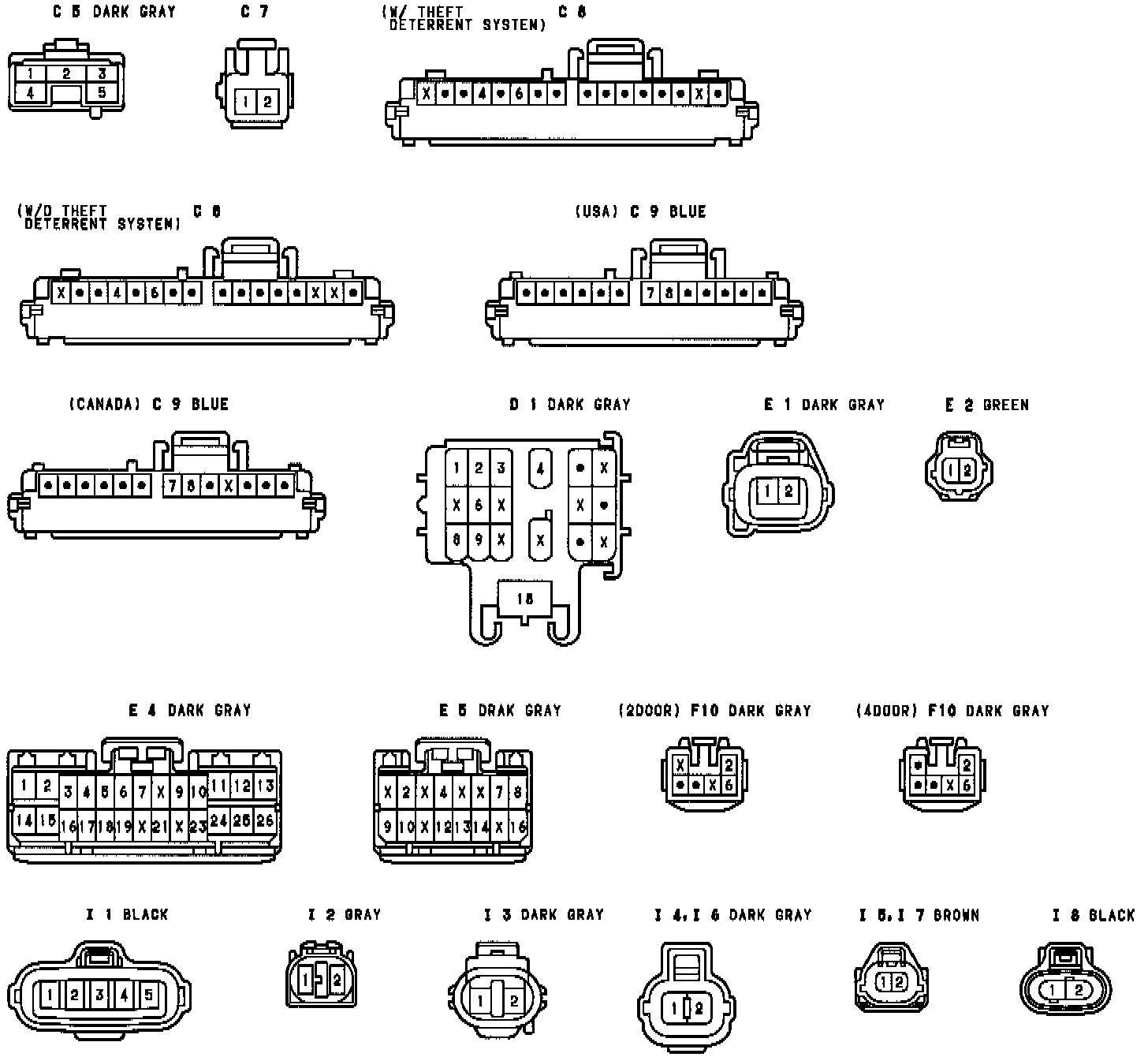

Engine Control Connector Views:
Engine Control Connector Views:
