Home
>>
Toyota
>>
1994
>>
Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

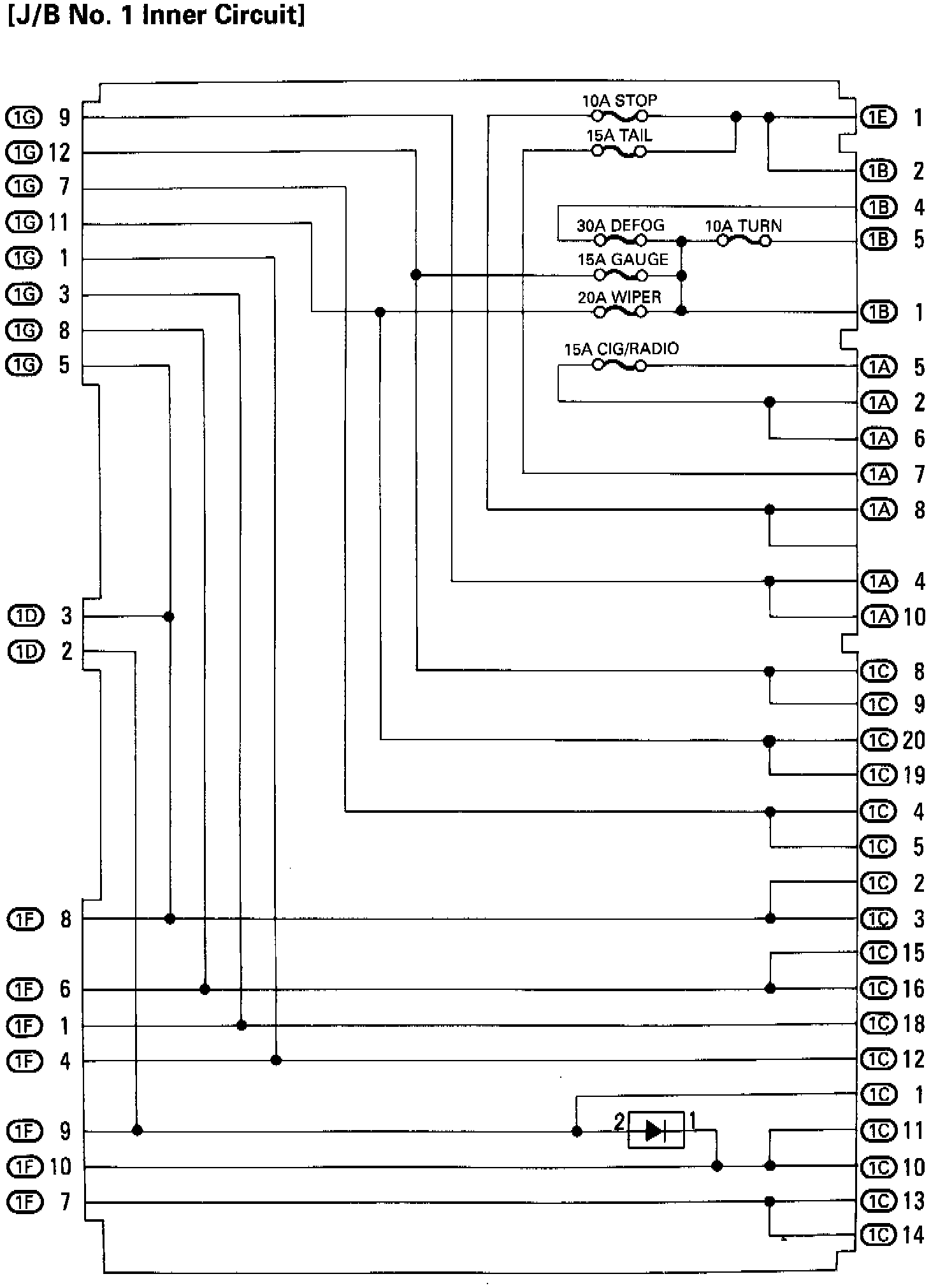

Fuse, Relay, and Junction Block Data
Fuse, Relay, and Junction Block Data
Relay Locations:
