Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse, Relay, and Junction Block Data
>>

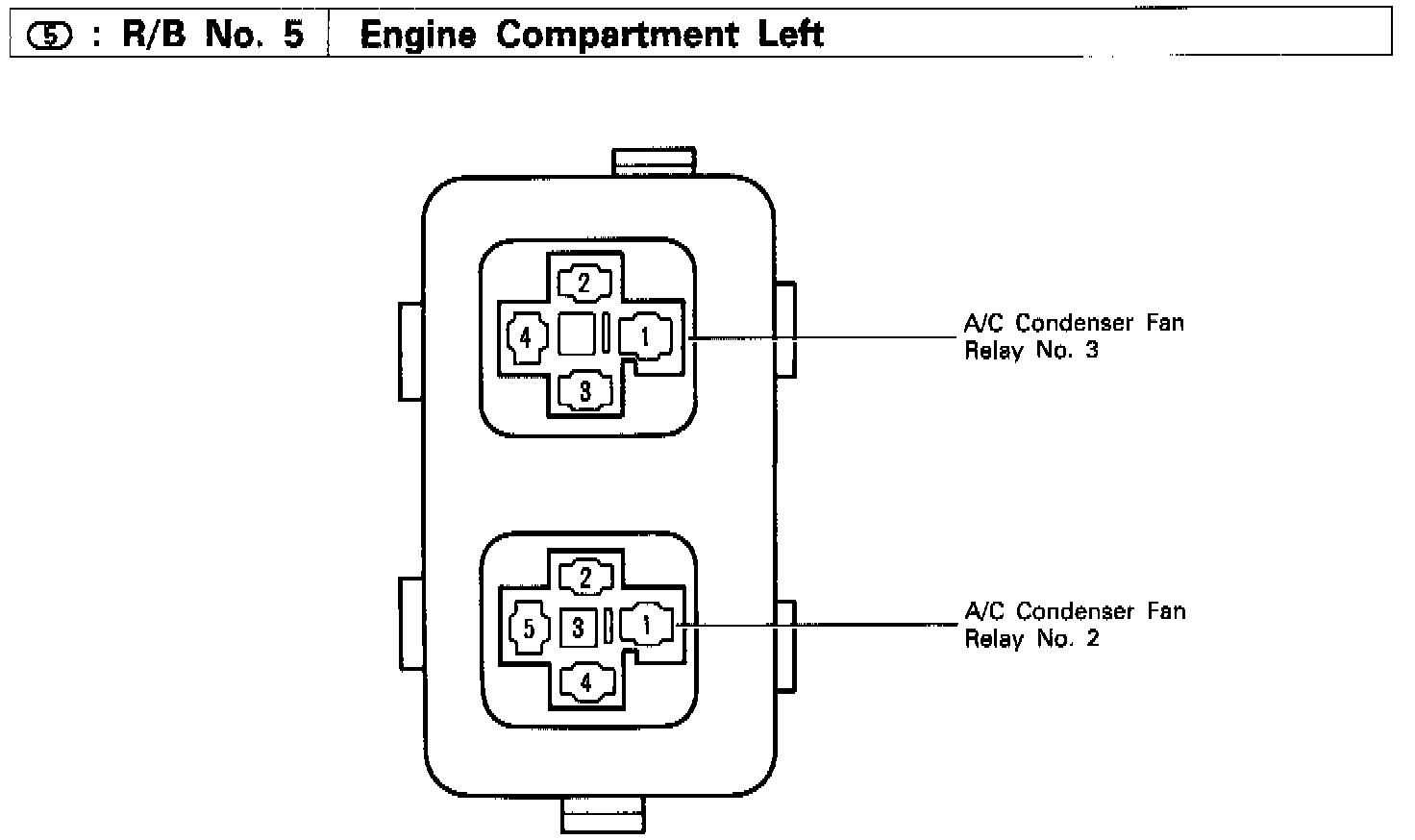

Relay Block No. 5 (Canada)
Relay Block No. 5 (Canada)
Relay Locations:
