Home
>>
Toyota
>>
1994
>>
Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Connector ID
Connector ID

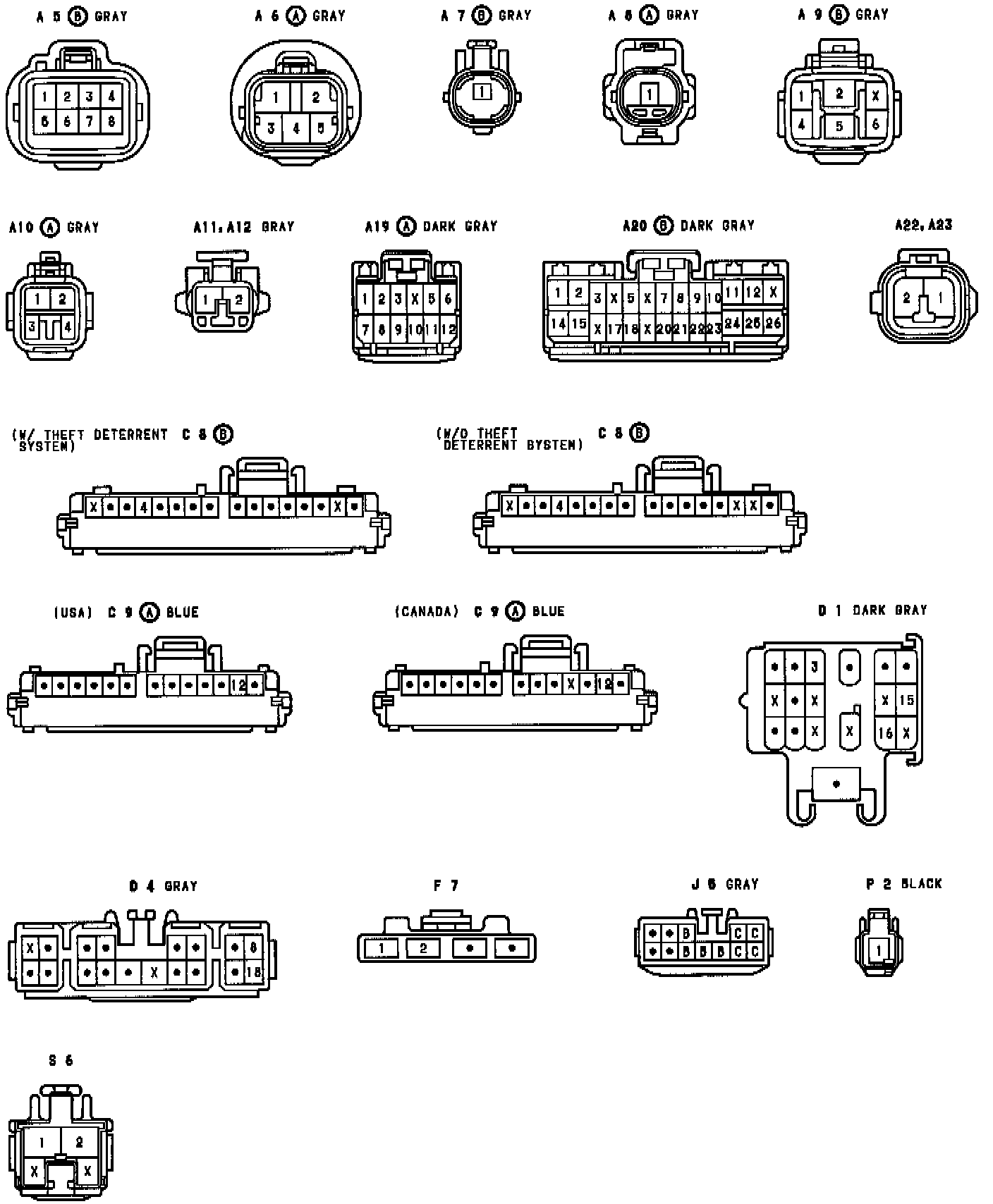

ABS (Anti-Lock Brake System) Connector Views:
