Exhaust Gas Recirculation: Description and Operation

PURPOSE
The Exhaust Gas Recirculation system is designed to re-introduce exhaust gases into the combustion cycle, lowering peak combustion temperatures and reducing the formation of Nitrogen Oxides (NOx).

OPERATION

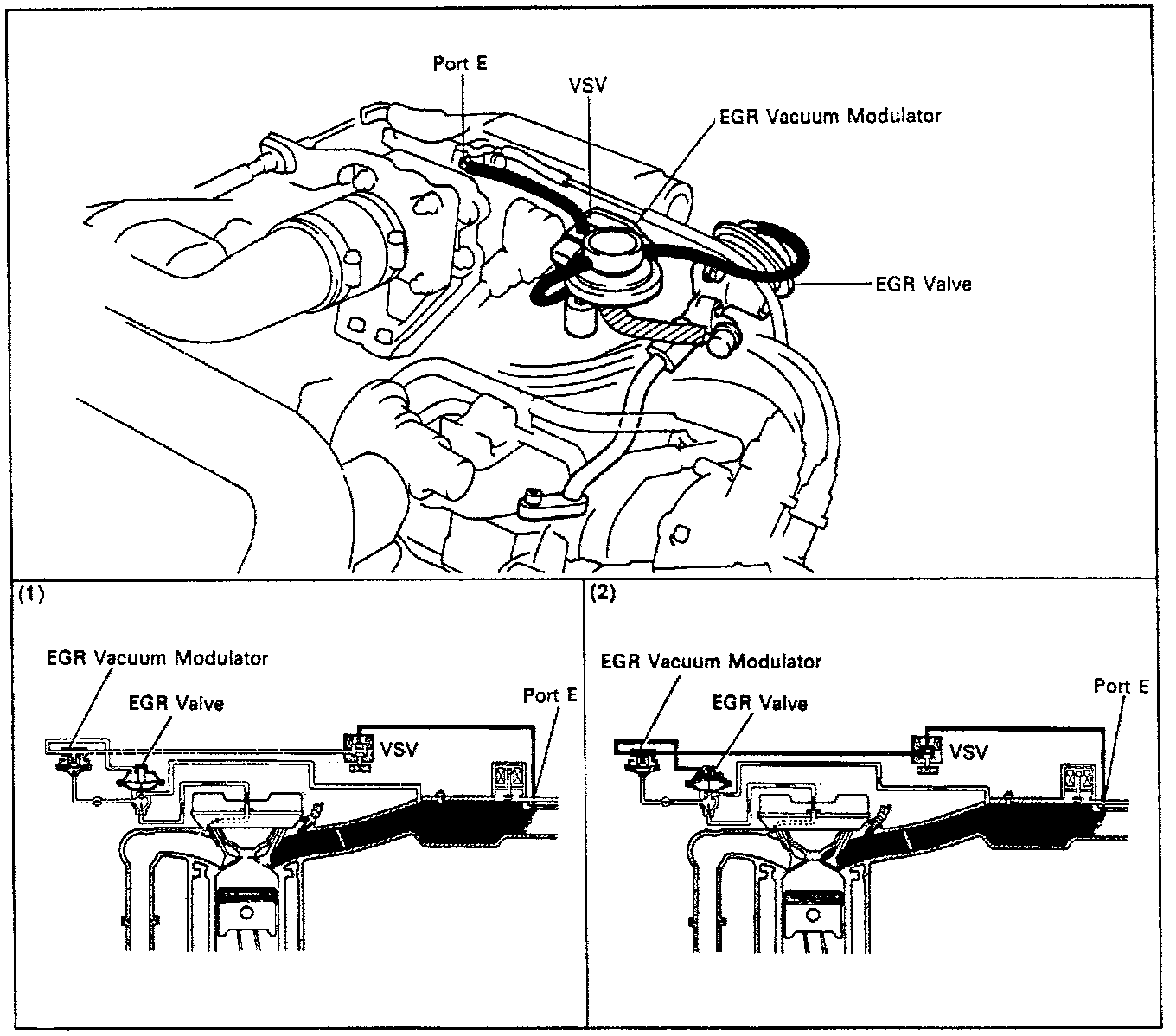

EGR System Component Layout:

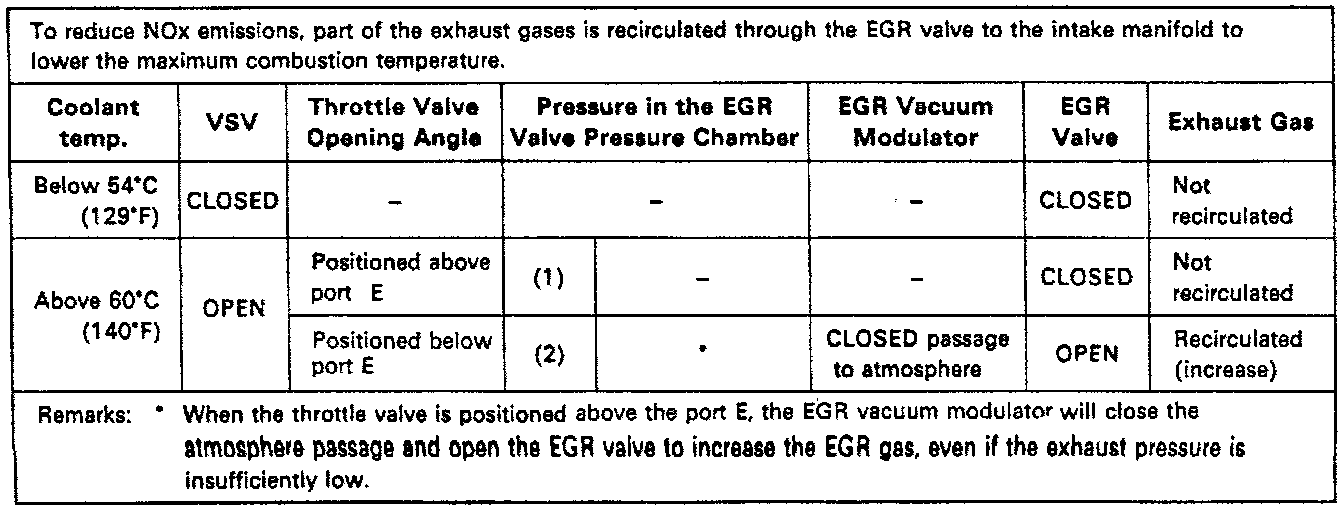

The table above defines the conditions required for EGR system operation.
