EGR Gas Temperature Sensor Signal Circuit
EGR Gas Temperature Sensor Signal Circuit

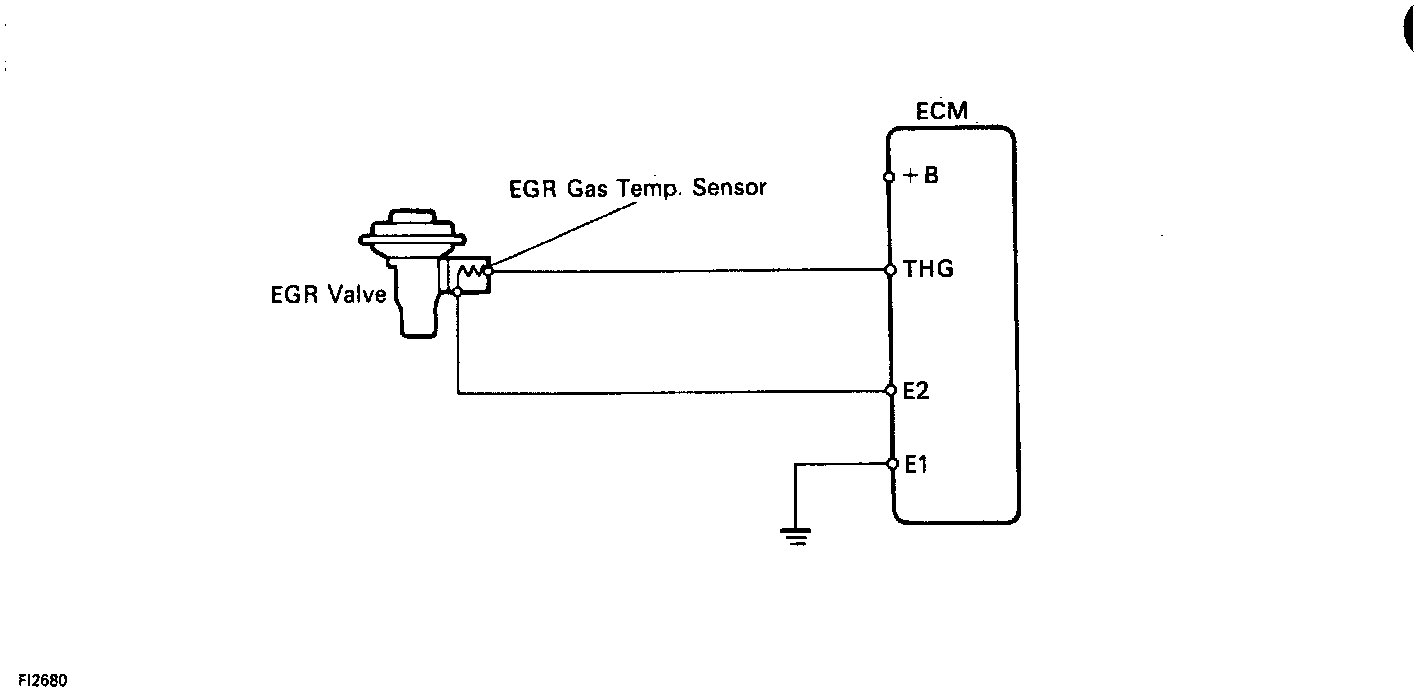

Schematic View Of EGR Gas Temperature Sensor Circuit:
