System Diagram
System Diagram

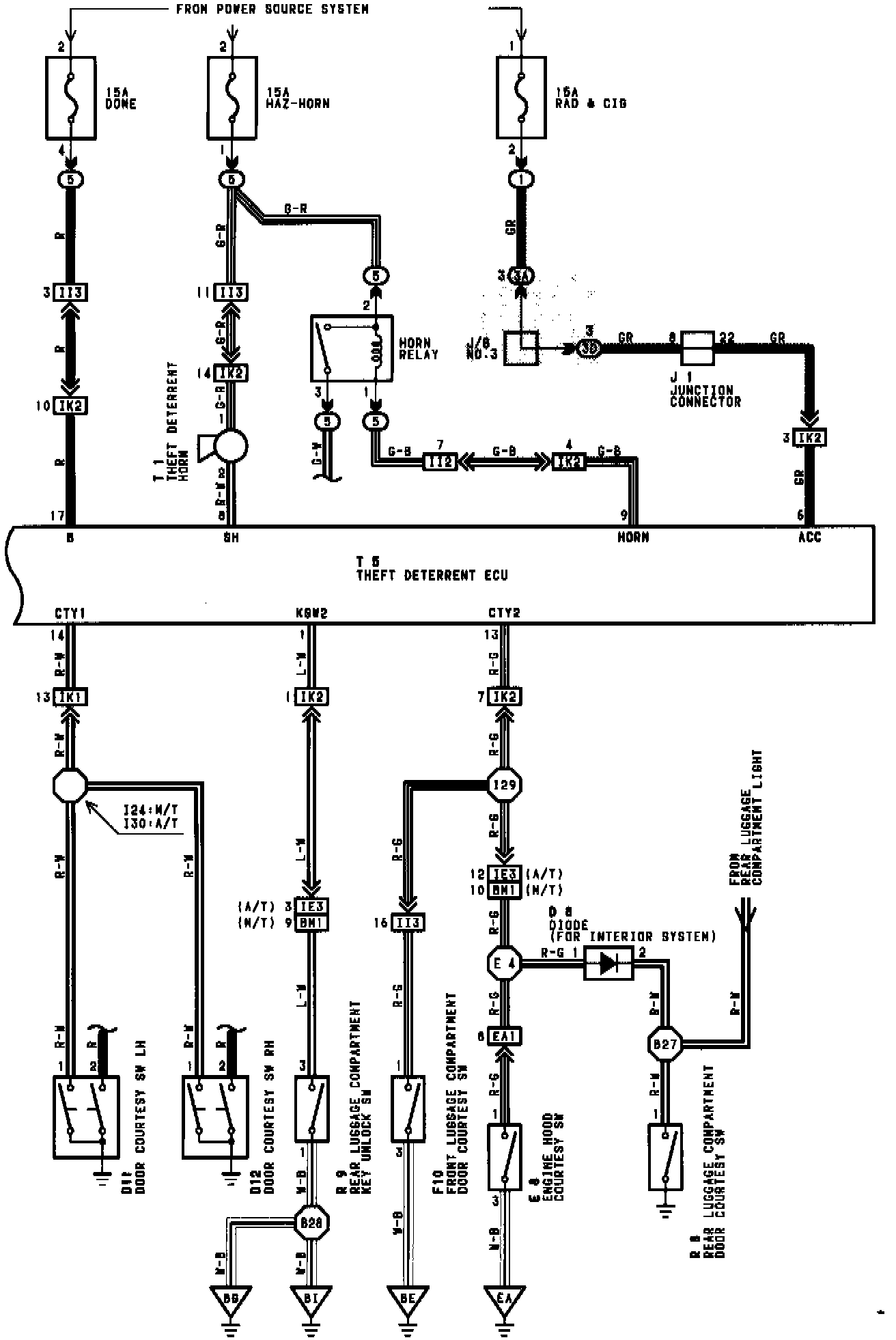

Theft Deterrent System Wiring Diagram:

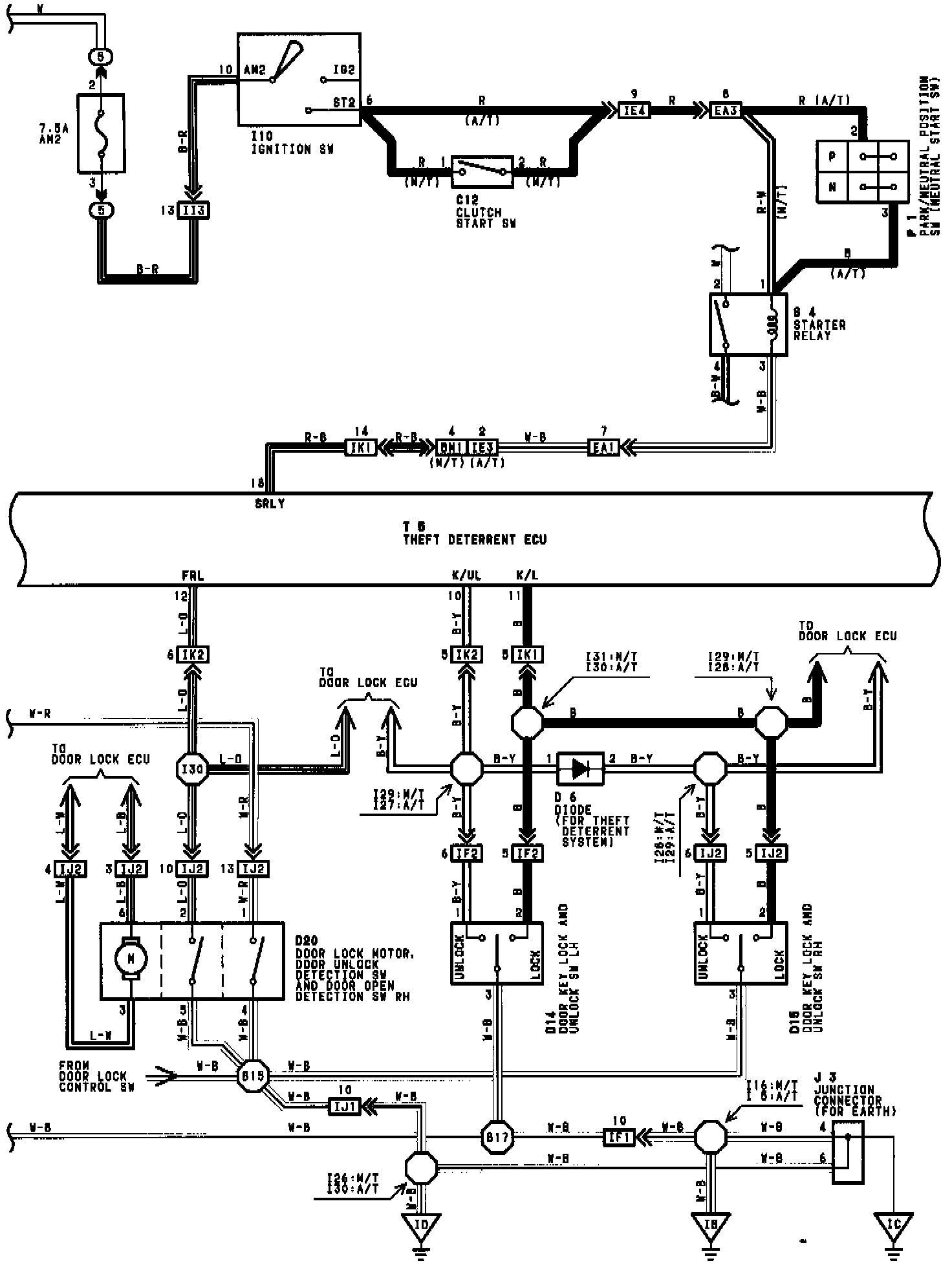

Theft Deterrent System Wiring Diagram:

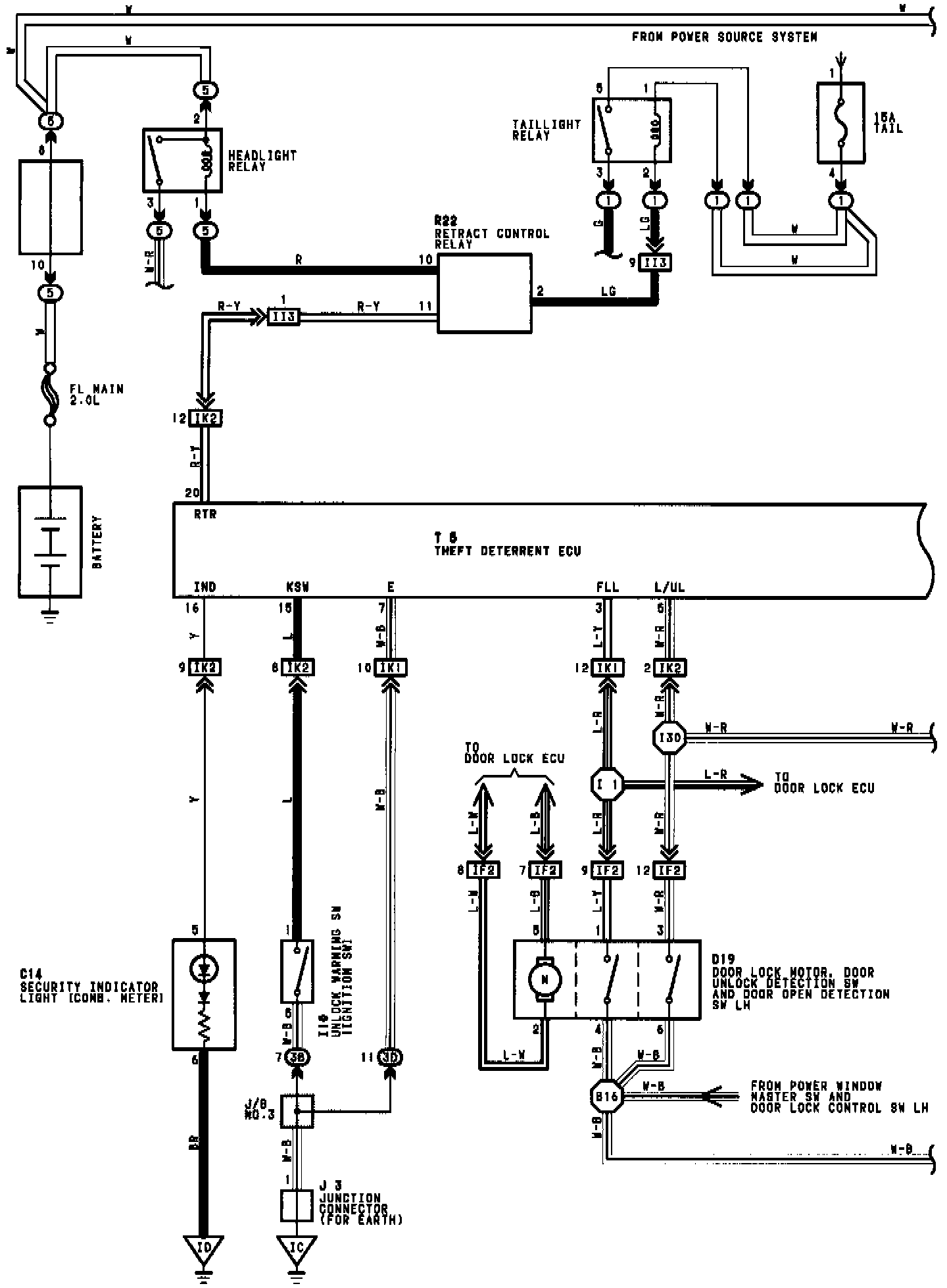

Theft Deterrent System Wiring Diagram:
