MR2 L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering
>>
System Diagram
System Diagram

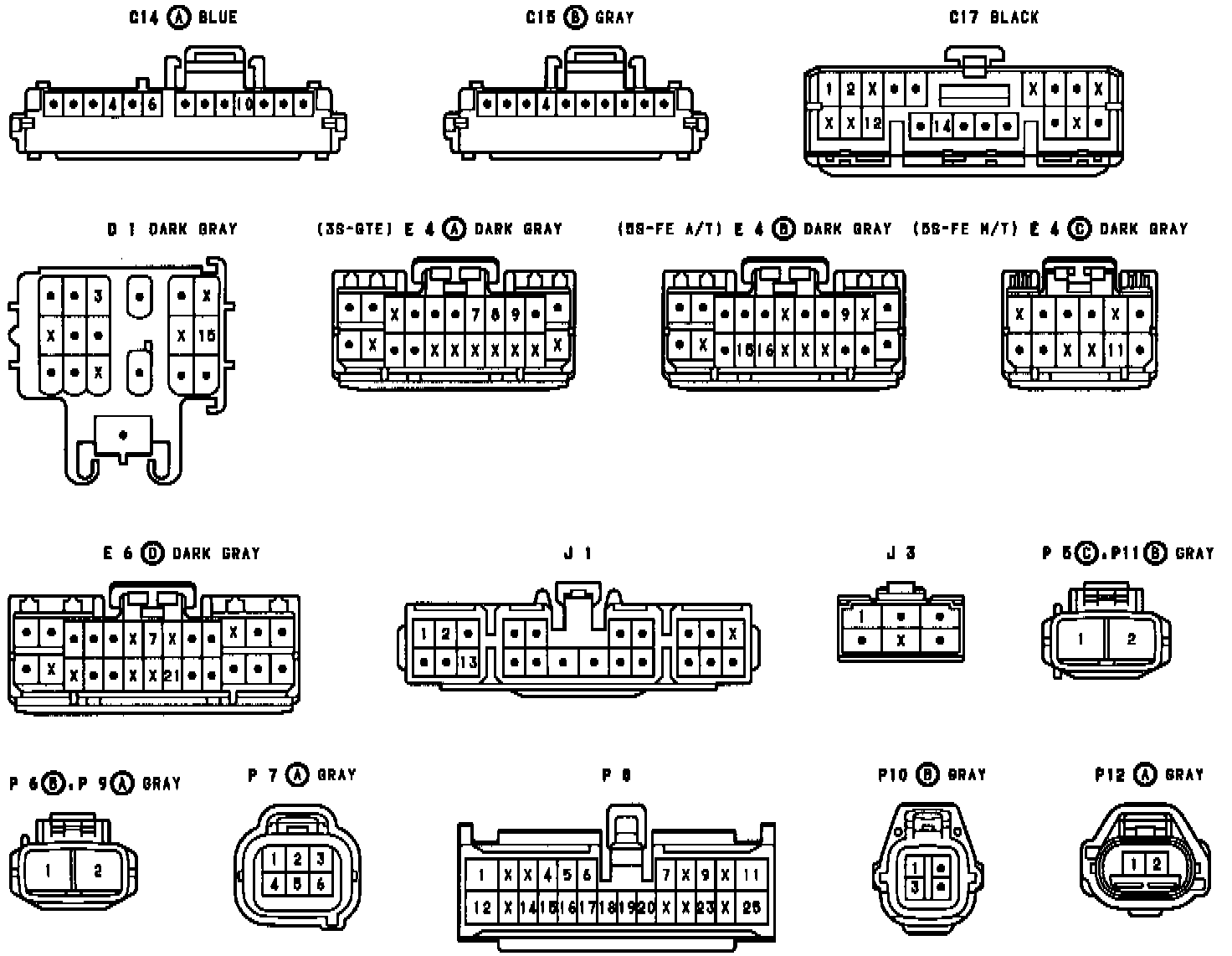

EHPS (Electro Hydraulic Power Steering) Connector Views:
