MR2 L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
Headlamp

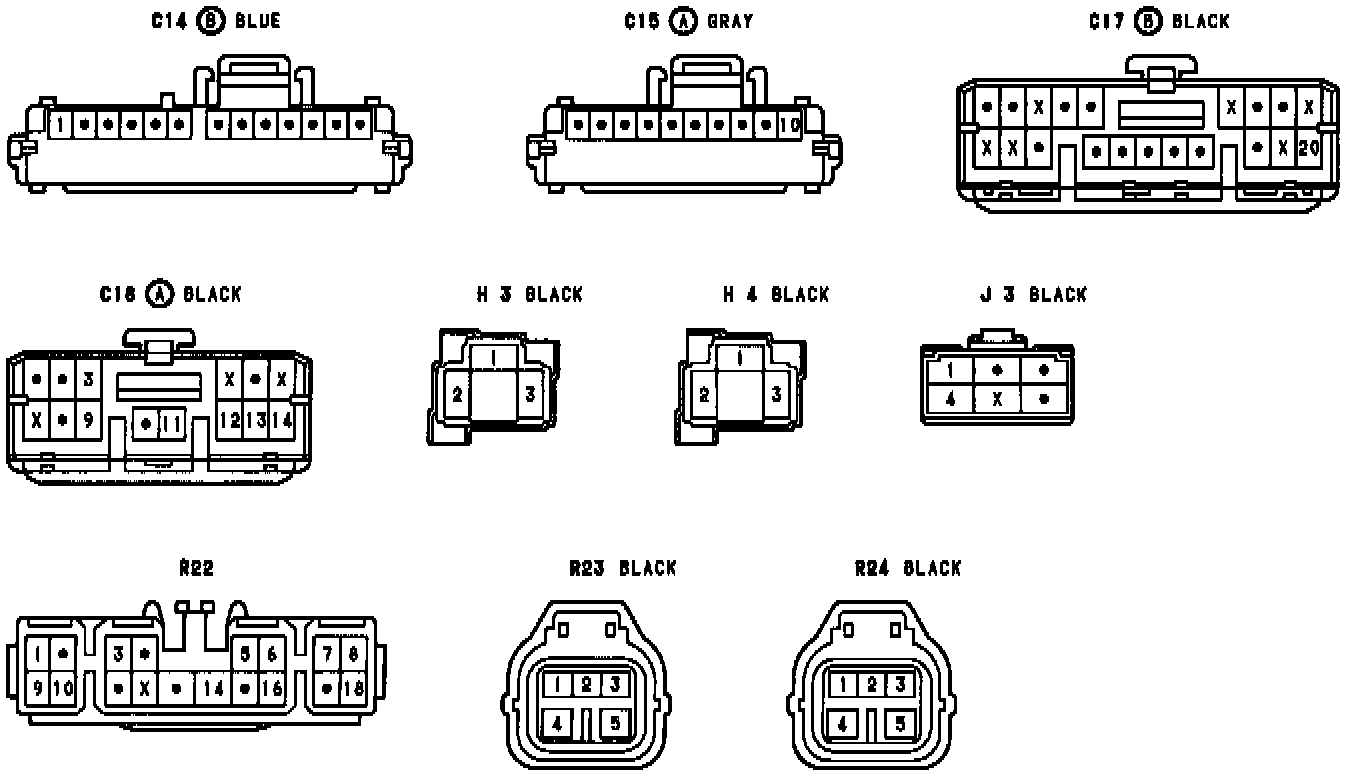

Light Auto Turn Off Connector Views:

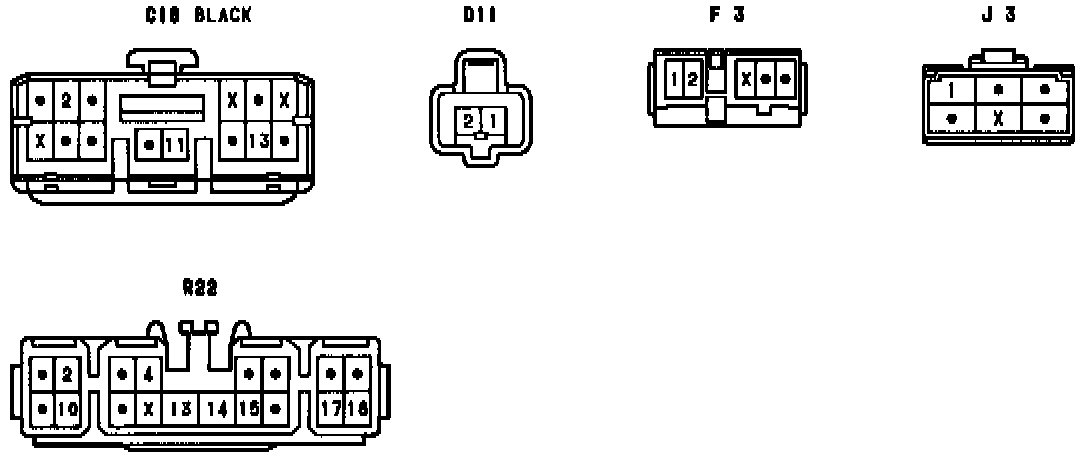

Headlight Connector Views:
