System Specifications

Second Coast Brake:

Oil Pump:

Direct Clutch:

Forward Clutch:

Front Planetary Gear:

Rear Planetary Gear:

First And Reverse Brake:

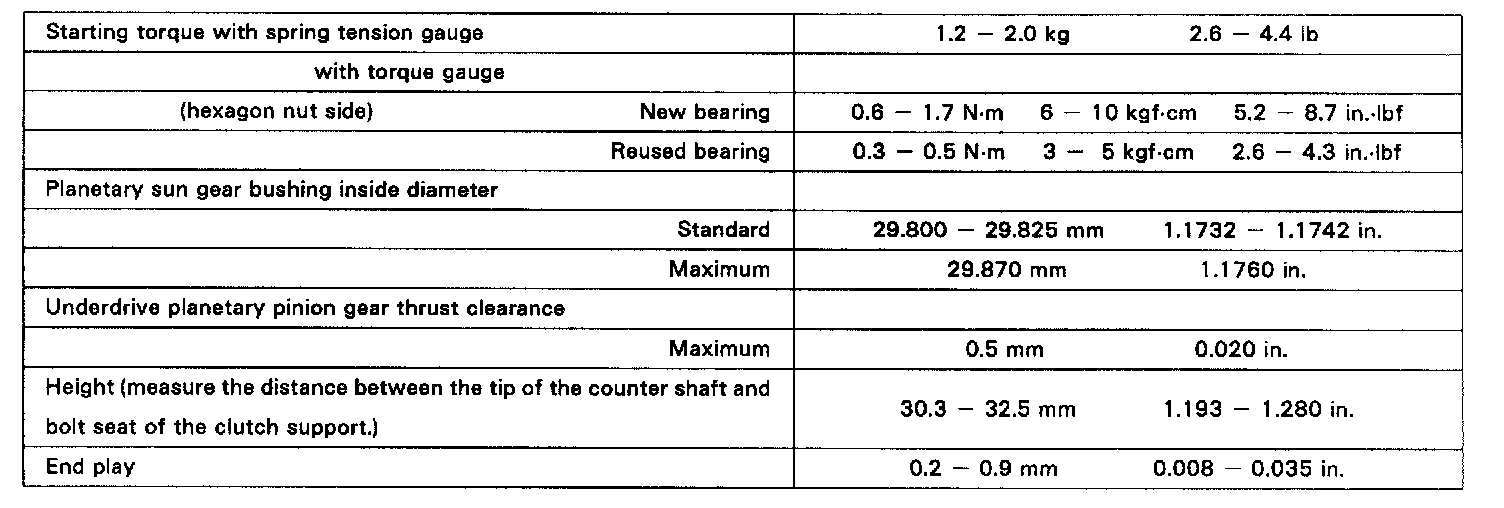

Counter Shaft:

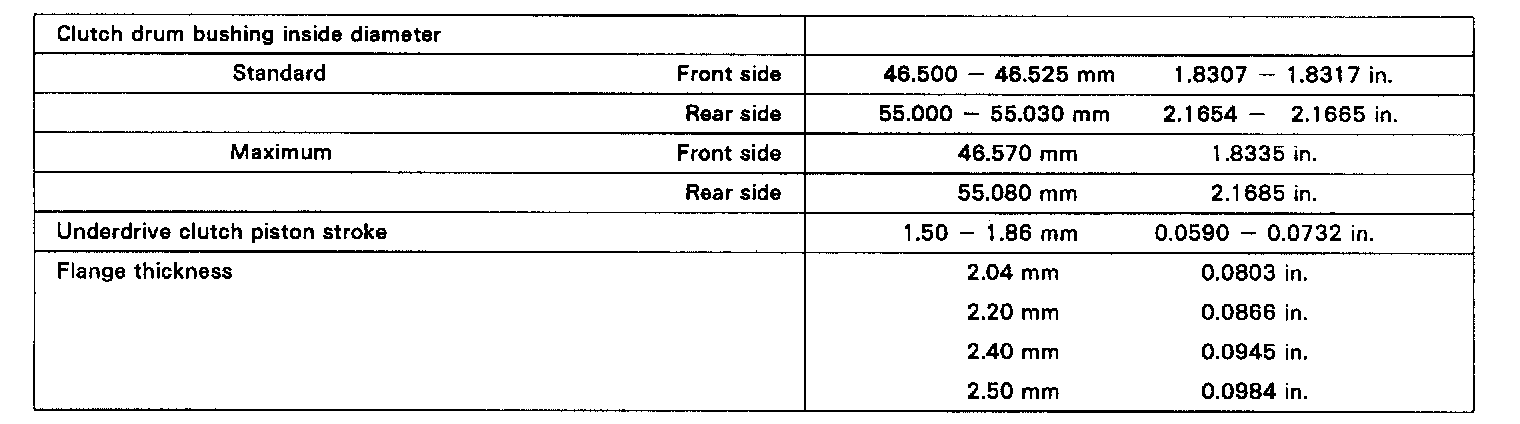

Underdrive Clutch:

Underdrive Brake:

Input Shaft:

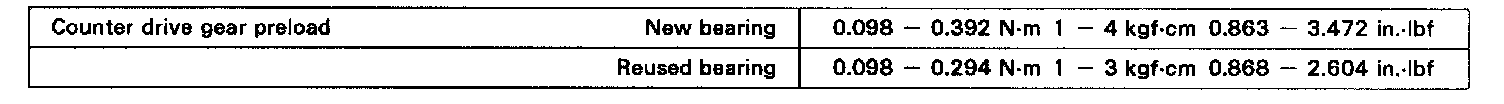

Counter Drive Gear:

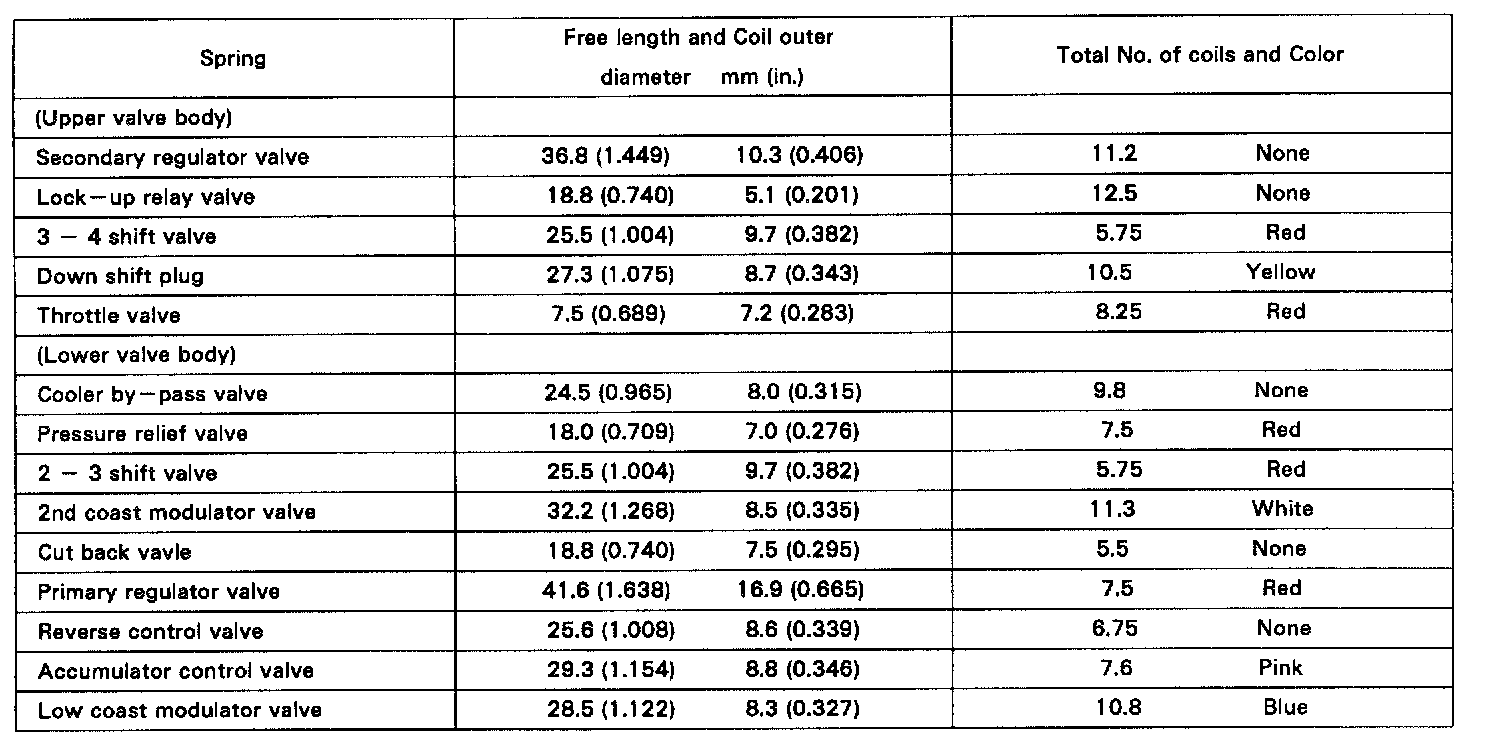

Valve Body Spring:

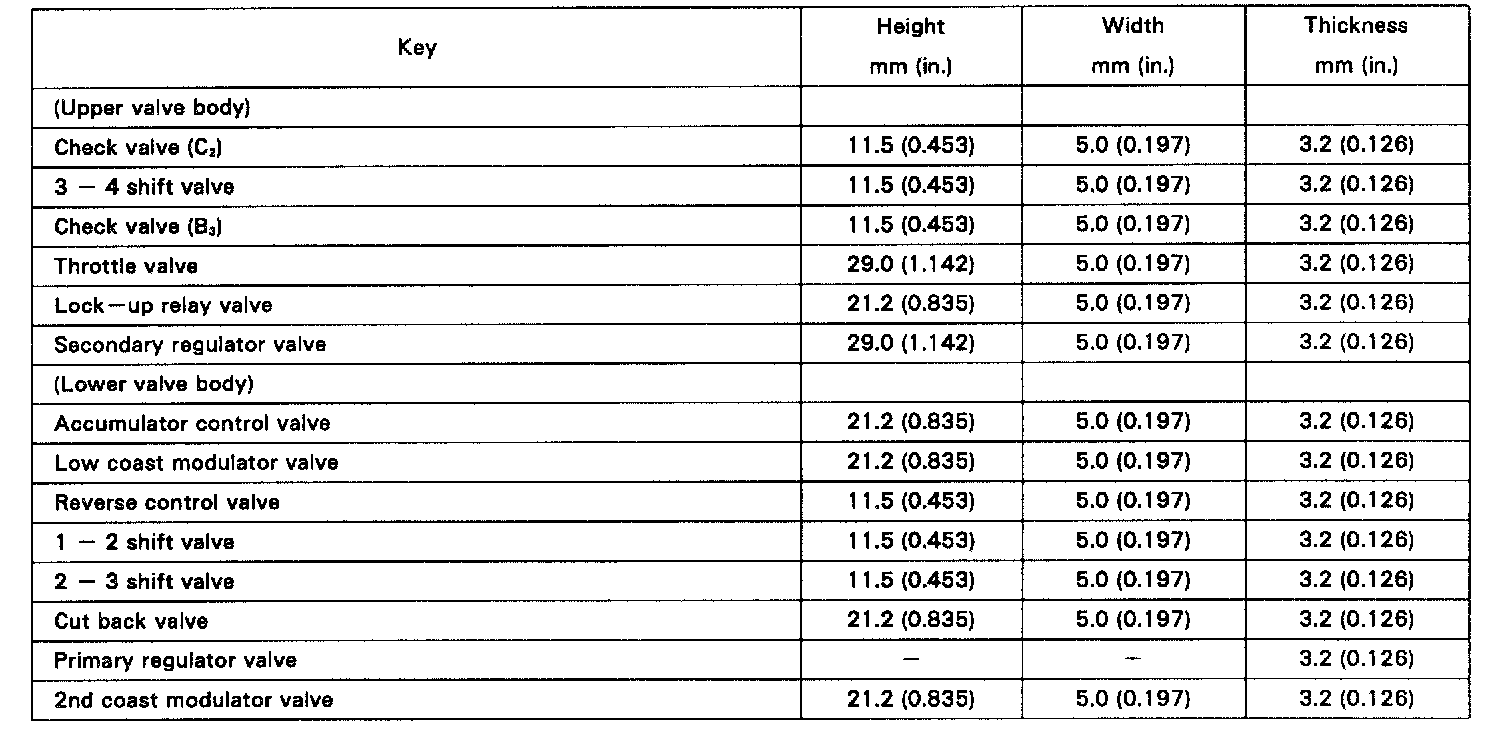

Valve Body Key:

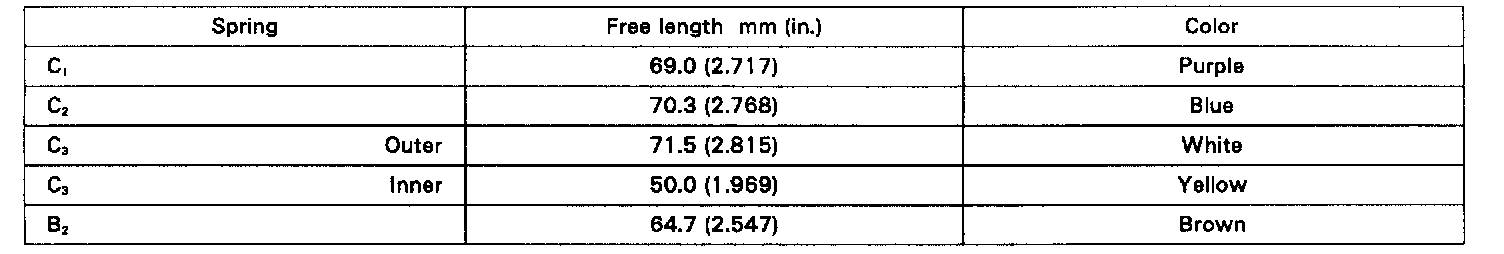

Accumulator Spring:

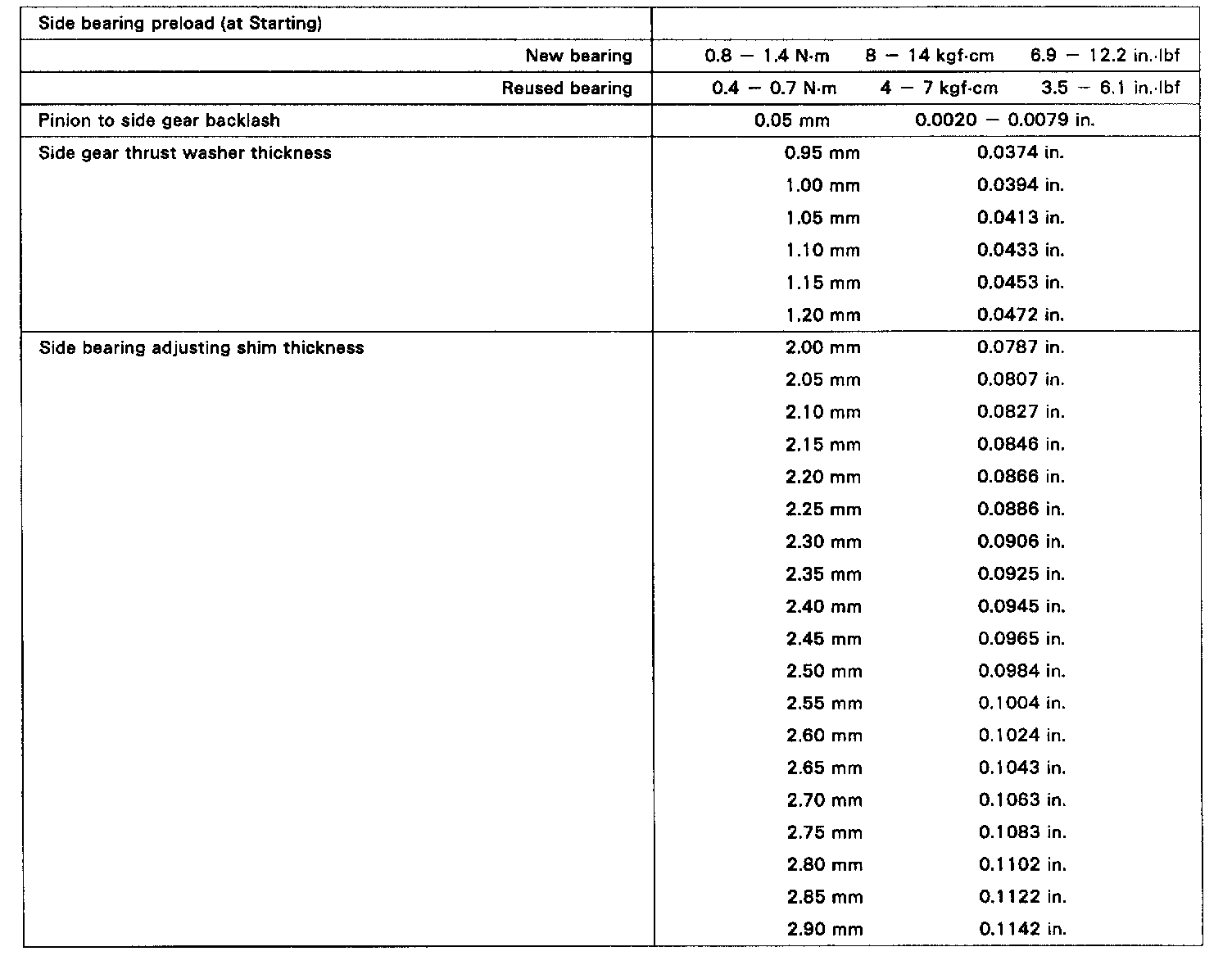

Differential Assembly:

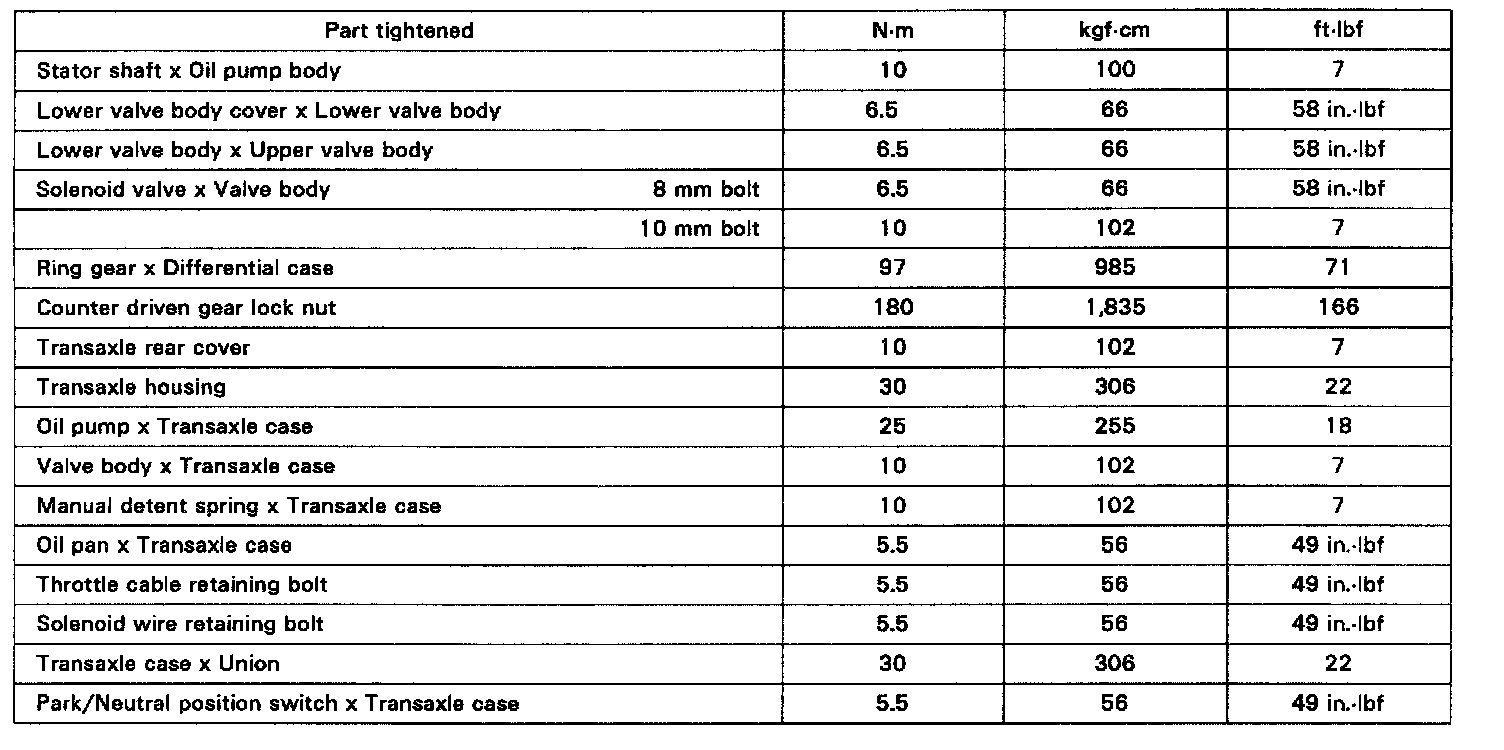

Torque Specifications:
