Home
>>
Toyota
>>
1994
>>
Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>

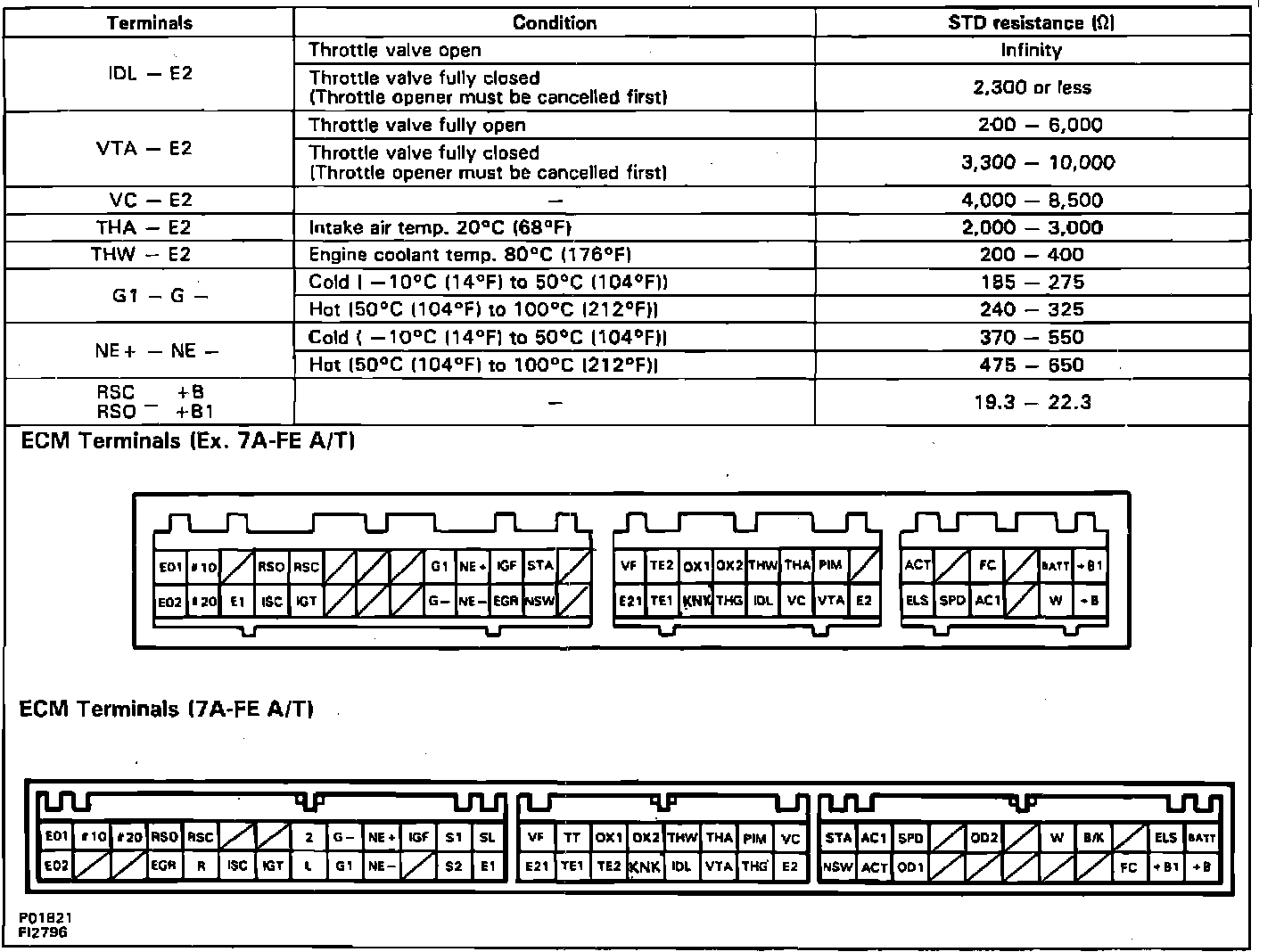

ECM Resistance Charts
ECM Resistance Charts
ECM Terminal Resistance:
