Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

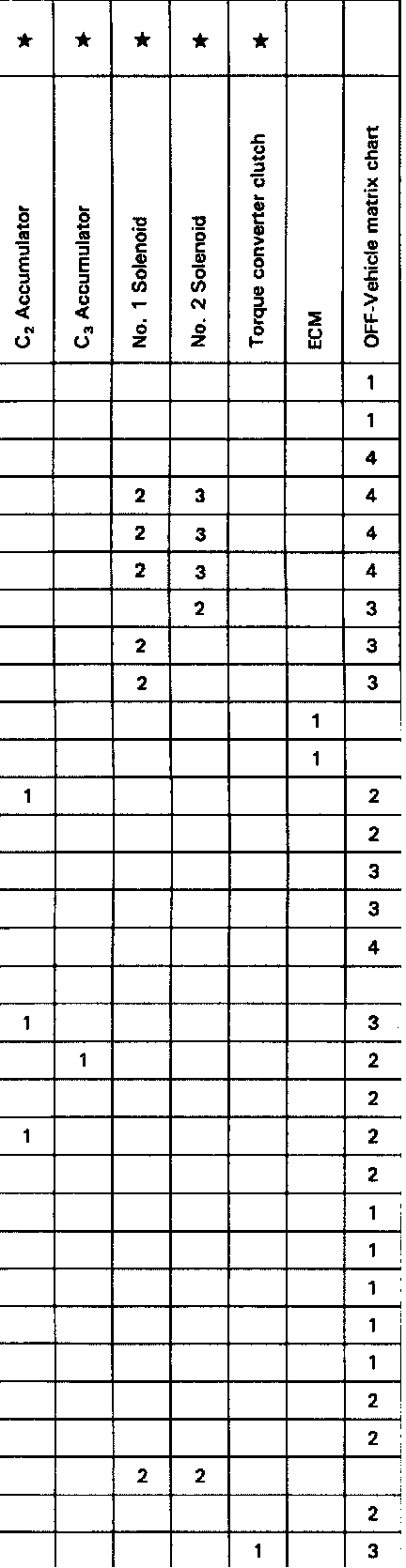

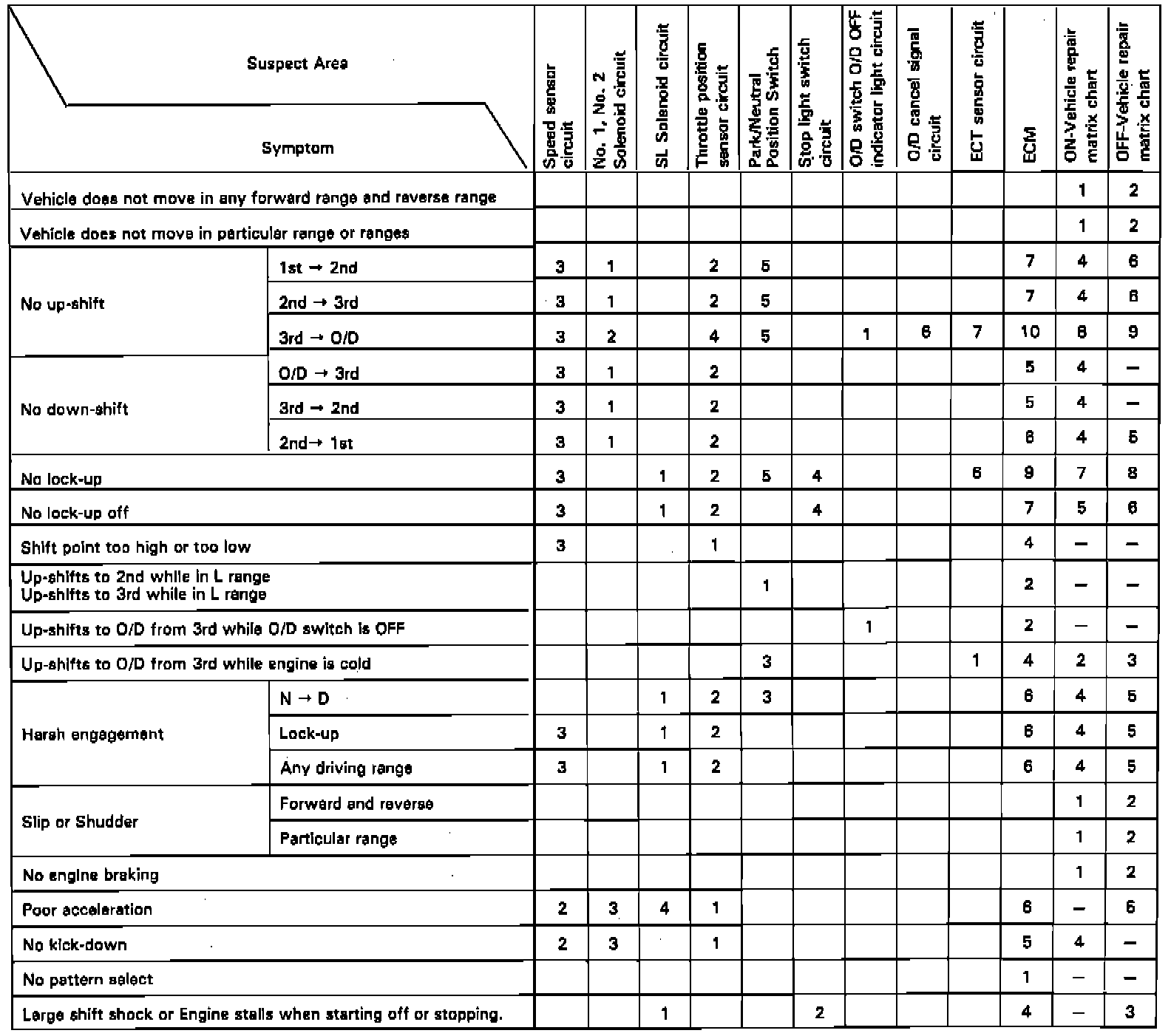

Matrix Chart - Diagnosis By Symptom:
ELECTRONIC CIRCUIT

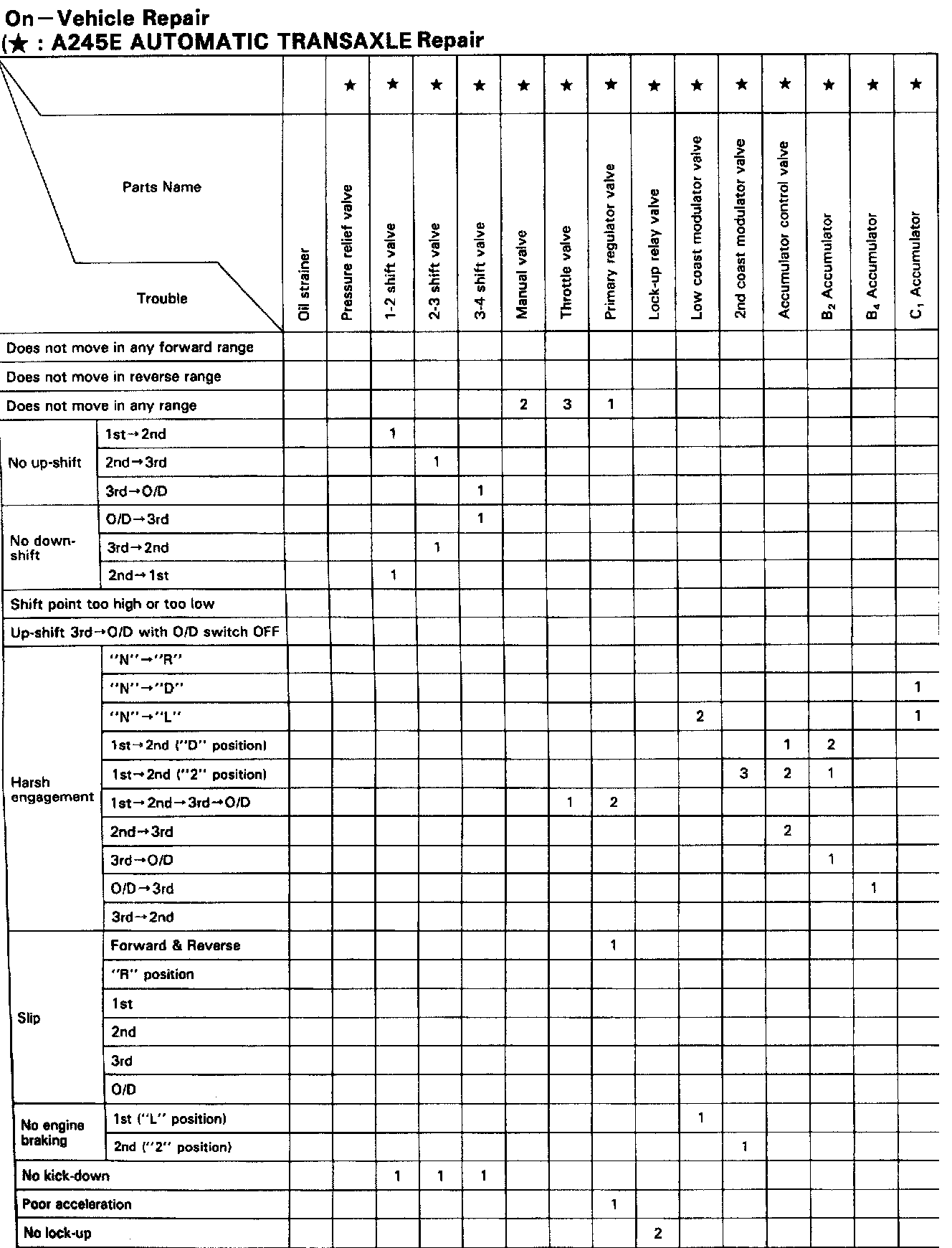

ON VEHICLE REPAIR

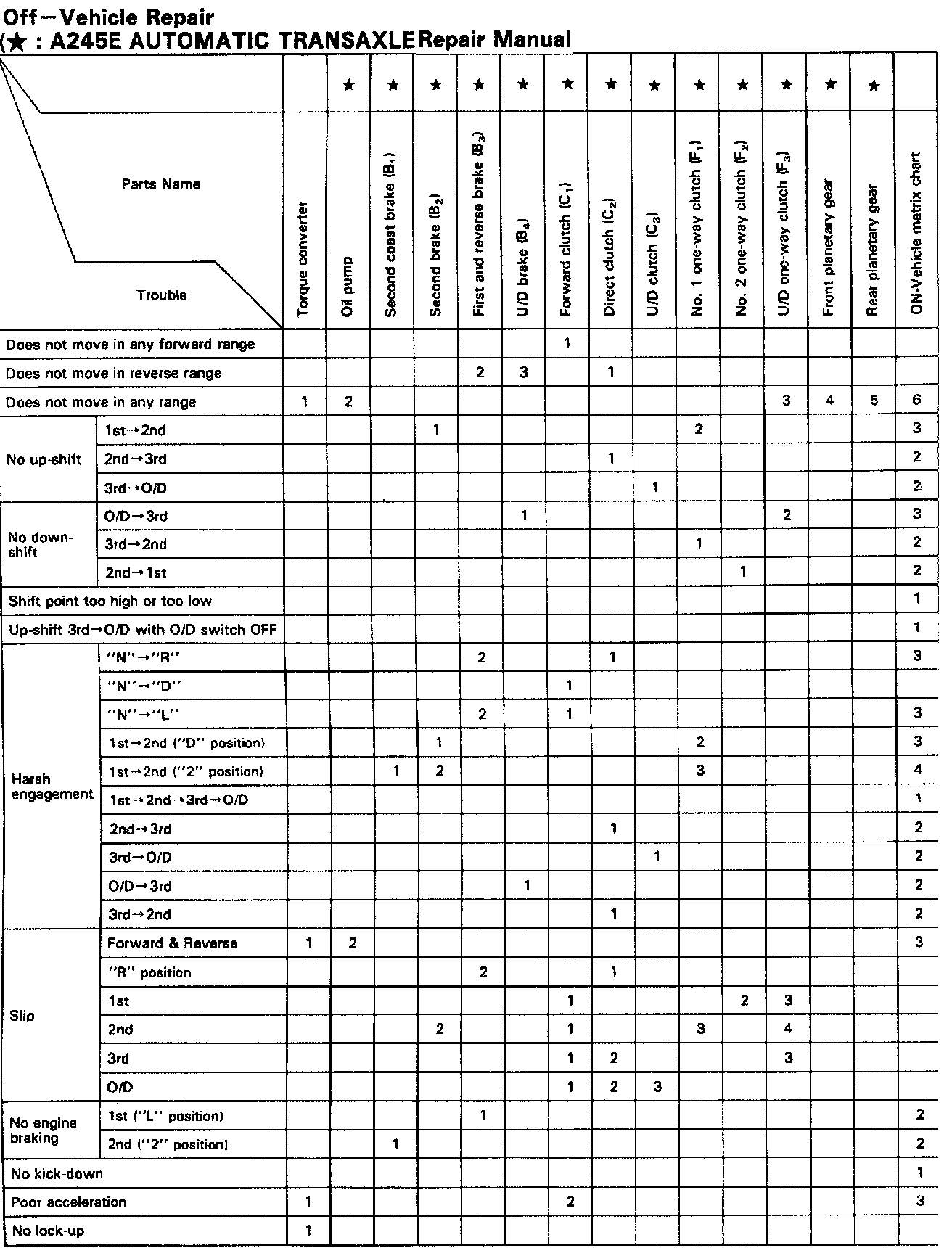

OFF VEHICLE REPAIR
