Pinout Values and Diagnostic Parameters

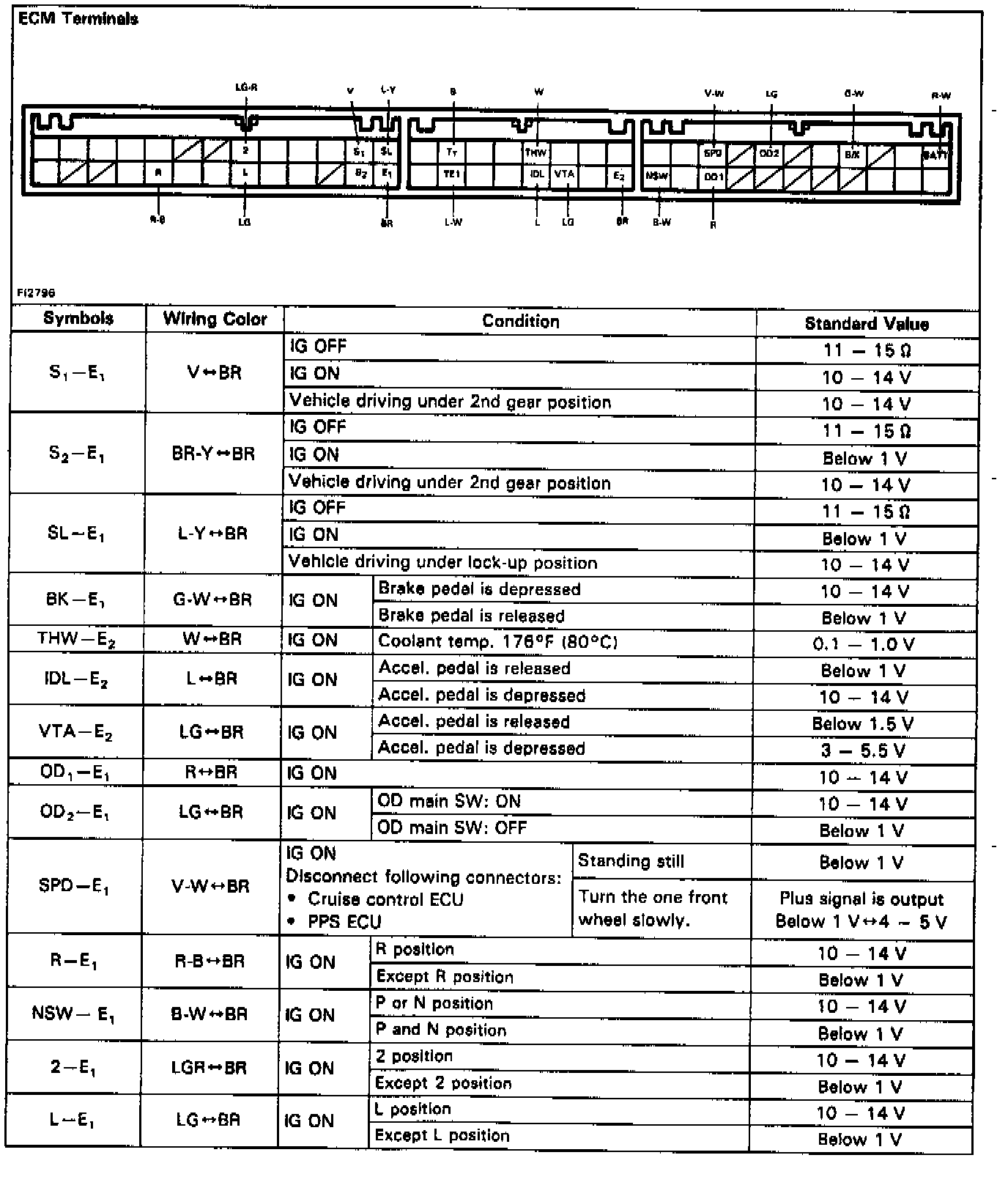

Expected ECM Terminal Voltages:

- Confirm battery is fully charged.
- Observe expected voltage as compared to ignition switch condition.
- DO NOT short test leads to ground, positive or together.
