Home
>>
Toyota
>>
1994
>>
Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

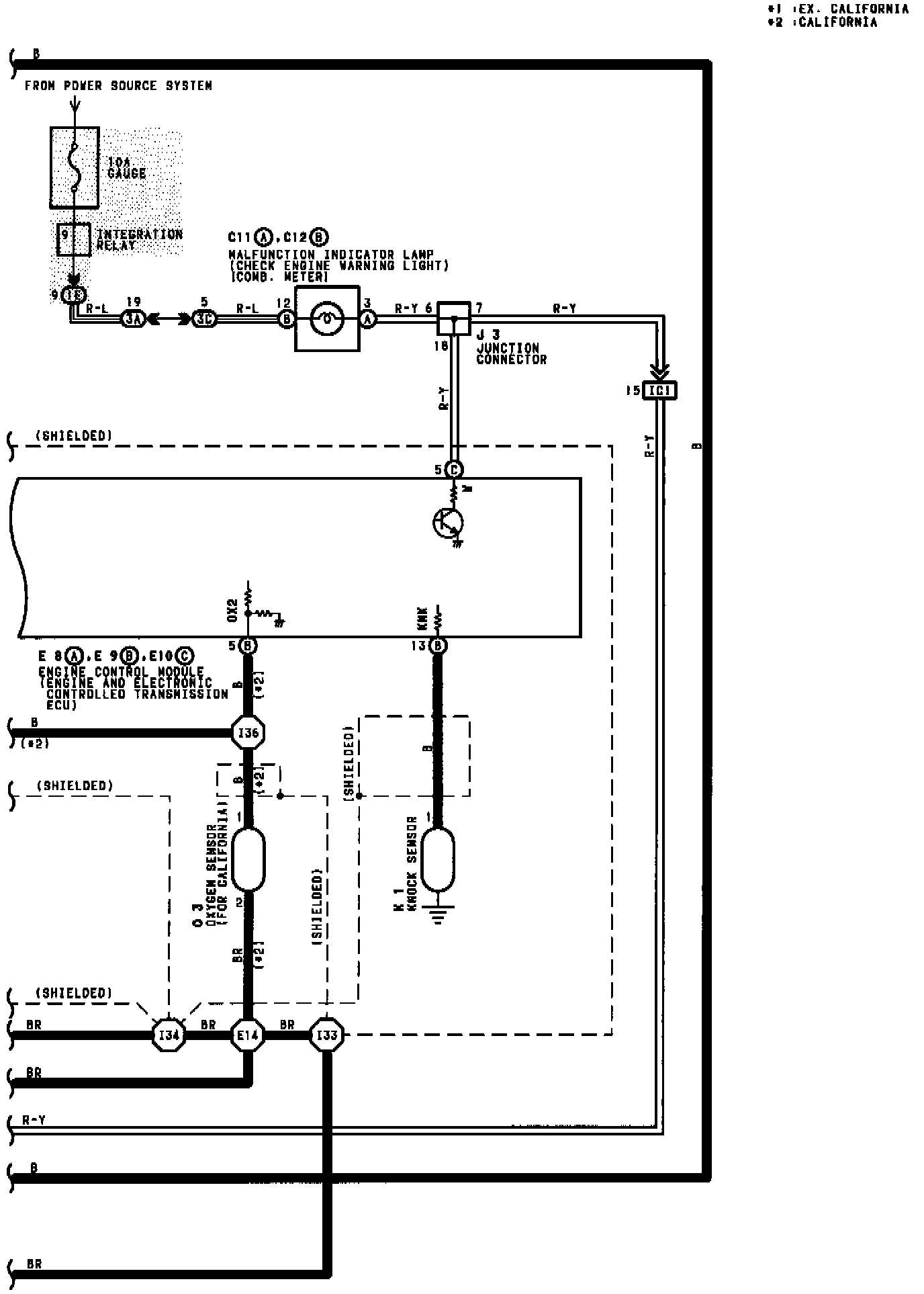

Engine Control (A/T) - (Part 4 Of 4):
