Control Module HVAC: Testing and Inspection

AMPLIFIER INSPECTION

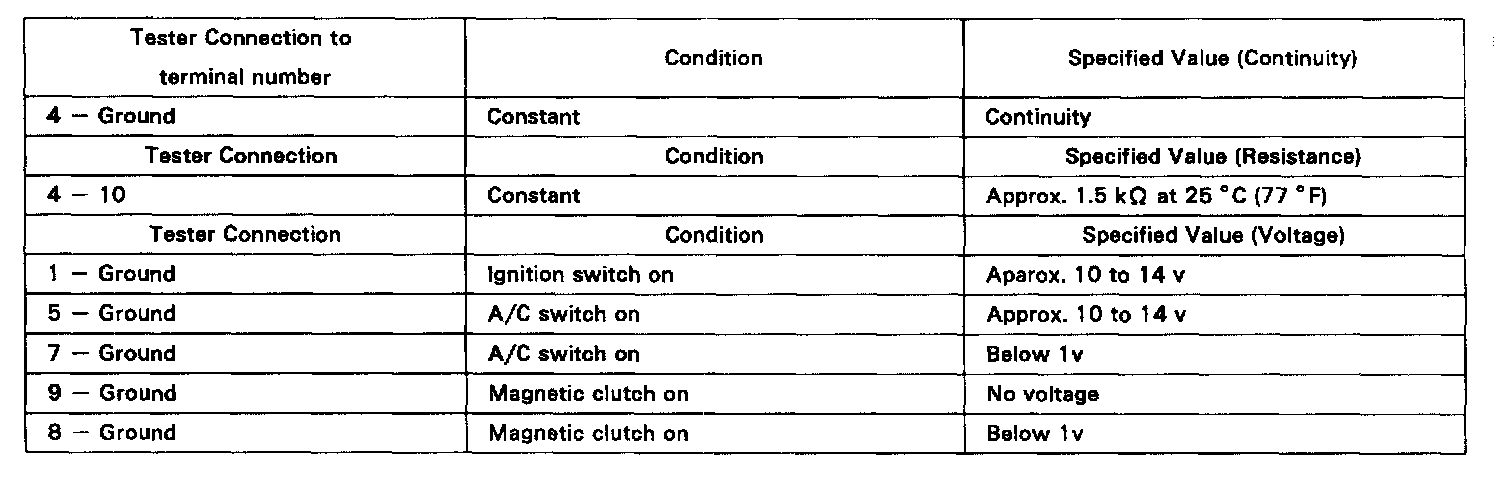

Inspect A/C Amplifier Connector On Wire Harness Side

Test conditions:
Ignition switch ON

Temperature control lever to MAX COOL

Blower switch ON
