Heater - Control Knob Retention Improvement

REF.: HEATING & AIR CONDITIONING

NO.: AC95-OO2

DATE: JUNE 16, 1995

MODEL: AE

HEATER CONTROL KNOB RETENTION IMPROVEMENT

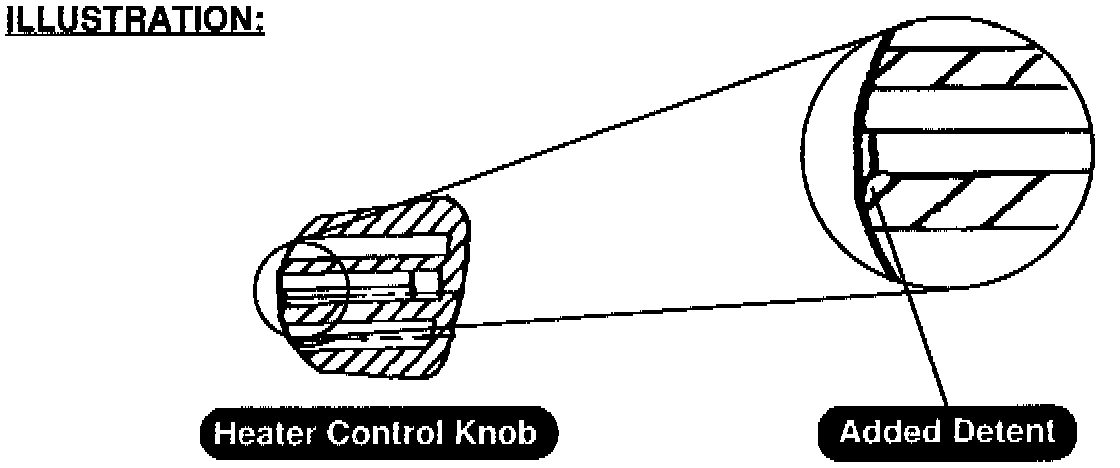

To improve retention of the Heater Control Knobs on North American built Corollas, a production change has been made. The inner dimension of the knob has been modified to provide an audible "click" when installed properly.

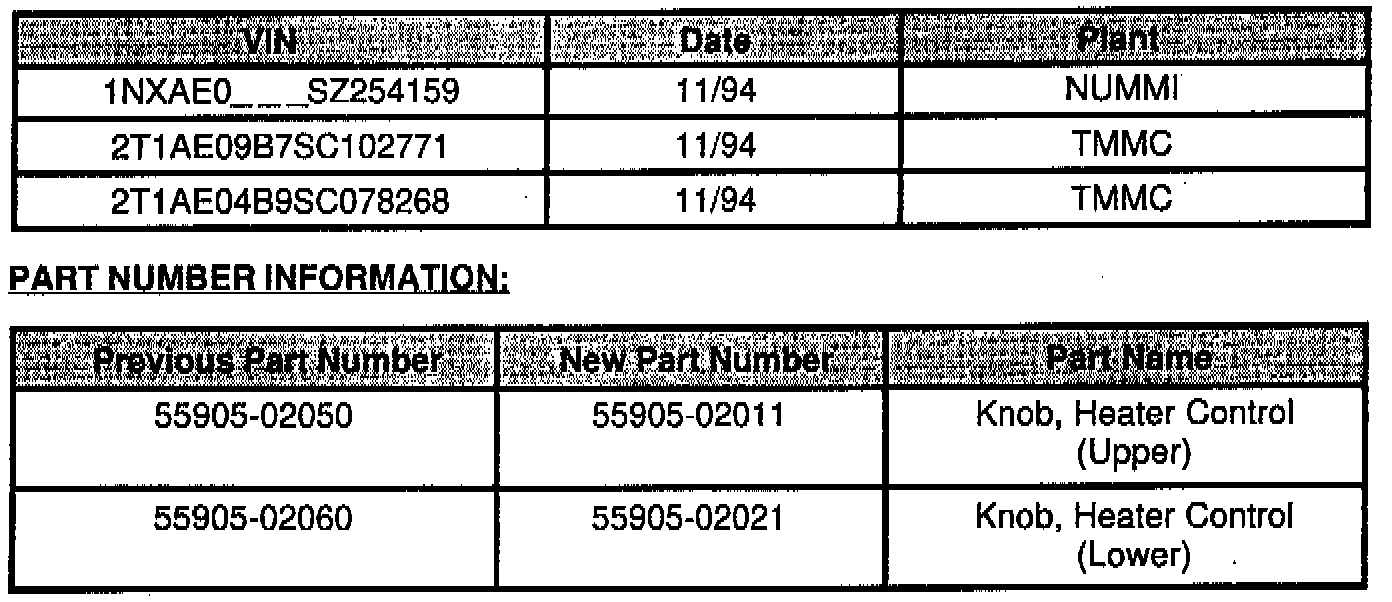

Production Effective

INTERCHANGEABILITY:

New Heater Control Knobs are interchangeable with previous vehicles.
