Home >> Toyota >> 1994 >> Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> With M/T

With M/T

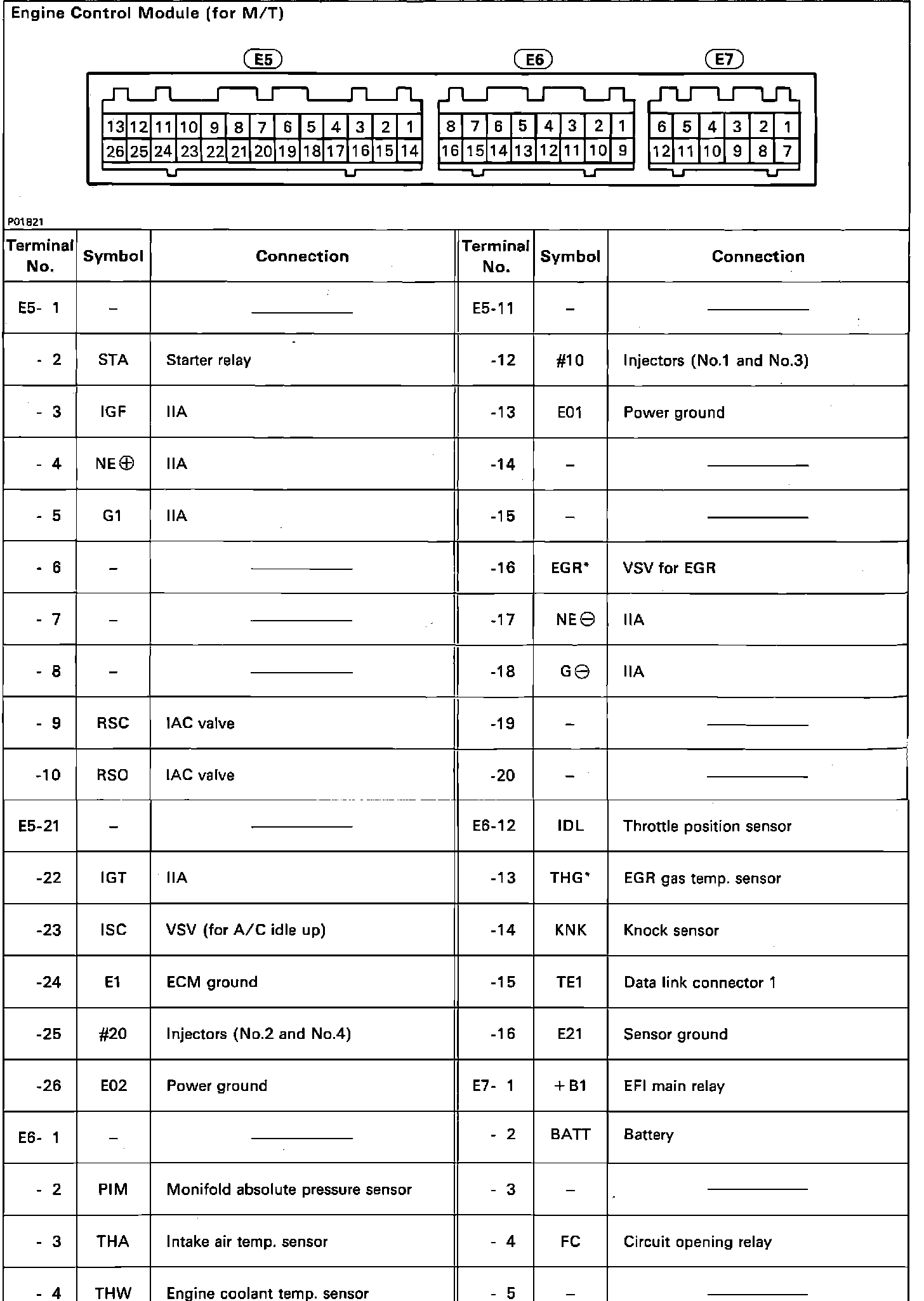

3��ECM Terminal Identification:
