Interior Trim - Instrument Panel Register Sub-Assembly

REF: BODY

NO.: BO95-004

DATE: JULY 14, 1995

MODEL: AE (TMC)

INSTRUMENT PANEL REGISTER SUB-ASSEMBLY

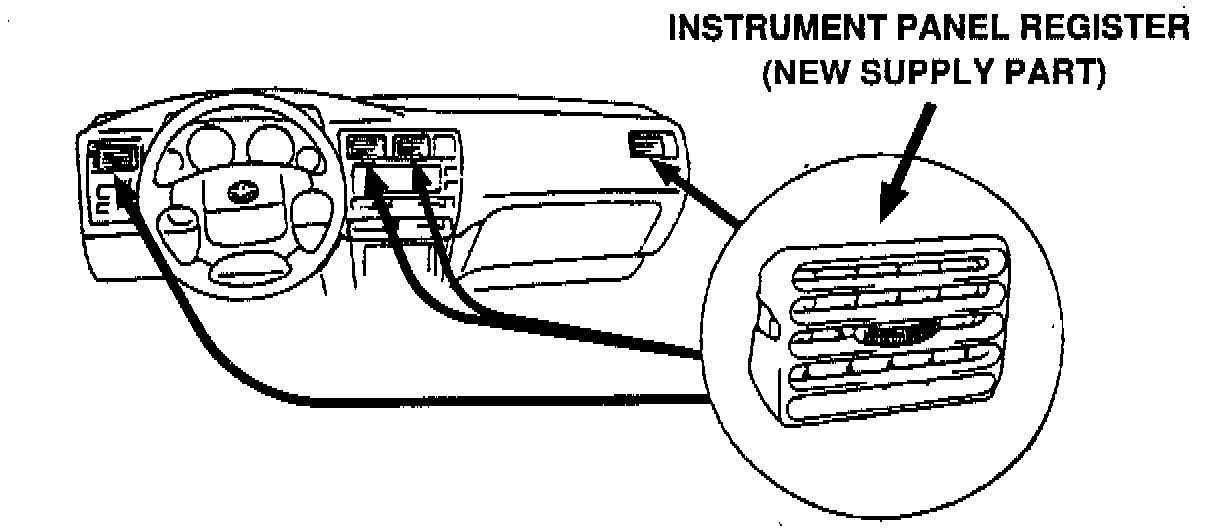

In order to improve serviceability on '93-'95 TMC built Corollas, the instrument Panel Registers are now available as separate supply parts as shown below:

REPAIR PROCEDURE:

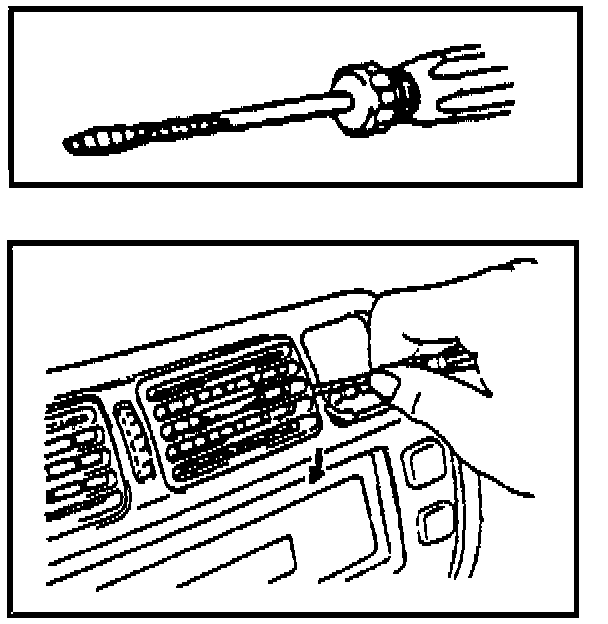

1. Apply protective tape to the blade of a small flat screwdriver.

2. Remove the Instrument Panel Register by gently prying out near the Hinge Pins on the Register.

INSTRUMENT PANEL REGISTER SUB-ASSEMBLY




NOTE:

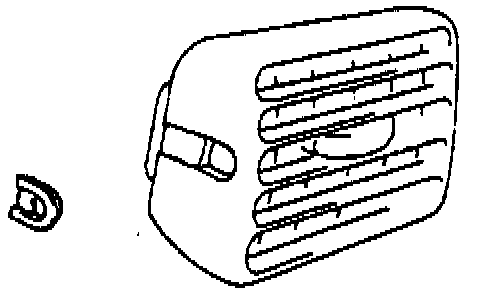

As shown in the illustration, the instrument panel Register is held in position by a removable collar on one side. During removal, be careful not to drop the Collar into the duct.




HINT:

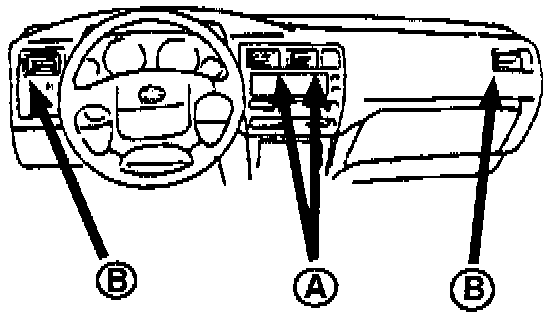

The Collar side for each Register is indicated by arrows as shown in the illustration. The center (A) registers are easily removed by prying first, with the screwdriver, on the Collar side. The outer (B) Registers should be pried first on the sides without the Collar.

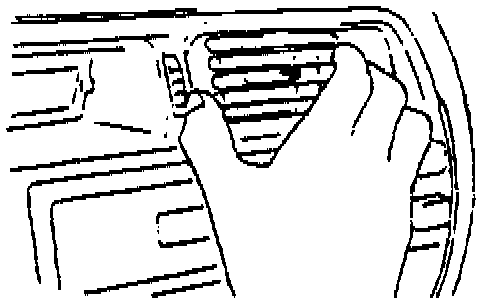

3. Insert the Register as shown in the illustration.

NOTE:
Make sure the Collar is seated correctly in the Register as indicated in the illustration.

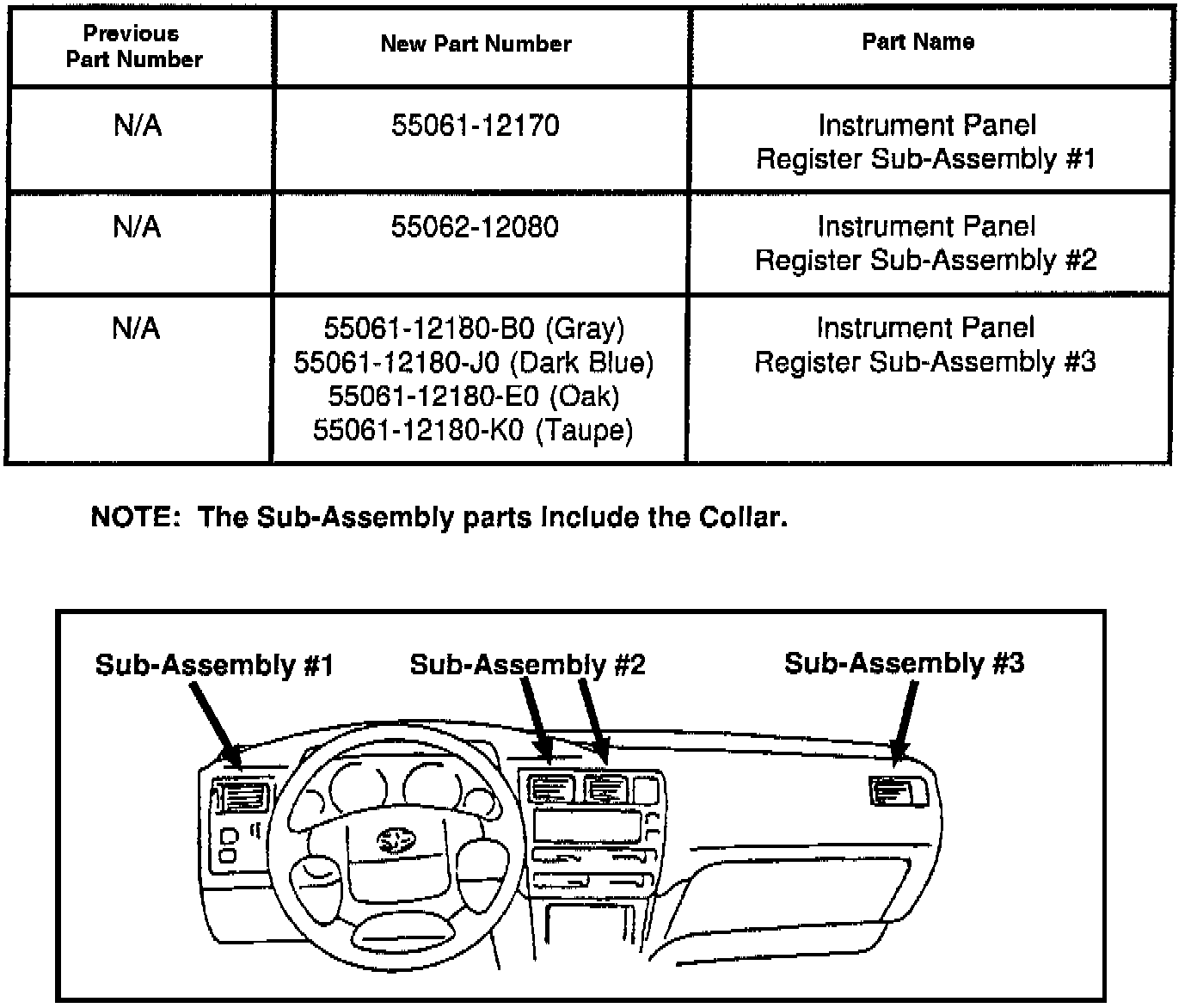

Part Number Information
