Problem Symptom Table

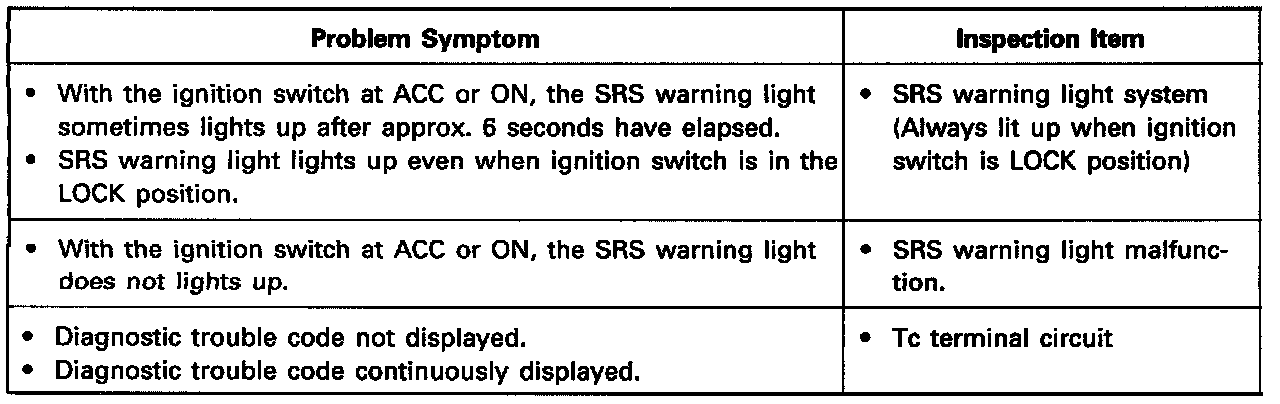

PROBLEM SYMPTOM CHART
Proceed with troubleshooting of each circuit in the table above.
