Flow of Diagnosis
>>

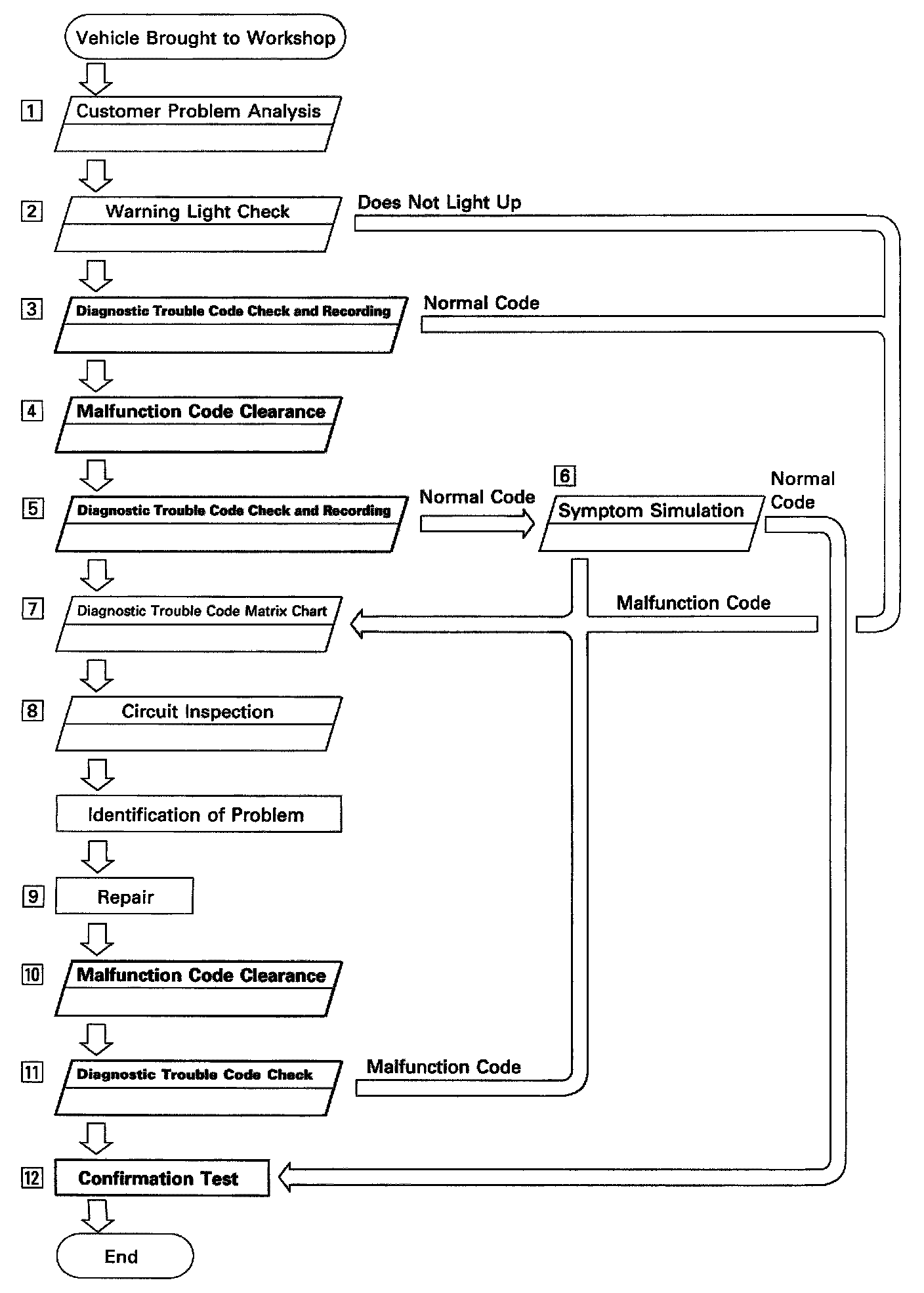

Flow Chart
Flow Chart
Steps 3, 4, 5, 10, 11, 12: Diagnostic steps permitting the use of the TOYOTA hand-held tester.
