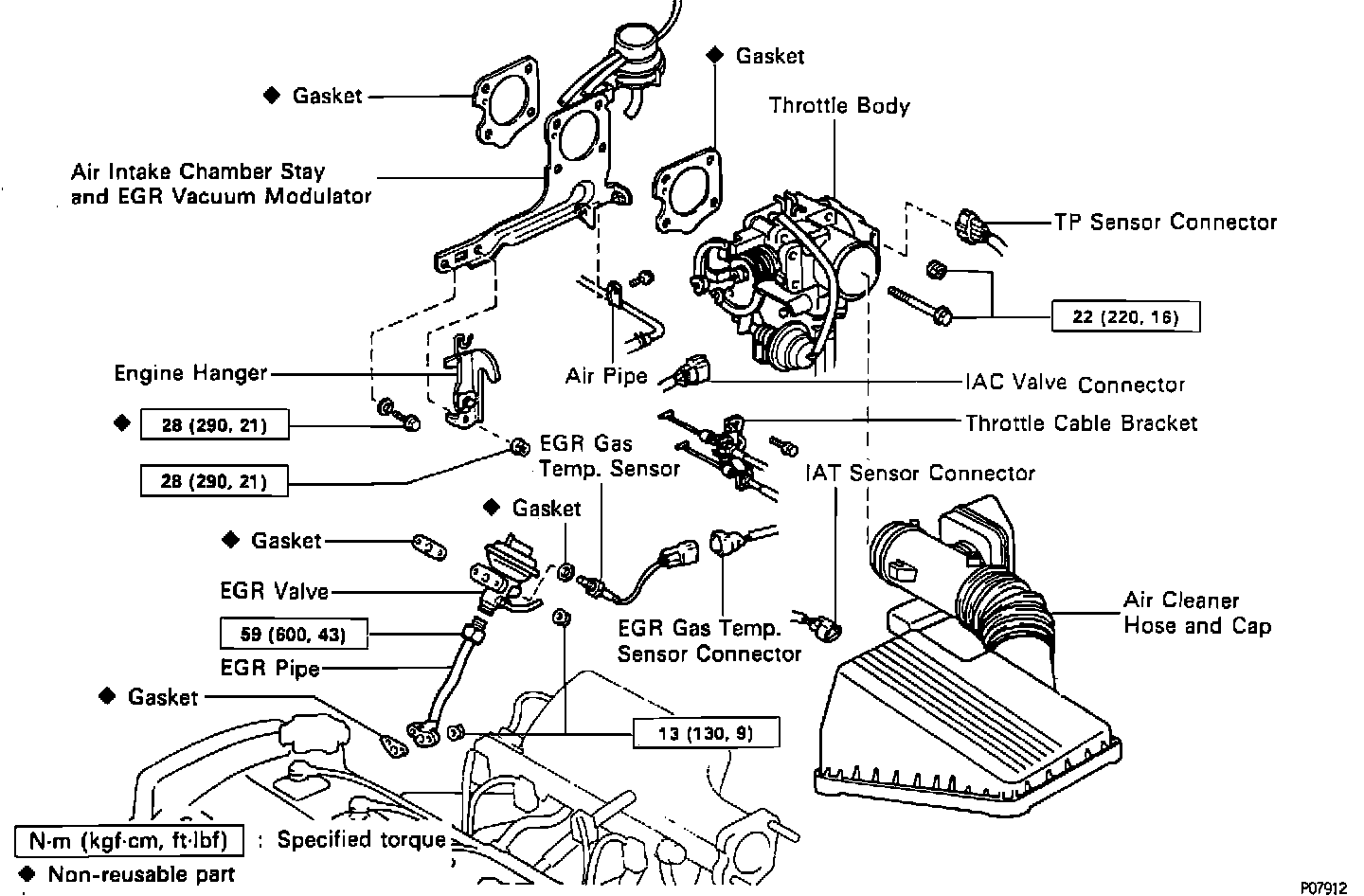

Removal

EGR Removal:

1. Disconnect negative battery terminal.

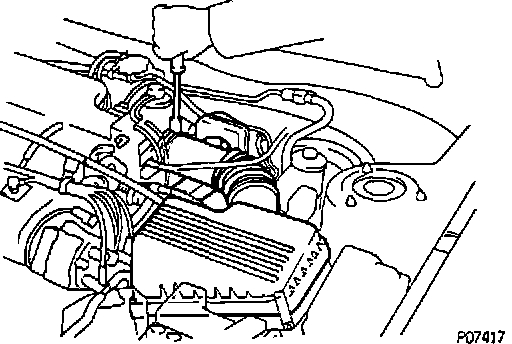

Removing Air Intake Hose:

2. Disconnect intake air temperature sensor electrical connector.
3. Loosen intake hose clamp.
4. Remove air cleaner securing clamps.
5. Remove air cleaner cover and intake hose.

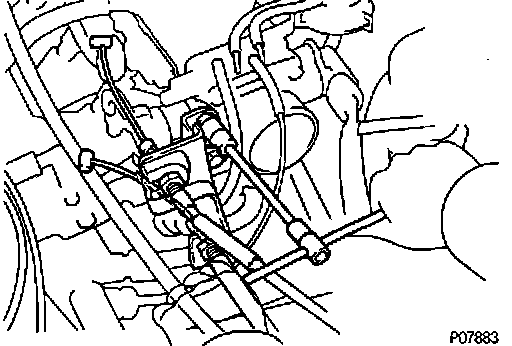

Throttle Cable Removal:

6. Disconnect accelerator cable from throttle chamber.
7. Disconnect transmission throttle cable in equipped.
8. Remove bolts and cable bracket.

Throttle Body Vacuum Hoses:

9. Disconnect EGR vacuum hoses.
10. Remove fuel evaporation hoses.
11. Disconnect throttle position sensor electrical connector.
12. Disconnect idle air control valve electrical connector.

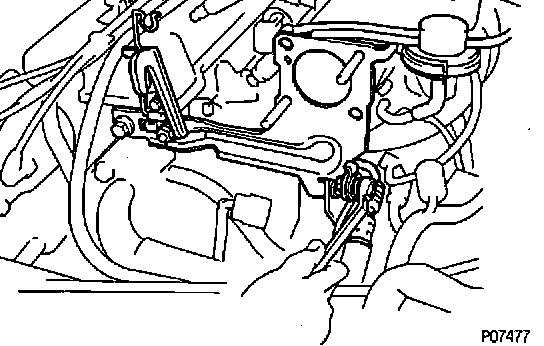

Throttle Body Removal:

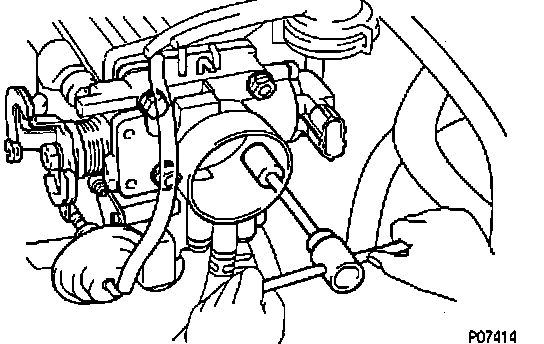

13. Remove securing bolts and nuts.
14. Remove throttle body and gasket.

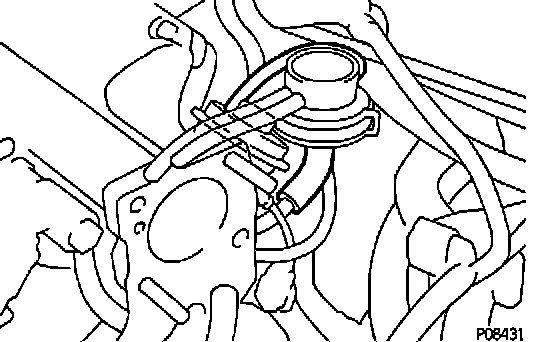

Vacuum Modulator:

15. Disconnect vacuum modulator hoses.

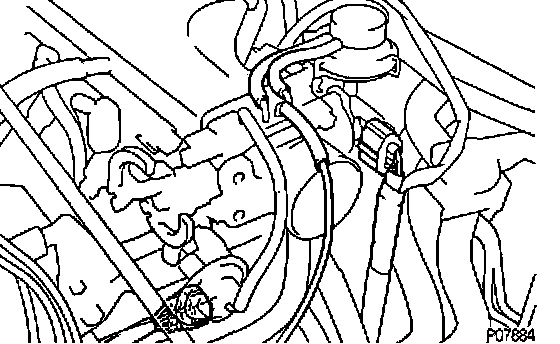

Air Chamber Support:

16. Remove air chamber stay and fuel inlet hose hold-down.
17. Remove engine support hook.
18. Remove vacuum modulator.

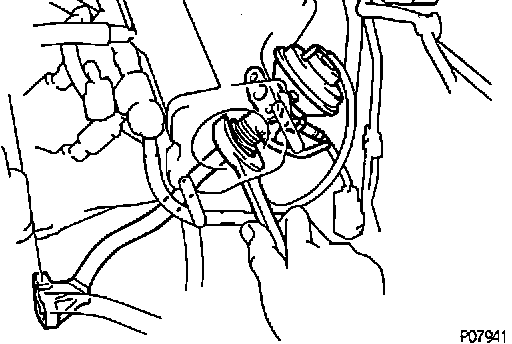

EGR Removal:

19. Loosen EGR to tube union nut.

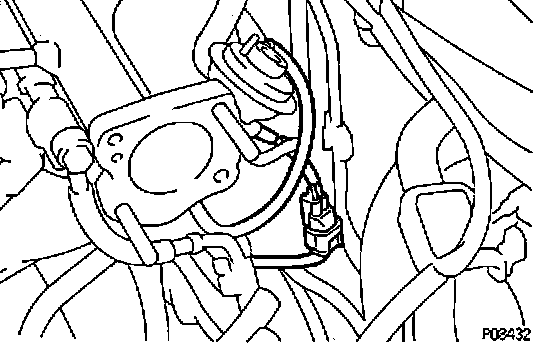

EGR Vacuum Lines:

20. Remove any remaining EGR vacuum lines.
21. Disconnect EGR temperature sensor electrical connector.

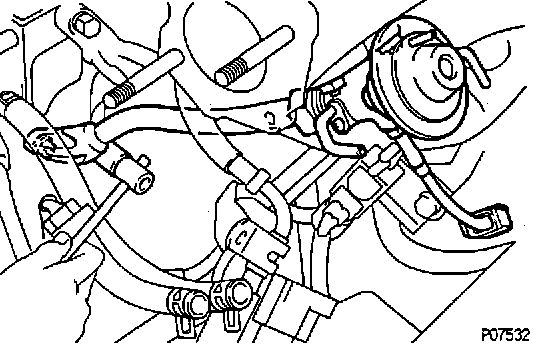

EGR Removal:

22. Disconnect tube and EGR mounting nuts.
23. Remove tube and EGR valve as a unit.
24. Remove and discard gaskets.
